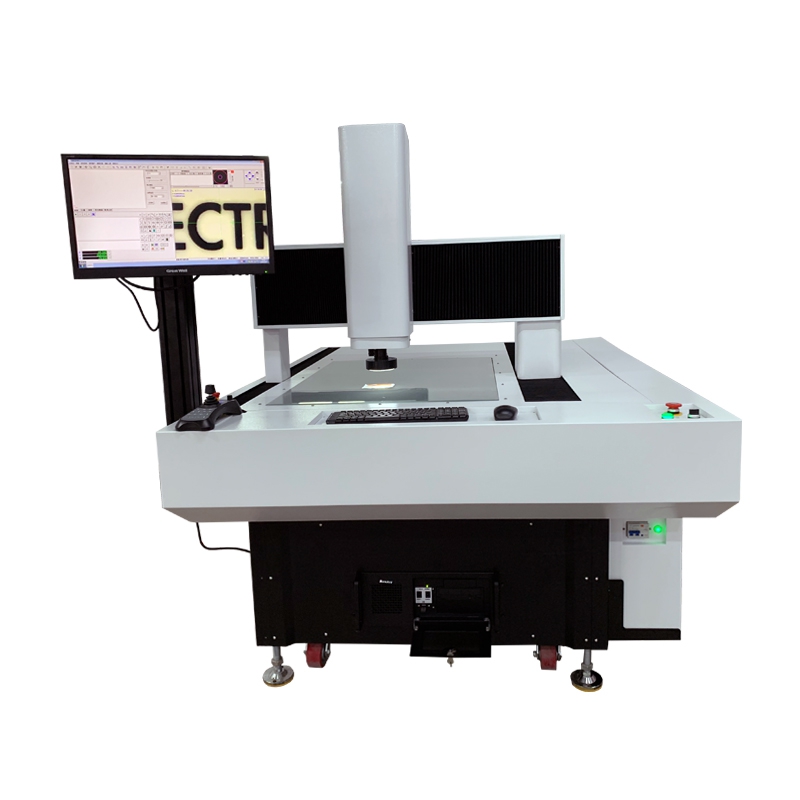

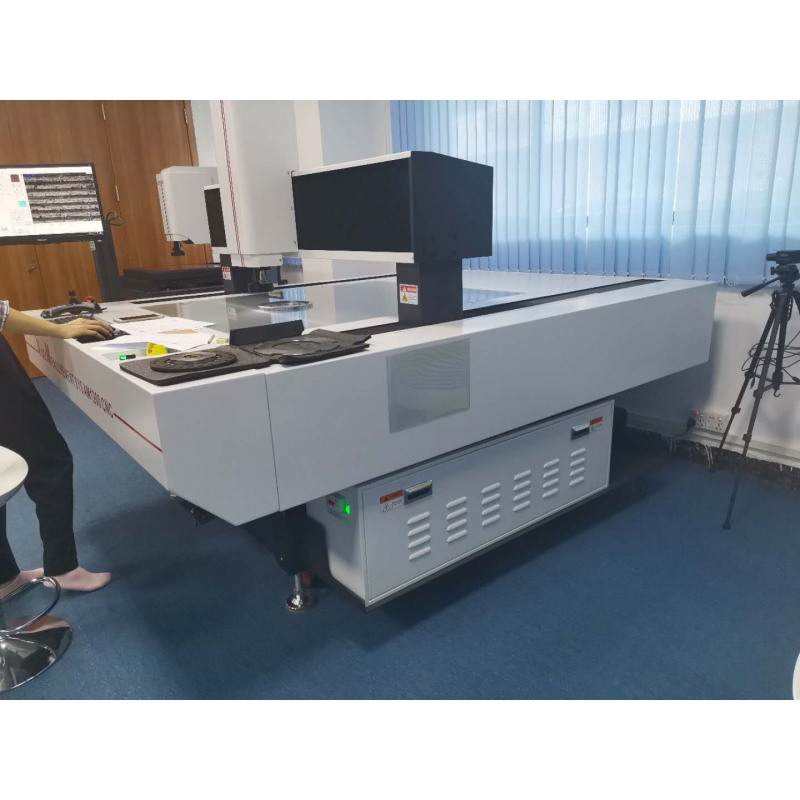

ZT-6007 Auto Gantry CMM Coordinate Measuring Machine
Technical Parameters:
|
Model |
AM500 |
AM600 |
AM800 |
AM1000 |
|
|
Measuring Range (mm) XYZ |
500*400*200 |
600*500*200 |
800*600*200 |
1000*800*200 |
|
|
Weight (kg) |
1100 |
1450 |
1800 |
3300 |
|
|
loadweight (kg) |
30 |
30 |
30 |
30 |
|
|
X, Y axis precision(μm) |
3.0+L/200 |
||||
|
Z axis accuracy (μm) |
5.0+L/200 |
||||
|
repeatability (μm) |
0.003 |
||||
|
X, Y axis movement speed |
0-600mm/S(can optional) |
||||
|
Z axis movement speed |
0-100mm/S(can optional) |
||||
|
operating way |
Rocker + software |
||||
|
Grating ruler |
“RENISHAW” metal linear scale with resolution 0.001mm |
||||
|
Guide |
Taiwan "silver" SP ultra-precision level (parallel degree of accuracy of 0.003) mm or less (walking) linear guide |
||||
|
Screw |
Taiwan TBI" grinding ball screw |
||||
|
Bearing |
Japan‘s original "NSK" double combination centripetal ball bearings |
||||
|
Motor |
"Panasonic" ac synchronous servo motor, positioning accuracy with 0.002 mm or less |
||||
|
Motion controller |
SBK4000 (full closed loop controller) |
||||
|
Photoelectric limit switch |
Japan‘s original "omron" photoelectric limit switch |
||||
|
Rocker |
Germany type "MEGATRON" hall style three-axis joystick |
||||
|
Camera |
SBK - HC600 1/2 inch 700 line color high definition camera (with the white balance function) |
||||
|
video card |
Beijing "it" high-resolution dual color video card |
||||
|
Lightsource |
Profile illumination |
LED cold light source, light transmitted light with focusing lens to achieve parallel light exposure |
|||
|
Surface illumination |
4 ring 8 partition LED cold light source, software control, reduce the damage of electrical components. |
||||
|
Optical lens |
Continual zoom step lens 1:6.5 |
||||
|
Magnification |
Optics magnification :0.7 ~ 4.5 x; Image magnification: 24 ~ 158 x |
||||
|
Software |
SBK - special CNC automatic measurement software |
||||
|
Power |
220 V/ 50 Hz /3 A |
||||
|
Working environment |
Temperature: 20 ℃±2 ℃, temperature change <2 ℃/ hr, Humidity:30 ~ 80% |
||||
|
Special table for machine |
built-in switching power supply, controller, motor drive, power supply control switch, indicator light, abrupt stop switch, move the wheel |
||||
|
Warranty period |
12 months |
||||
Main features:
♦ High performance Panasonic servo motor motion device to ensure high mute, high precision and high repeatability under high speed operation
♦ TPI precision screw, which makes the measurement positioning accuracy accurate and reliable, and the positioning accuracy can reach 0.001mm
♦ The column and base are made of high-precision granite structure, which is stable and reliable.
♦ Equipped with SBK-CNC multi-function measurement software to increase the measurement speed by 2 times than the AC series automatic image measuring instrument.
♦ Imported German "RSF" 0.0005mm metal grating, measuring data more stable and high precision
♦ Measurement data can be imported into Word, Excel, AutoCAD, and report output functions, and easy to output test results.
♦ With automatic contour scanning, contour tracking, automatic product shape scanning and other functions.
♦ Three-axis adopts Taiwan Shangyin precision linear slide rail and TBI high-precision ball screw to ensure machine accuracy and service life.
♦ CNC high-definition automatic zoom navigation lens and 130W digital CCD.
