Product overview:
Mainly for: rubber, plastic, wire and cable, tires, glass, hard alloy, metal products, jewelry industry, powder metallurgy, precision ceramics, refractory material, magnetic material, alloy materials, machinery parts, minerals and rocks, cement manufacturing, metal recycling, chemical solution, modern energy, fuel oil, fine chemicals, chemical reagent, chemical research laboratories, new materials research laboratory. Measurement of the density of adaptation in the field of quality management, formulation, cost control, density of etc.
Using the Archimedes principle, according to ASTM D792, ASTM D297, GB/T1033, GB/T2951, GB/T3850, GB/T533, HG4-1468, JIS K6268, ISO 2781, ISO 1183, GB/T 611, GB/T11540, GB/T12206, GB/T5518... Standard Specification for.

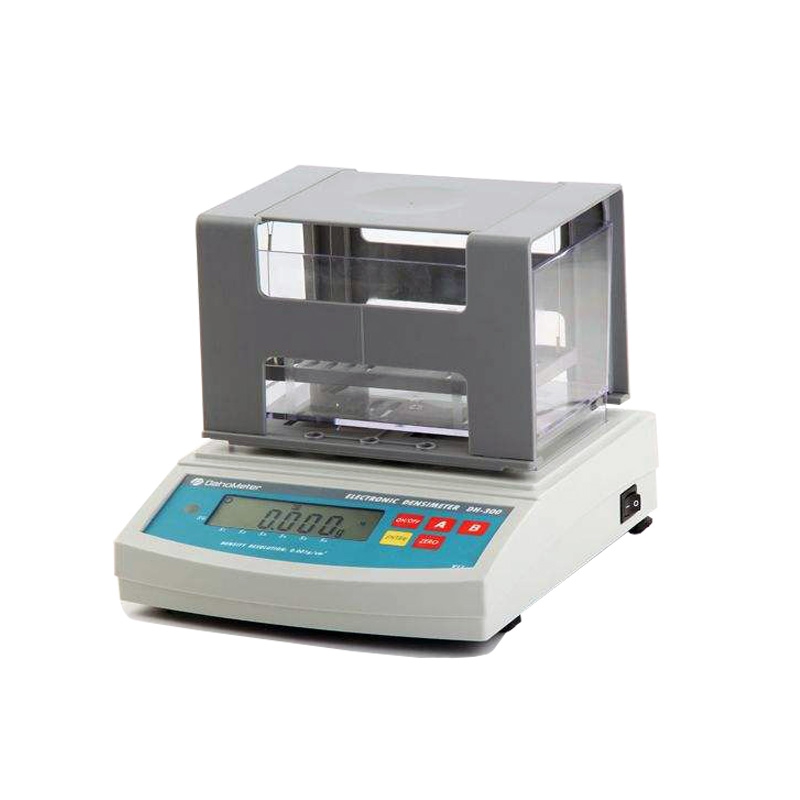

Economic solid liquid densitometer is currently the most widely used range of the solid liquid dual-purpose densimeter, solid equipped with measuring accessories professional, high transparent integrated injection molding water tank corrosion abrasion resistant and fall. The liquid is equipped with stainless steel measuring frame, a standard measurement of weight, design more humane. Has the characteristics of accurate measurement, simple operation, stable and durable. The allocation of special windproof dust proof cover, convenient combination, durable; with RS-232C communication interface, convenient connection between the PC and the printer, optional DE-40 printer print measurement data. In addition to general DH-300X measurement of solid and rubber particle density, it also can measure the powder and liquid density, complete functions, wide range of application.
Specification:
|
Measuring range |
0.005~300g |
0.005~600g |
|
|
Density accuracy |
0.001 g/cm3 |
||
|
Density range |
0.001—99.999g/cm3 |
||
|
Solid model
|
Measurement of solid type |
Any form of solid density -- all kinds of metal products, rubber products, plastic products, plastic particles, film, floating body, powder, foam, dope, fasteners, pipe, sheet metal, wood, glass, metal, sponge product state |
|
|
Measurement model |
Archimedes‘ principle of solid universal test method |
||
|
Test time |
About 5s |
||
|
Memory Mode |
Two step memory mode |
||
|
Measuring the proportion of aircraft |
One injection molding professional gravity measurement frame(17.6*10.5*11.1cm L*W*H) |
||
|
Measuring sink |
One injection molding professional transparent sink(16.9*9.8*8.3cm L*W*H) |
||
|
results |
Density, volume, content percentage |
||
|
Feature set |
Water temperature setting, the density of the measured medium setting, the density of material main material and secondary materials |
||
|
Material mixing percentage |
Features |
Automatically reads the percentage of two main substances mixed material |
|
|
Set up |
Can be set freely material master, material density times |
||
|
Display |
Density value, main material mixing ratio |
||
|

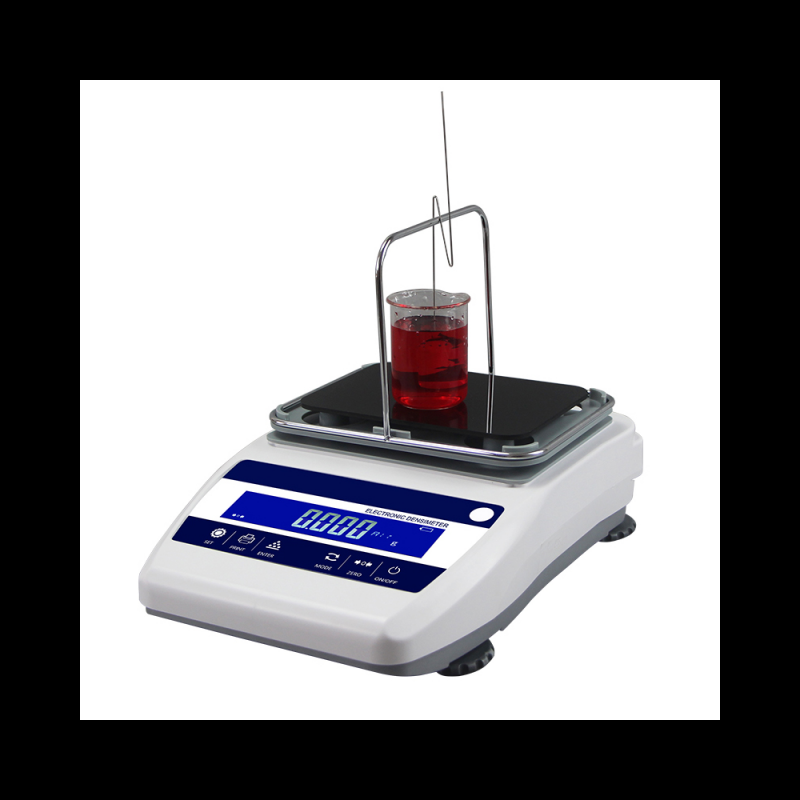

Fluid model |
Measuring the liquid type |
A: liquid liquid, viscous liquid, volatile liquid, corrosive, high temperature liquid, suspended liquid, emulsion. B: alcohol, flux, essence, blood, sodium chloride, glycerin, electrolyte, diesel oil, refrigerant, hydrofluoric acid, methylene chloride, ethyl ether, sulfate... And other similar liquid state are measurable |
|
|
The measuring principle |
Archimedes displacement method |
||
|
Measurement mode |
Group 1 |
||
|
Test time |
Immediate measure |
||
|
Memory Mode |
Dynamic Memory |
||
|
results |
Density values |
||
|
Function Setting |
Temperature setting, the solution density is set, the set standard value and the measured weight by weight of the water weight values |
||
|
Correction mode |
A single bond automatic correction, the automatic detection function |
||
|
Measurements uthentication |
Distilled water verification |
||
|
Output |
RS-232C standard communication interface to facilitate the test data output and print |
||
|
Standard Accessories |
Host a, tweezers, farmar, a thermometer, a, a, wind dust cover a, solid sink a, solid measuring table a, a set of particle measuring device, floating body parts of a set of measurement, liquid placed a boards, liquid measurement bracket a, DE - 20 - a standard liquid gauge component a, a power transformer |
||
|
Optional Accessories
|
1.DE-40 printer 2.DM-20B anti-corrosive liquid measurement components 3.DM-20A standard liquid measurement components |
||
|
Power |
AC~220V / 50HZ |
||
|
Output |
RS-232C standard communication interface to facilitate the test data output and print |
||
