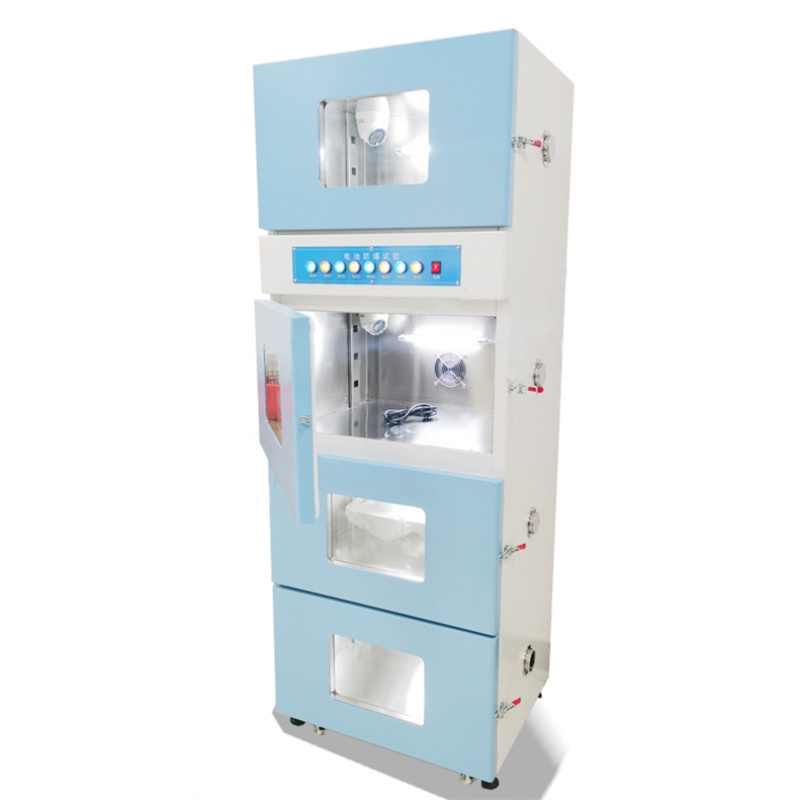

Machine introduce:
This testing machine is mainly used for overcharging and discharging batteries. During charging and discharging tests, the battery is placed in an explosion-proof box and connected to an external charging and discharging tester to provide protection for operators and instruments。
Meet standards:
IEC62133:2002,IEC61951-12003,IEC61951-2:2003,IEC61960:2003,GB8897.4-2002,GB8897.5-2006(IEC60086-5.2005) and so on.
Instrument features:
1. The machine adopts American DuPont powder and electrostatic spray painting process, which is cured at high temperature of 200 ℃ to ensure long-lasting color fastness
2. The mechanical components are composed of non corrosive structural aluminum and stainless steel materials
3. Safety devices: overtemperature alarm, overload protection, etc
4. Exhaust flue: Blade type design can adjust the air volume
5. Control formation: After the temperature reaches the set temperature, the time timer will automatically turn on. After the time reaches, the heating power will be cut off, and a beep will prompt
6. Air supply circulation system: Convective air supply circulation system
7. Control system: temperature to time, hour to stop, buzzer to stop
8. Equipped with three layers of explosion-proof window glass for safety protection of operators
Instrument parameters:
Number of layers |
1-4 layers (custom), with Teflon tape inside the box for effective insulation and flame retardancy |
Box material |
inner box made of stainless steel, outer box made of cold-rolled plate with paint treatment |
Box door |
single opening double layer door, equipped with silicone strip, with transparent observation window on the door |
Test hole |
diameter 50mm, located at the back of the box for easy passage of test connecting wires |
Exhaust fan |
located at the back of the box, with an exhaust port for easy smoke exhaust |
Lighting device |
High brightness explosion-proof lighting lamp |
Safety measures |
The door is connected to the box with a strong hinge, and an explosion-proof cold pull handle door lock is used |
Inner box size |
500*500*500mm (L*W*H) |
Outer box size |
530*530*1800mm(L*W*H) |
Weight |
160Kg |
Power supply |
AC220V, 50/60Hz |
