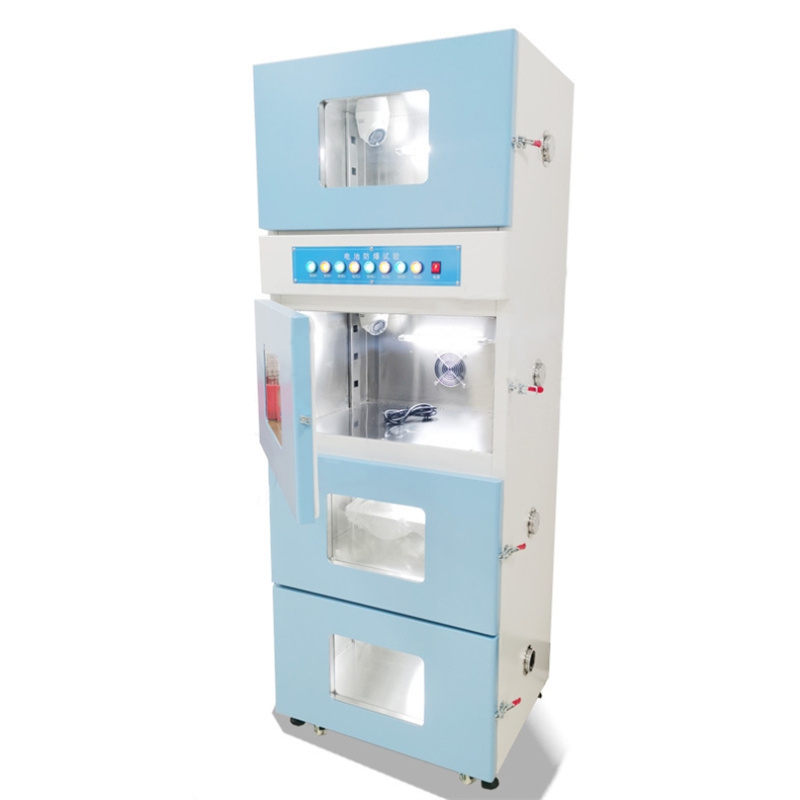

Battery Tester

This testing machine is mainly used for overcharging and discharging batteries. During charging and discharging tests, the battery is placed in an explosion-proof box and connected to an external charging and discharging tester to provide protection for operators and instruments。

Meet standards:

IEC62133:2002,IEC61951-12003,IEC61951-2:2003,IEC61960:2003,GB8897.4-2002,GB8897.5-2006(IEC60086-5.2005) and so on.

Instrument features:

1. The machine adopts American DuPont powder and electrostatic spray painting process, which is cured at high temperature of 200 ℃ to ensure long-lasting color fastness

2. The mechanical components are composed of non corrosive structural aluminum and stainless steel materials

3. Safety devices: overtemperature alarm, overload protection, etc

4. Exhaust flue: Blade type design can adjust the air volume

5. Control formation: After the temperature reaches the set temperature, the time timer will automatically turn on. After the time reaches, the heating power will be cut off, and a beep will prompt

6. Air supply circulation system: Convective air supply circulation system

7. Control system: temperature to time, hour to stop, buzzer to stop

8. Equipped with three layers of explosion-proof window glass for safety protection of operators

Instrument parameters:

Number of layers	1-4 layers (custom), with Teflon tape inside the box for effective insulation and flame retardancy
Box material	inner box made of stainless steel, outer box made of cold-rolled plate with paint treatment
Box door	single opening double layer door, equipped with silicone strip, with transparent observation window on the door
Test hole	diameter 50mm, located at the back of the box for easy passage of test connecting wires
Exhaust fan	located at the back of the box, with an exhaust port for easy smoke exhaust
Lighting device	High brightness explosion-proof lighting lamp
Safety measures	The door is connected to the box with a strong hinge, and an explosion-proof cold pull handle door lock is used
Inner box size	500*500*500mm (L*W*H)
Outer box size	530*530*1800mm(L*W*H)
Weight	160Kg
Power supply	AC220V, 50/60Hz
