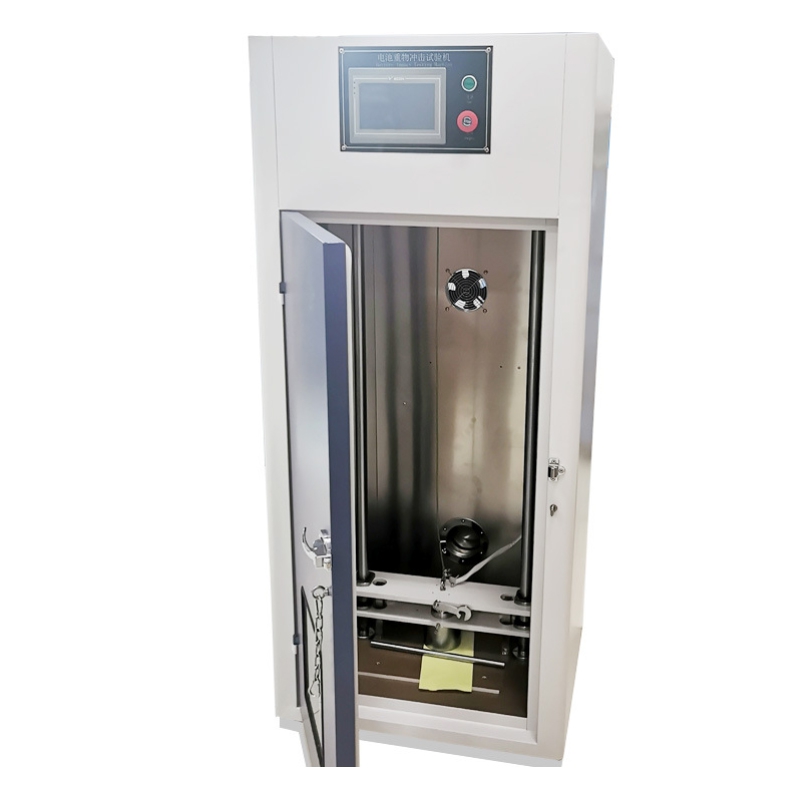

Battery Tester

The sample battery should be placed on a flat surface, crossed with a metal rod with a diameter of 15.8mm (5/8 inches), and placed at the center of the sample. A 9.1kg weight dropped from a certain height of 610+25mm onto the sample, and the impact resistance of the sample was observed。

IEC62133, UN38.3, UL1642:1995, UL2054:1997, GB/T18287-2000, GB8897.4-2002 and so on.

Ball weight	9.1kg or 10kg
Impact height	610mm or 1000mm
Test steel rod	15.8mm
Height display accuracy	1mm
Pressure relief device	located at the back of the box, which can effectively relieve pressure and explosion
Lighting device	LED high brightness explosion-proof lighting lamp
Impact method	Lift the impact weight to a certain height and release it, and the weight will fall freely in the vertical direction
Inner box material	SUS201 stainless steel plate
Outer box material	cold-rolled steel plate with paint treatment
Exhaust fan	located on the back of the box, with a diameter of 120mm and reserved exhaust duct
Box door	single open double layer door, tempered glass observation window, cold pull handle door lock
External dimensions	680 * 830 * 1600mm（L*W*H)
Weight	130kg
Power supply	AC220V 50/60Hz
