Introduction:

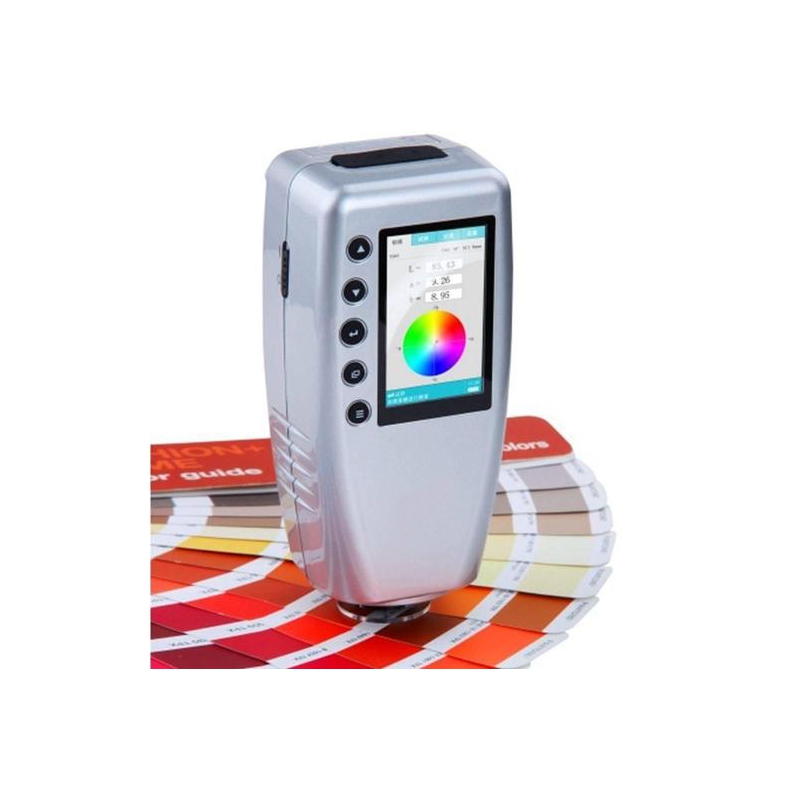

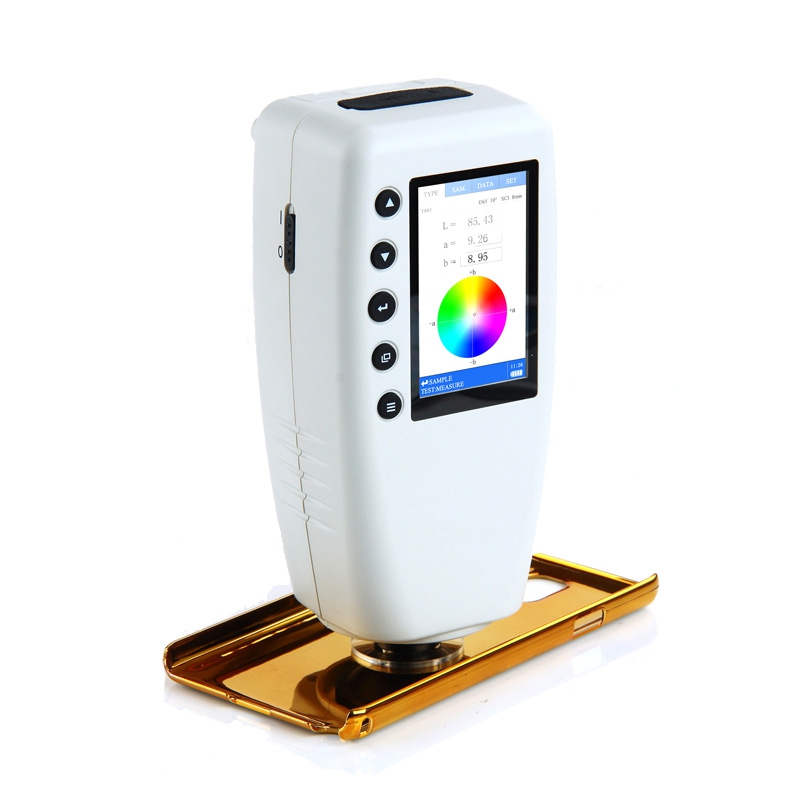

Hand-held colorimeter is years of painstaking development of the high-precision colorimeter, serially developed according to the measuring requirements on different products and gain many optimal achievements with cost performance. It can be applicable in textile, printing and dyeing, clothing, footwear, leather, chemicals, plastics, film, pigments, paints, inks, metal, photography, toys, food medicine and other liquid, powder and special industry for color quality control, color analysis, sample testing, production line testing, also suitable for injection molding, ink, paint, spray and other color industries. Also extensive used in researching institution and laboratory. It can precisely measure kinds of color index in color space, help to analyze color matching freely and color management, with color analysis software, it will extend more functions.
Measuring Area Application:
Caliber 4mm is specially design, considering small area and curvature measurements. It is suitable for measuring small device, gadget, small parts etc.
Caliber 8mm version is a general-purpose color difference meter, mostly used on flat surface materials. It provides great convenience and trustworthy reliability for its versatility, tiny table difference, and stability.
Caliber 40mm can be used for huge textured, uneven and pitting surface, also wet sample, like meat, fish...
Advantages:
1. WR18 can connect with PC, color analysis software is easy to display data and print test results etc.
2. WR18 is with 4mm, 8mm and biggest 40mm alternative aperture, to meet different surface measurement demands.
3. Convenient: automatic correction when starting up, no need to do calibration manually each time. (national patent).
4. Comfortable: observation with real color screen display, handheld and exquisite.
5. Cost-efficient: good performance, stable measurement, low cost.
6. Configuration: rechargeable, high capacity lithium battery.
7. CE & RoHS certification.
Data sheet:
|
Model |
ZT-1604 Color Meter |
|
Color Space |
CIELAB CIELCH CIEXYZ sRGB |
|
Color Difference Formula |
ΔE*ab ΔE*LCH |
|
Measurement Caliber |
Φ4mm/φ8mm, φ40mm (Optional) |
|
Illumination Condition |
CIE Recommendation:8/d |
|
Light Source |
D65 A F(CWF) |
|
Sensor |
Photodiode array |
|
Observer |
CIE 10° Standard observer |
|
Measurement Range |
L: 0 to 100 |
|
Repeated Accuracy |
ΔE<0.06 |
|
Table Difference |
ΔE<0.2 |
|
Measurement Interval |
0.5 Sec. |
|
Storage Capacity |
Type sample data:100 groups with testing sample data: 200 groups |
|
Lifetime of Bulb |
5 years more than 1.6 million measurements |
|
Display Screen |
TFT true color 2.8inch@(16:9) |
|
Language |
English/Simplified Chinese |
|
Interface of External |
USB2.0 (USB-B) RS-232 (115200bps) |
|
Working Temperature |
0℃-40℃(32℉-104℉) |
|
Storage Temperature |
-20℃-50℃(-4℉-122℉) |
|
Humidity Range |
Relative humidity less than 85%,without condensation |
|
Weight |
700g |
|
Size |
199*68*90mm |
|
Battery Charging Time |
8 hrs |
|
Battery |
Li-ion battery, 5000 times Measurement |
|

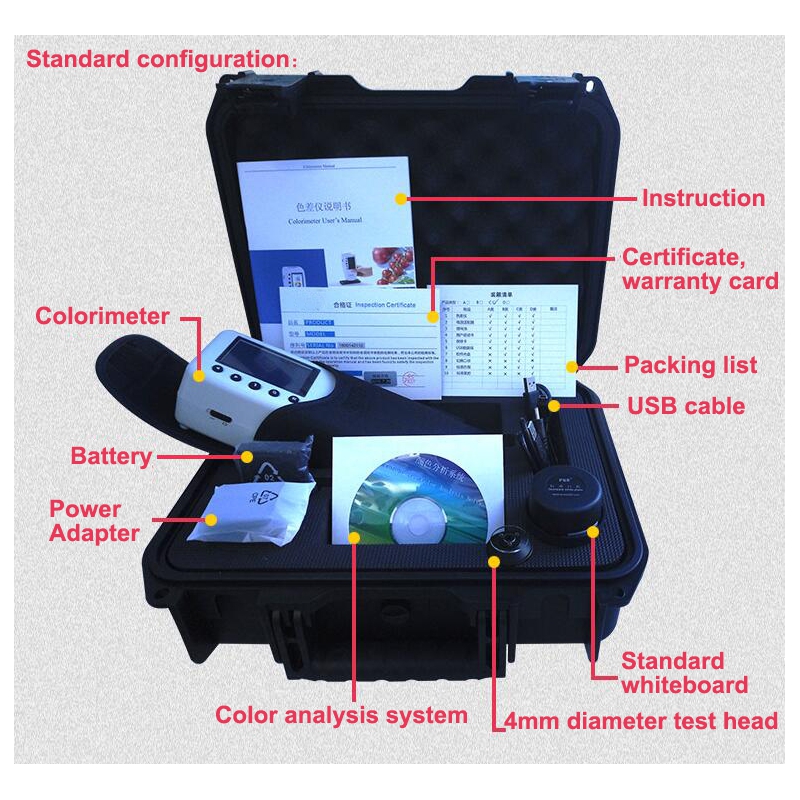

Standard Accessories |
AC adapter/ 3000mAH Li-ion battery/User manual/Warranty card/USB data line/ Color-analysis software/White board |
|
Optional Accessories |
Flour measuring device/Micro printer/liquid, powder, pulp accessory |
