Aperture (caliber) Application:
1) Big apertures like WG60, WG60T, WG60A & WG68 are normally used on flat or wide arc surface samples.
2) While if your sample is cambered or small parts, please don’t worry, WG60G with small aperture (1*3mm) can easily solve your problem.

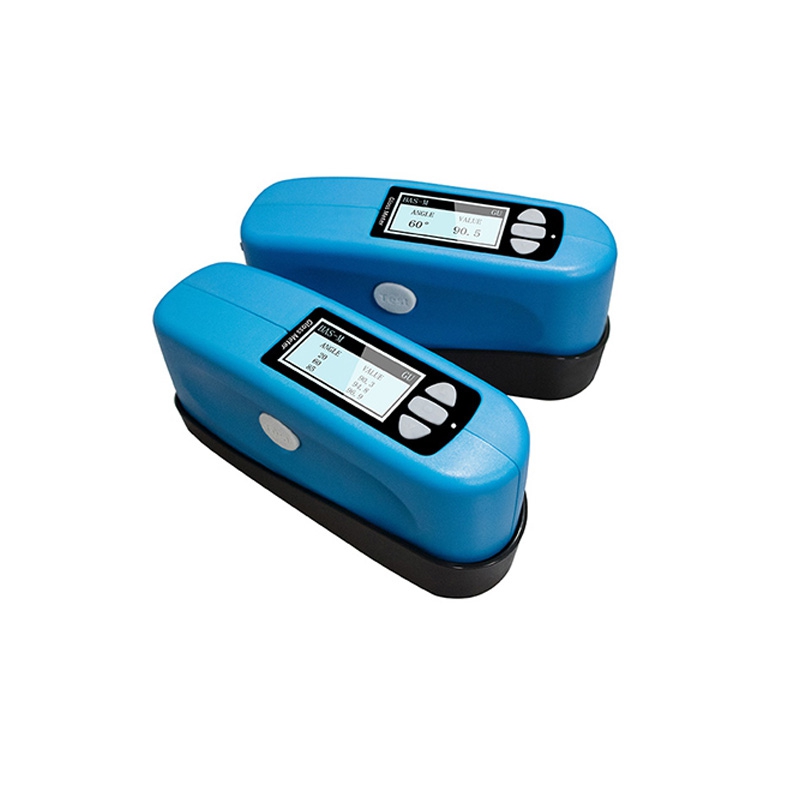

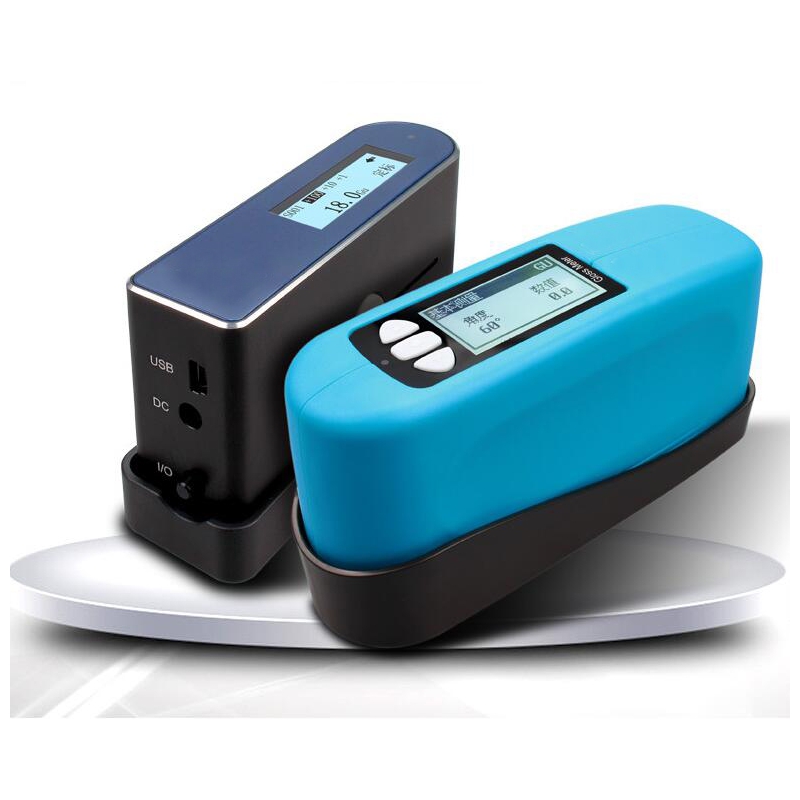

Gloss meter can be applicable in coatings, printing ink, paint, paint, wood, marble, granite, polishing brick, brick of pottery and porcelain, plastic, paper, metal and non-metallic materials, stoving varnish, vitrified polished tile.
Data sheet:
| Model | ZT60A |
|
Measurement Range |
|
|
Application |
Apply on paint, ink, stoving varnish, coating, wood products; Marble, granite, vitrified polished tile, pottery brick and porcelain; Plastic, printing, paper; Other metallic material. |
|
Projection Angle |
|
|
Measuring Spot |
14*61mm |
|
Measuring Mode |
Automatic/ manual /single /average and combination angle Show maximum/minimum value |
|
Standard Sample Setting |
Manually setting/bring out stored data for setting/manually setting tolerance |
|
Data Storage |
10000 groups |
|
set standard sample in any stored data, user-define the tolerance range |
|
|
Language |
Chinese/English |
|
Output |
Software to PC |
|
Division Value |
0.1Gu |
|
Repeatability |
0-100:0.2>100:0.2% |
|
Reproducibility |
0.2Gu |
|
Indication Error |
1.0Gu |
|
International Standard 60° |
ISO-2813/ASTM-C584/ASTM-D523/DIN-67530/ASTM-D2457/JND-A60/JND-P60/ISO7668 |
|
National Standard 60° |
GB 9754/GB 9966/GB 8807 - GB/T 9754,GB/T 13891,GB/T 7706,GB/T 8807 |
|
Working Temperature |
10℃ - 40℃ |
|
Storage Temperature |
-10℃ - 70℃ |
|
Humidity Range |
Relative humidity less than 85%, without condensation |
|
Volume |
159x49x72mm |
|
Weight |
500g |
|
Standard Accessories |
Add standard + 5V/usb cable/GlossW software |
