Aperture (caliber) Application:
Caliber 4mm version is a specially designed, suitable for small area, cambered and other special surface. It can bring great convenience to measure small devices, small parts and special type of arc.
Colorimeter Application:
Colorimeter can be applicable in textile, printing and dyeing, clothing, footwear, leather, chemicals, plastics, film, pigments, paints, inks, metal, photography, toys, food medicine and other liquid, powder and special industry for color quality control, color analysis, sample testing, production line testing, also suitable for injection molding, ink, paint, spray and other color industries.
Data sheet:
|
Model |
WF30 |
|
Display Mode |
CIELAB/CIELCH |
|
Color Difference Formula |
E*ab |
|
Yellowness and Whiteness |
/ |
|
Illumination Condition |
CIE Recommendation:8/d 45/0 Optional |
|
Light Source |
LED blue excitation |
|
Sensor |
Photodiode array |
|
Measurement Caliber |
φ4mm/φ8mm/φ16mm Alternative |
|
|
Observer:CIE 10° Standard observer Light source: D50 D65 F11(TL84) Contain light way:SCI SCE |
|
Measurement Range |
L: 0 to 100 |
|
Repeated Accuracy |
E<0.05(take the deviation average after 30 times measuring the whiteboard) |
|
Table Difference |
E<0.2 |
|
Measurement Interval |
0.5 Sec. |
|
Average Measuring Function |
/ |
|
Color Simulation Function |
/ |
|
Storage Capacity |
Standard data : 100 with testing sample data: 20000 |
|
Language Patterns |
English/Simplified Chinese |
|
Quality Control Software |
Color-Analysis System software |
|
Battery Charging Time |
8 hrs |
|
Battery |
Li-ion battery, 5000 times Measurement |
|
Lifetime of Bulb |
5 years more than 1.6 million measurements |
|
Display Screen |
TFT true color 2.8inch@(16:9) Resolution ratio:400x240 |
|
Interface of External |
USB2.0 (USB-B)- data communication with color analysis system software RS-232 (115200bps)- connected with micro printer |
|
Working Temperature |
0℃-40℃(32℉-104℉) |
|
Storage Temperature |
-20℃-50℃(-4℉-122℉) |
|
Humidity Range |
Relative humidity less than 85%,without condensation |
|
Weight |
700g |
|
Size |
199*68*90mm |
|

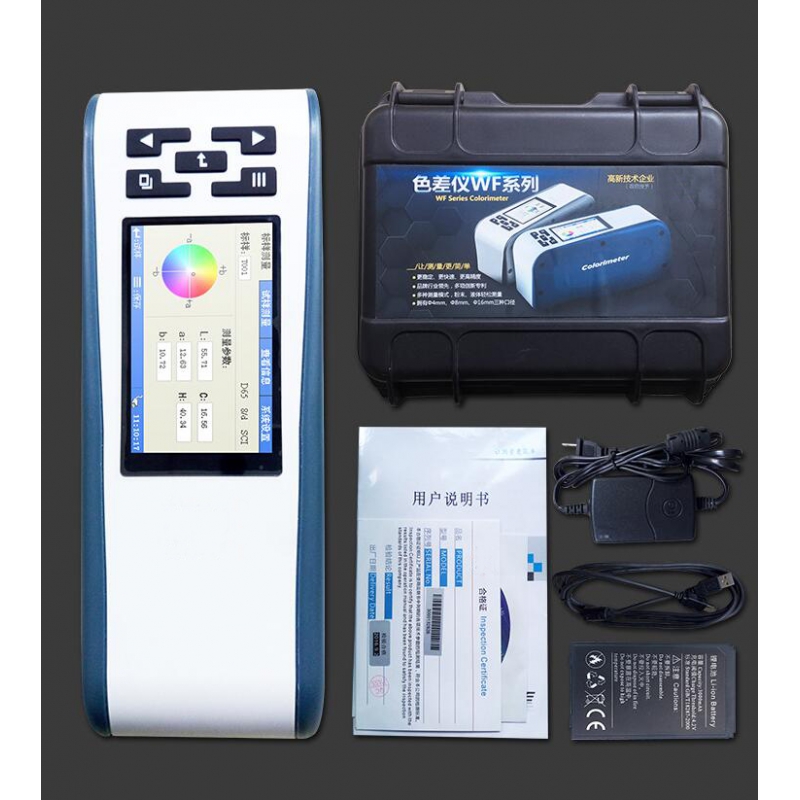

Standard Accessories |
3000mAH Li-ion battery/AC adapter/USB Data line/CD Color analysis software /User manual/Warranty card |
|
Optional Accessories |
Flour measuring device/Liquid measuring device/Micro printer |
