Aperture (caliber) Application:
Caliber 4mm version is a specially designed, suitable for small area, cambered and other special surface. It can bring great convenience to measure small devices, small parts and special type of arc.
Caliber 8mm version is a general-purpose color difference meter, mostly used on flat surface materials. It provides great convenience and trustworthy reliability for its versatility, tiny table difference, and stability.

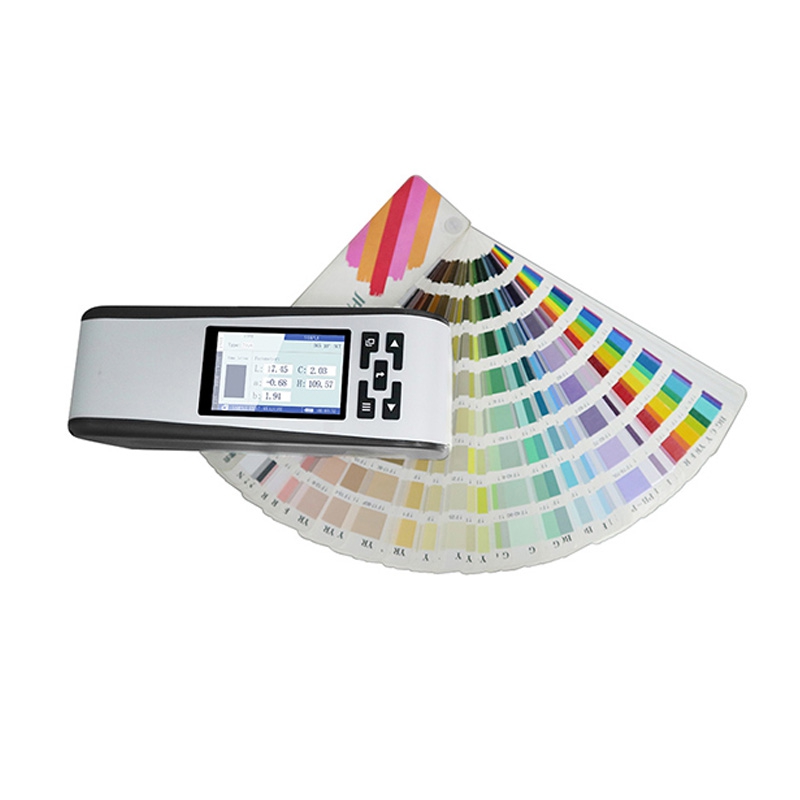

Caliber 16mm version is applied on special measurements, such as the textured object, pitting, grainy surface or relatively large size, flexible and soft wet sample.
Colorimeter Application:
Colorimeter can be applicable in textile, printing and dyeing, clothing, footwear, leather, chemicals, plastics, film, pigments, paints, inks, metal, photography, toys, food medicine and other liquid, powder and special industry for color quality control, color analysis, sample testing, production line testing, also suitable for injection molding, ink, paint, spray and other color industries.
Technical data sheet:
|
Display Mode |
CIELAB/CIELCH/CIEXYZ/CIELUV/HunterLAB/sRGB |
|
Color Difference Formula |
ΔE*ab/ΔECMC/ΔEISO/ΔECIE94/ΔEFCMⅡ/ΔELuv/ΔEhunter/ΔEs RGB |
|
Yellowness and Whiteness |
Ganci whiteness/ISO brightness/YI yellowness |
|
Illumination Condition |
CIE Recommendation:8/d |
|
Light Source |
LED blue excitation |
|
Sensor |
Photodiode array |
|
Measurement Caliber |
φ4mm/φ8mm/φ16mm Alternative |
|
Measurement Condition |
Observer:CIE 10° Standard observer Light source:A C D50 D65 F2(CWF) F7 F11(TL84)F12(U30) Contain light way:SCI SCE |
|
Measurement Range |
L: 0 to 100 |
|
Repeated Accuracy |
ΔE<0.03(take the deviation average after 30 times measuring the whiteboard) |
|
Table Difference |
ΔE<0.2 |
|
Measurement Interval |
0.5 Sec. |
|
Storage Capacity |
Standard data : 100 with sample data: 20000, Whiteness/yellowness data: 200 |
|
Language Patterns |
English/Simplified Chinese/Traditional Chinese |
|
Quality Control Software |
"Color-Analysis System" software |
|
Battery Charging Time |
8 hrs |
|
Battery |
Li-ion battery, 5000 times Measurement |
|
Lifetime of Bulb |
5 years more than 1.6 million measurements |
|
Display Screen |
TFT true color 2.8inch@(16:9) Resolution ratio:400x240 |
|
Interface of External |
USB2.0 (USB-B)- data communication with "color analysis system"software RS-232 (115200bps)- connected with micro printer |
|
Working Temperature |
0℃-40℃(32℉-104℉) |
|
Storage Temperature |
-20℃-50℃(-4℉-122℉) |
|
Humidity Range |
Relative humidity less than 85%,without condensation |
|
Weight |
700g |
|
Size |
199*68*90mm |
