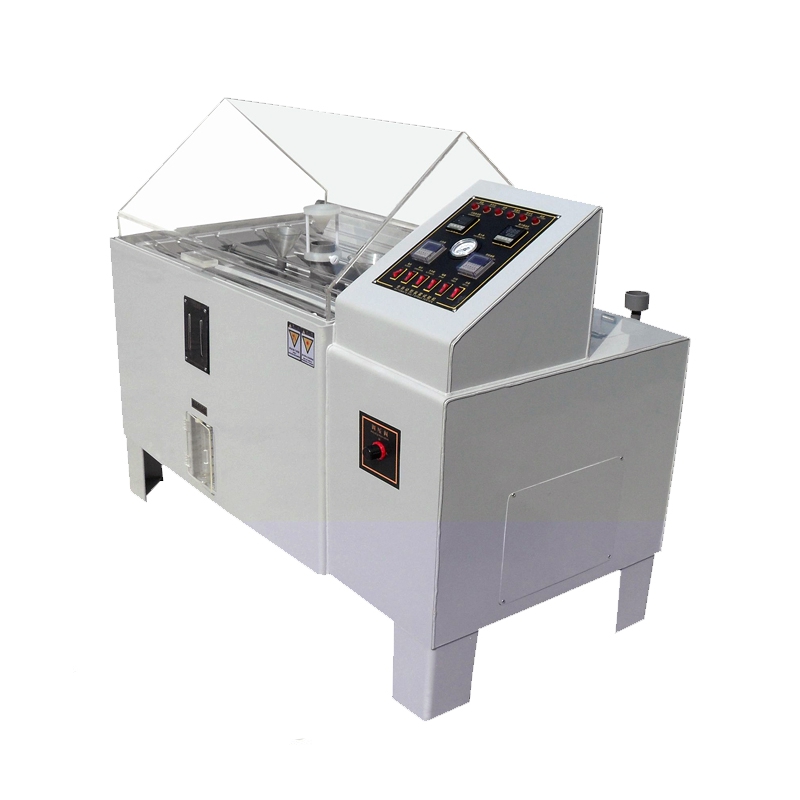

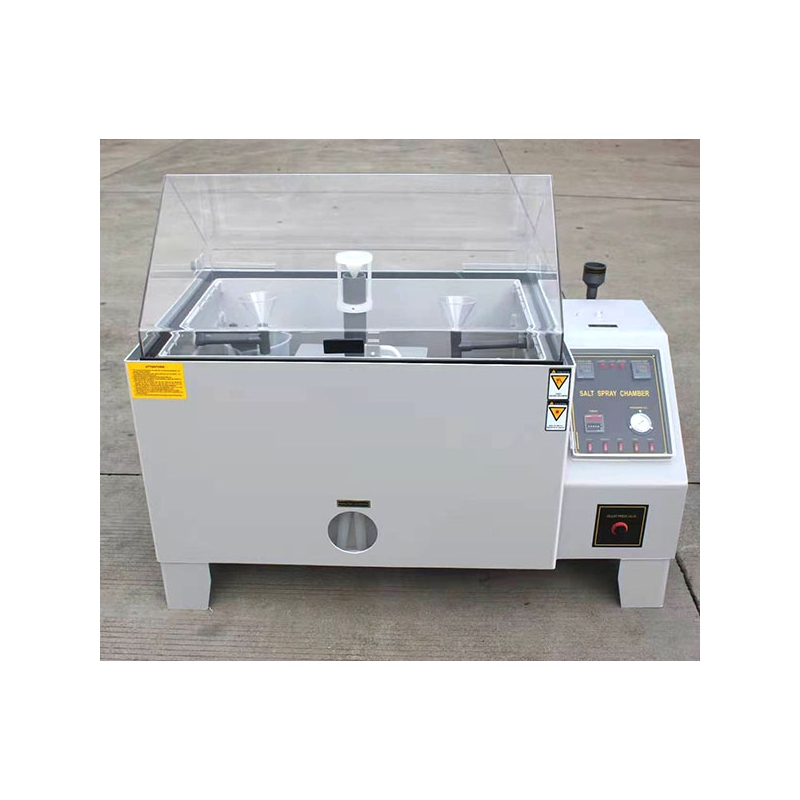

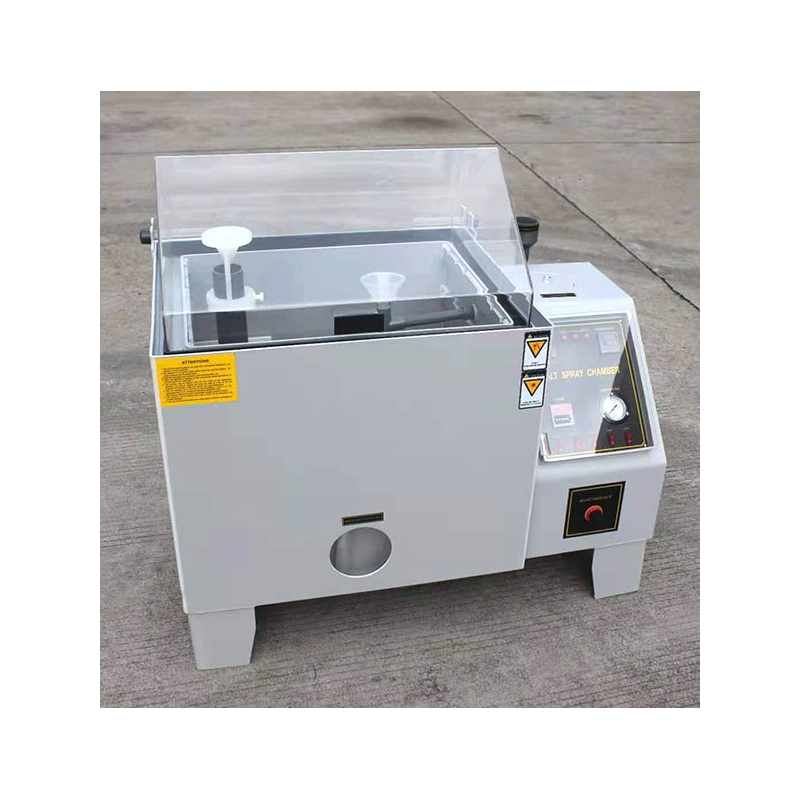

Economic Type Salt Spray Corrosive Resistance Test Equipment
Equipment summary:
Salt Spray Corrosive Resistance Test Equipment used to test the corrosive resistance of products whose the surface was treated with paint, electroplating, inorganic and organic film, anode handling, anti-rust oil,etc.
Technical parameters:
|
Model |
ZT-60 |
ZT-90 |
ZT-120 |
|
Inside box size(cm) |
60x45x40 |
90x60x50 |
120x80x50 |
|
Outside box size(cm) |
107x60x118 |
141x88x128 |
190x110x140 |
|
Testing room temperature |
Salt test (NSS ACSS)35℃±1℃/ Corrosion Test (CASS)50℃±1℃ |
||
|
Pressure barrel temperature |
Salt test (NSS ACSS)47℃±1℃/ Corrosion Test (CASS)63℃±1℃ |
||
|
Brine temperature |
35℃±1℃ 50℃±1℃ |
||
|
Testing room Capacity |
108L |
270L |
480L |
|
Brine tank capacity |
15L |
25L |
40L |
|
Salt concentration |
The concentration of sodium chloride 5% or the 5% concentration of sodium chloride add 0.26g per liter of copper chloride (CuCl2 2H2O) |
||
|
Air pressure |
1.00±0.01kgf/cm2 |
||
|
Spray volume |
1.0~2.0ml/80cm2/h (working at least 16 hours, and then take the average) |
||
|
Testing room relative humidity |
85% above |
||
|
PH |
6.5~7.2 3.0~3.2 |
||
|
Spray form |
Programmable spray (Including continuous and intermittent spray) |
||
|
Power |
AC220V1Φ10A |
AC220V1Φ15A |
AC220V1Φ20A |
