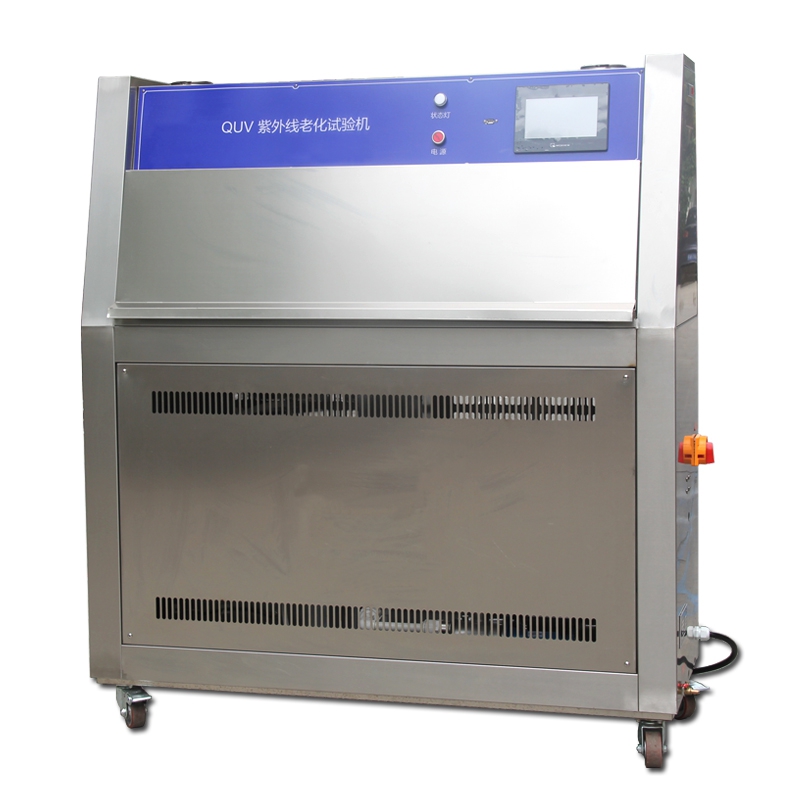

UV Ultraviolet Accelerated Weather Resistance Aging Test Equipment
Equipment Summary:
UV aging testing machine can simulate the sun, rain and dew to damage the material, equipment using UV lamp simulate the effect of sunlight, cold rain and dew. Being tested materials are placed in a certain environment which the light and moisture are alternating. The materials are tested for several days or weeks, you can know the damage of material at outside for several months or several years, Damage types include: bleaching, discoloration, loss of light, powder, crack, turbidity, bubble-based, embrittlement, strength decline and oxidation.
Standard:
With ASTMG53-77, ASTM G154,GB﹑GJB﹑MIL﹑CNS﹑IEC﹑JIS﹑AATCC﹑DIN﹑Fed Test﹑BS﹑SAE
Technical Parameter:
|
Model |
ZT-4006 QUV aging testing machine |
|
Lamps |
UV Lamp 8 (,UVA340,UVB313,UVC351) |
|
Dimensions WxHxD (cm) |
1300×500×1400mm |
|
Illumination temperature range |
RT+10℃~70℃ Irradiation |
|
Blackboard temperature |
50℃~70℃ Condensing |
|
Temperature range |
40 ℃ -60 ℃ |
|
Temperature uniformity |
±1℃ |
|
Temperature fluctuation |
±0.5℃ |
|
Center distance in the tube |
70mm |
|
Distance between the sample and the center of the lamp tube |
50±3mm |
|
Temperature sensor |
Platinum resistance. PT100Ω |
|
Controller |
South Korea TEMI touch screen controller |
|
Ultraviolet wavelength UV-A wavelength range |
320~400nm |
|
Irradiation intensity |
within 1.0W/m2/340nm |
|
Lamp life |
within 1200h |
|
Test capacity |
75 x 150mm 48pcs |
|
Test time |
0~999H (adjustable) |
|
The sink requires |
water depth is not more than 50mm, and there is an automatic water supply controller Inner box material |
|
Machine material |
SUS 304# mirror stainless steel plate Outer box material The whole machine is SUS 304# stainless steel plate with matte surface treatment |
|
Heating system: |
fully independent system, stainless steel electric heating tube |
|
Humidification system |
external isolation type, all stainless steel shallow surface evaporative humidifier |
|
Protection device |
Non-fuse switch, over-temperature protection switch, fuse, fault warning system |
|
Power supply |
220V±5%, single-phase three-wire, 50Hz, 10A, 15A leakage switch required |
|
Weight |
130KG |
|
Recommended environment: 5~35℃, 40%~85%R•H, 300mm away from the wall |
|
