Product Description:

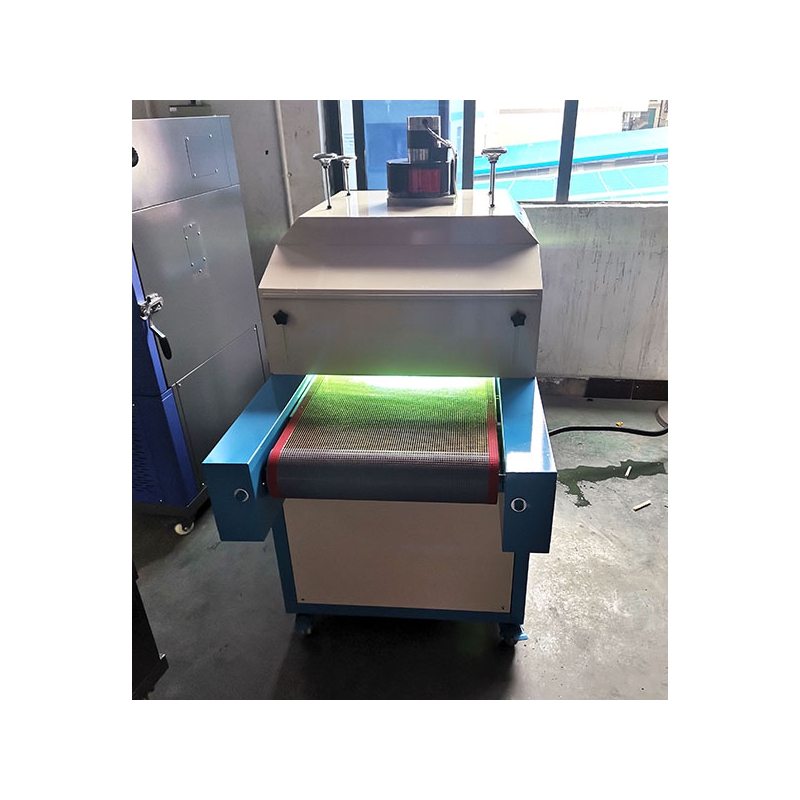

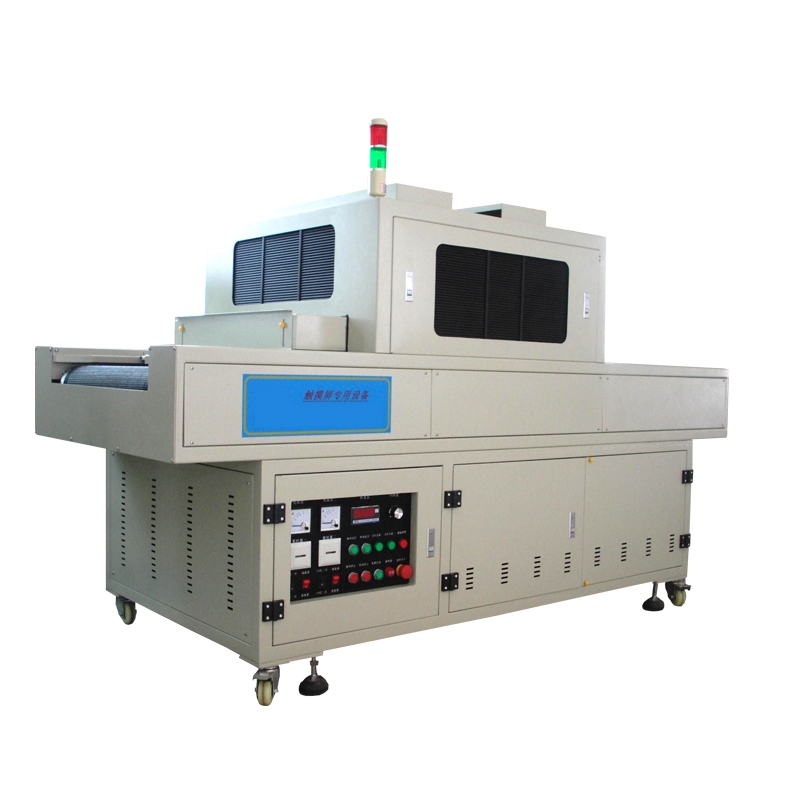

Flat UV Curing Machine is used for flat surfaces UV curing, which is mainly for drying solid process and flat surface UV ink drying solid process, such as various of UV ink, UV adhesives, UV paint curing, plastic, glass, hardware.

Features:
1. With the high efficiency UV light, it can finish the UV curing quickly, the high level of UV light can be adjusted, and setting the right parameters for UV curing.
2. LED display shows the conveyor running speed, convenient to process operation.
3. The machine body adopts the extra-thick stainless steel for hardness and durable.
4. UV lamp and transformers which are imported make it fit for special ventilation design, which can be max effectiveness.
5. It suits for different UV curing process. This series of products is different with the traditional high-power, high-power UV equipment.
6. In order reduce the cost and improve output for our customer.

Machine Size:

1、Machine length：2000mm

2、UV working area：1200mm

3、 Feed operation area：400mm

4、Discharge area：400mm

5、Entrance height：100-150mm can be adjustable

6、Entrance width：500mm

7、Conveyor belt distance to floor：750±50mm

Machine Electric parts:

 1、General Power：7.0 kw 5.0A

 2、Belt speed range: 0-10m/min

 3、Motor power: 800w

 4、Speed controller: 500W

 5、Exhaust fan: CY-125

 6、Ampere Meter：50A

 7、Voltmeter: 220V

 8、Machine voltage: 220v 220V±5%     50Hz

Curing light:

1、Ultraviolet (uv) radiation dry solid light source, to ensure that the dry solid effect

2、UV lamp light length: 560mm, total length 800mm， light power: 2KW -3KW( it can be adjustable)

3、UV source wavelength  350μm  to make sure the curing effect.

4、UV lamp 1pc， 3KW
