Description:

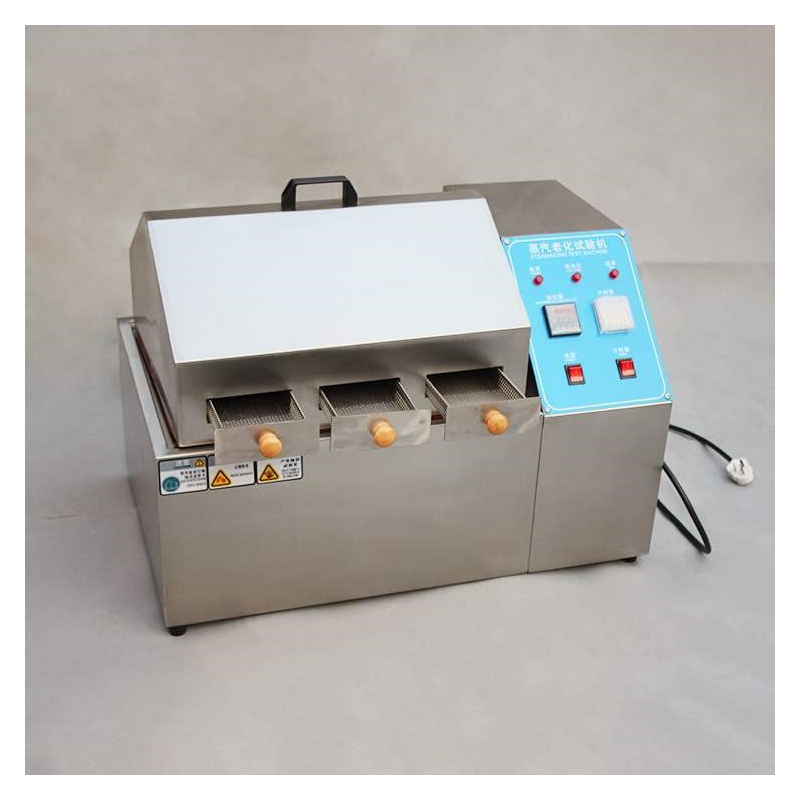

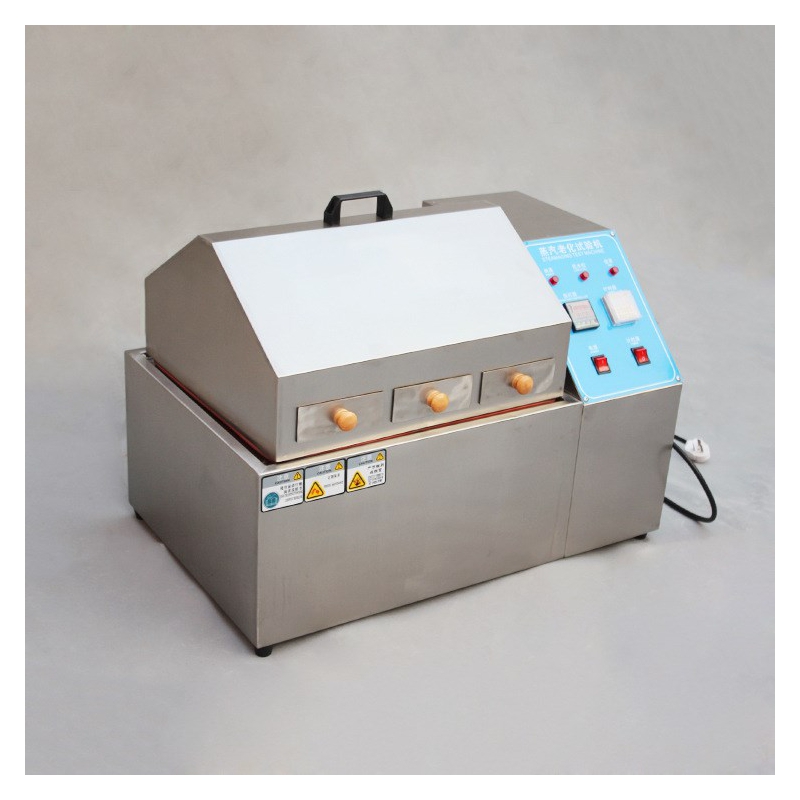

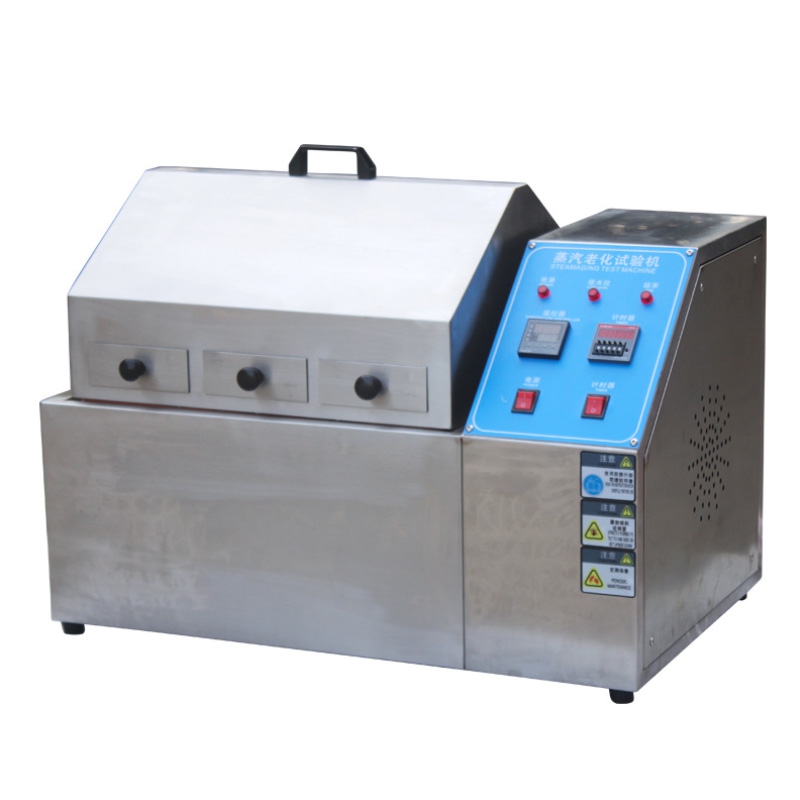

Lab Steam Aging Testing Machine is used to test and determine the parameters, performance of electrical, electronics, other products and materials for high temperature, low temperature,
or the temperature of the thermostat test environmental changes. And also is used in electronic connector, semiconductor IC, transistors, diodes, LCD, chip resistance
capacitance and components industry electronic components metal pin wetting resistance test before
the aging accelerated life time test; Semiconductor and passive components, parts pin oxidation test.
Specification:
|
Product Name |
Lab Steam Aging Testing Machine |
|
|
Test basket.W×H×D(mm) |
100×540×260,3Sets |
|
|
External Dim.W×H×D(mm) |
610×540×340 |
|
|
Performance |
Temp.Range |
R.T+10°C ~ +98°C |
|
Temp.Constancy |
±0.3°C |
|
|
Temp.Resolution |
±0.1°C |
|
|
Heat-up(min) |
45 |
|
|
Material |
Exterior |
SUS#304 stainless steel plate |
|
Interior |
SUS#304 stainless steel plate |
|
|
Insulation |
PU & Fiberglass wool |
|
|
Systems |
Heating |
Chrome Steel Strip Wire Heater |
|
Controller |
Digital electronic indicators controller+S.S.R. With P.I.D & timer max 9,990mins |
|
|
Safety Devices |
Overheating prevention protector, Water shortage protector, steam outlet hole, no fuse breaker |
|
|
Power |
AC 1Ψ 220V 60/50Hz |
|
Feature:
1· Controlled by microcomputer digital LED.
2· Having time planning function.
3· Having safety device, including multi over-temperature protection and power off when out of water.
4· Testing high temperature/high humidity to spare pares, components.
5· Digital electronic indicators + S.S.R with PID automatic calculation capability.
6· Have time planning function, the maximum setting is 9990 minutes.
