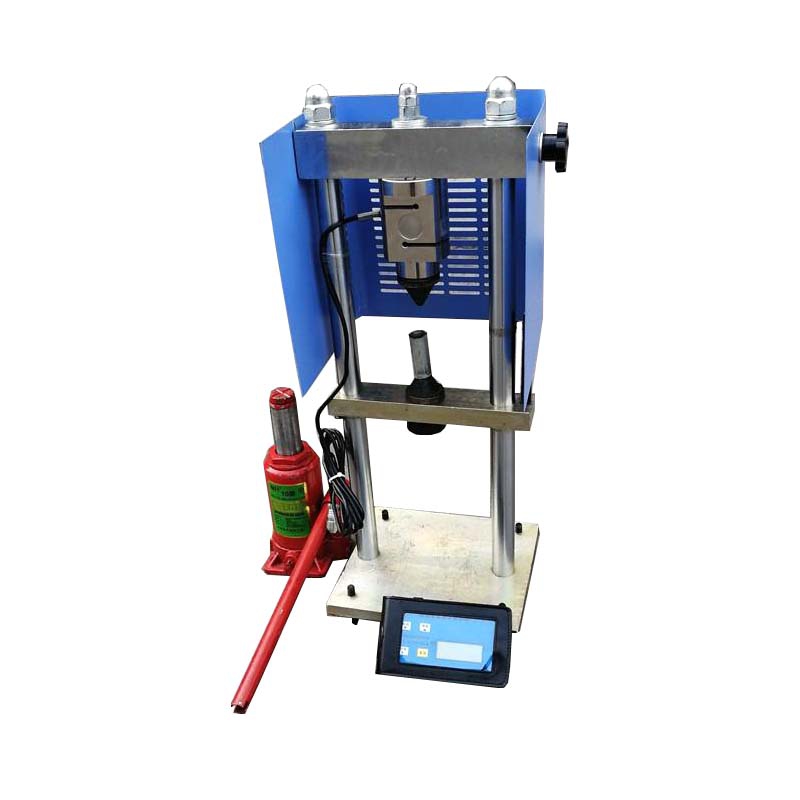

Rock point load tester is a kind of testing instrument used for rock point load test and measuring rock point load strength index.

According to the point load strength index of the rock, the uniaxial compressive strength of the rock can be calculated and determined, the anisotropy of the rock can be determined (the ratio of the large value to the small value of the load strength at different points), the weathering zone can be determined, the drilling speed can be estimated, the rock can be graded, etc.

Specific parameters:

Jack output	100MPa
Rated bearing capacity of sensor	100kN
Piston diameter	Φ 36mm
Piston stroke	160mm
Loading point spacing	120mm
Allowable sample width	90mm
Reading mode	liquid crystal display, electronic peak memory
Force measuring accuracy	0.01kN ≤ 1% F.S
Operating temperature	- 20 ~ 45 ℃
Power supply	rechargeable block battery
Geometric dimension (L*W*H)	280mm*250mm*700mm
Weight	44kg
