Geotextile Test Machine

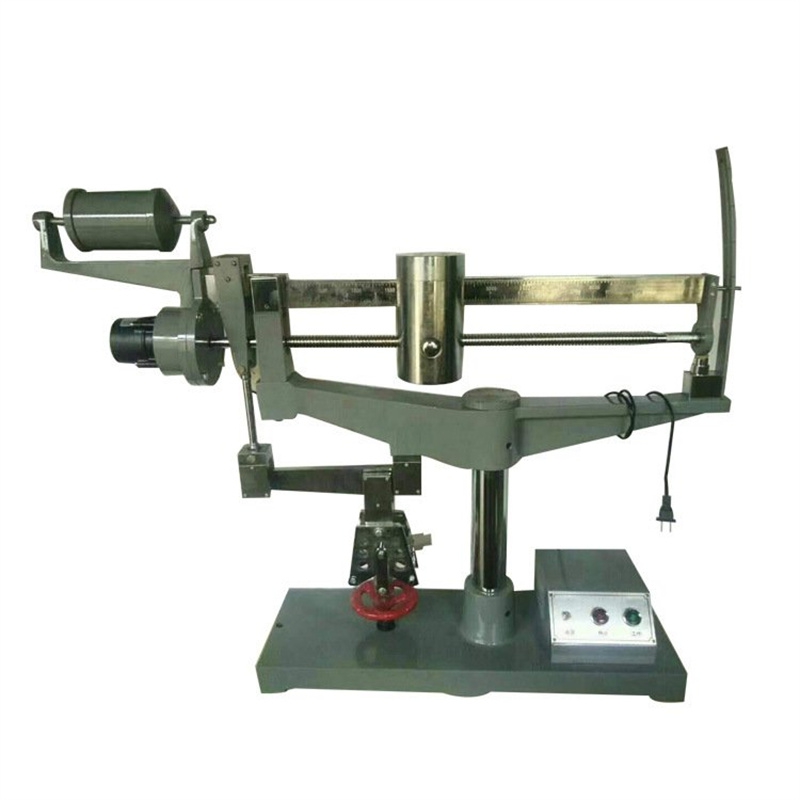

Electric bending machine is used to test the bending strength of cement mortar, prism and other non-metallic brittle material test blocks for cement plants, construction units and related professional colleges and research units.

Main technical parameters:

The maximum test force of horizontal bar	1000N
Maximum test force of parallel bars	5000N
Indication accuracy	± 1%
The output ratio of horizontal bar	10:1
The output ratio of parallel bars	50:1
Loading speed	50N / S
Support roll distance	100 ± 0.1 MM
Diaphragm spacing	46 MM
Weight	about 85kg

Meet standards: ISO 679 standard

Working principle:

The electric folding machine is a double arm lever type, and the load is gradually increased by moving along the lever. The bending machine has a heavy load of 500kg.
