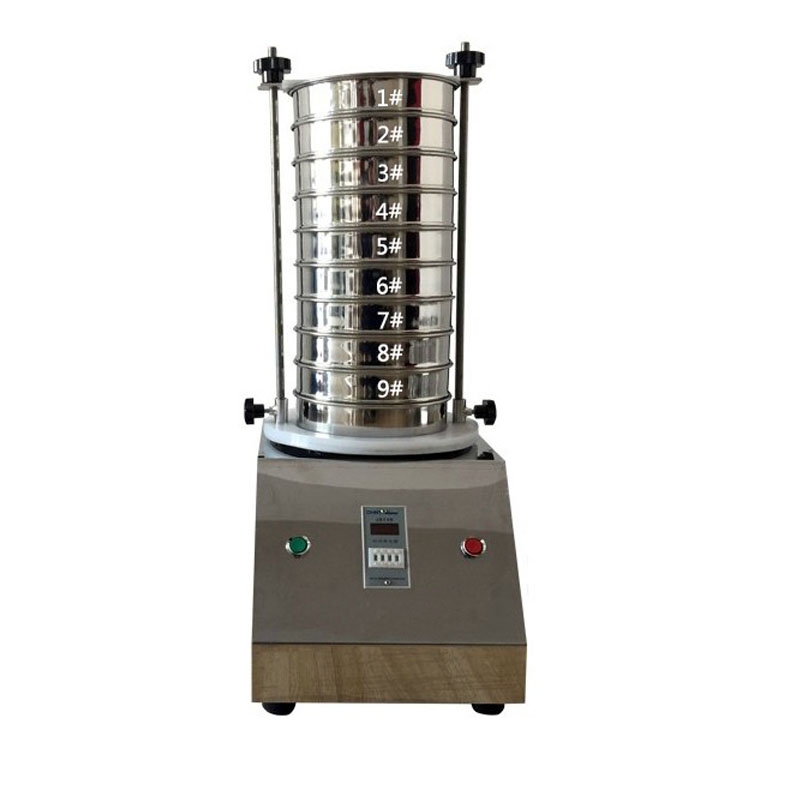

Geotextile Test Machine

It is widely used in the laboratory, quality inspection room and other inspection departments to determine the particle size distribution of particles and powder materials, the content of impurities in products and the content of liquid solids.

Standard sieve	9 layer
Diameter of sieve	Ф200 /Ф100 /Ф75 mm
Sieve size	0.025~3 mm
Noise	≤50 dB
Feeding quantity (one time)	0~100 g
Amplitude	0~3 mm
Voltage	220V
Motor speed	1450 r/min
Motor power	0.125 kw
Dimensions	400*330*360+N*50
Main engine weight	31 kg

Usage method:

1. Determine the standard sieve tool to be selected according to the inspected materials and corresponding standards.

2. Fold standard sieve tools from small to large according to the pore size, fold them on the tray seat from bottom to top, and then set the standard screen by groove or positioning screw position.

3. Put the inspected material into the top standard sieve (or cover the standard sieve tool) and then press the standard sieve tool with the sieve dividing head which is set on the silk column, and tighten the nut on the screw column to press the standard sieve tool（ Note: both sides should be forced to be consistent, and then locked with locking screws.)

4. Put the timer switch in the corresponding position (note that the timer instructions are read, different settings set time is different) and then turn on the power switch, and the screen will start to work.

5. After the standard inspection screen stops, loosen the nut on the screw post, remove the sieve head and carefully remove the standard sieve tool.

6. Cut off the power supply.
