Geotextile Test Machine

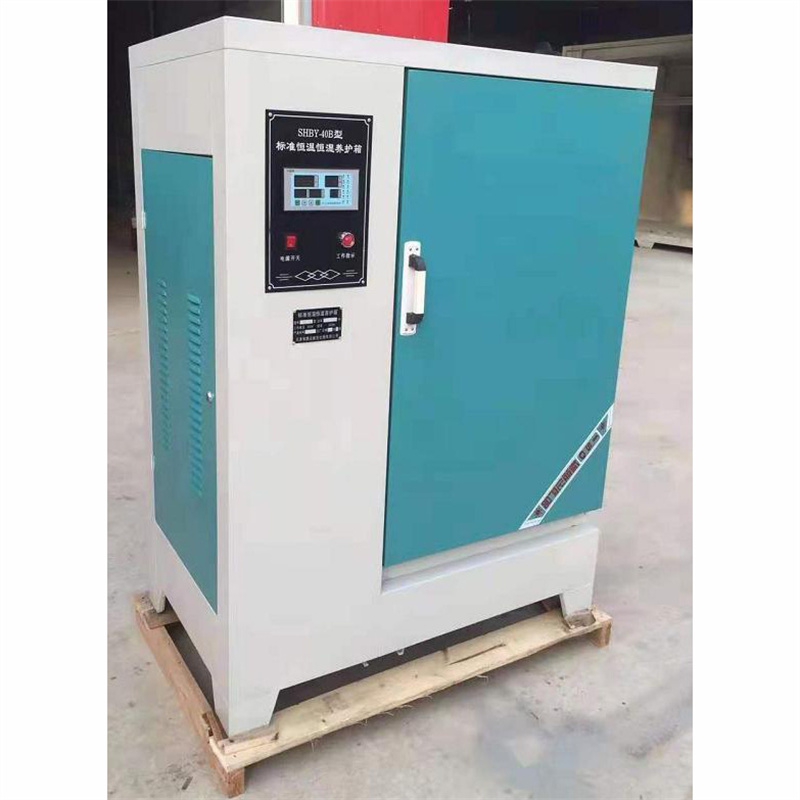

Constant temperature and humidity standard curing box The equipment is produced in accordance with the design standards of the Cement Research Institute of the Chinese Academy of Building Materials. The machine uses smart meters to control temperature and humidity, high-power ultrasonic humidifiers for humidification, and imported compressors for refrigeration and water immersion. The heating tube is used for heating; at the same time, the equipment is made of stainless steel plate with inner tank, and the outer shell adopts electrostatic spraying design, which meets the standard maintenance of cement concrete test blocks by major cement product factories, construction units, and scientific research institutions.

Temperature control accuracy	± 0.1 ℃
Temperature difference in the box	≤ ± 2 ℃
Humidity control	≥ 95% (adjustable)
Power supply	220V ± 10%
Heating power	600W
Compressor power	158W
Internal chamber size	40B: 650×500×1150mm 60B: 1250×500×1150mm 90B: 1450×650×1150mm
concrete test piece (standard test block 150×150×150mm)	40B : 20 groups 60B : 40 groups 90B : 60 groups
