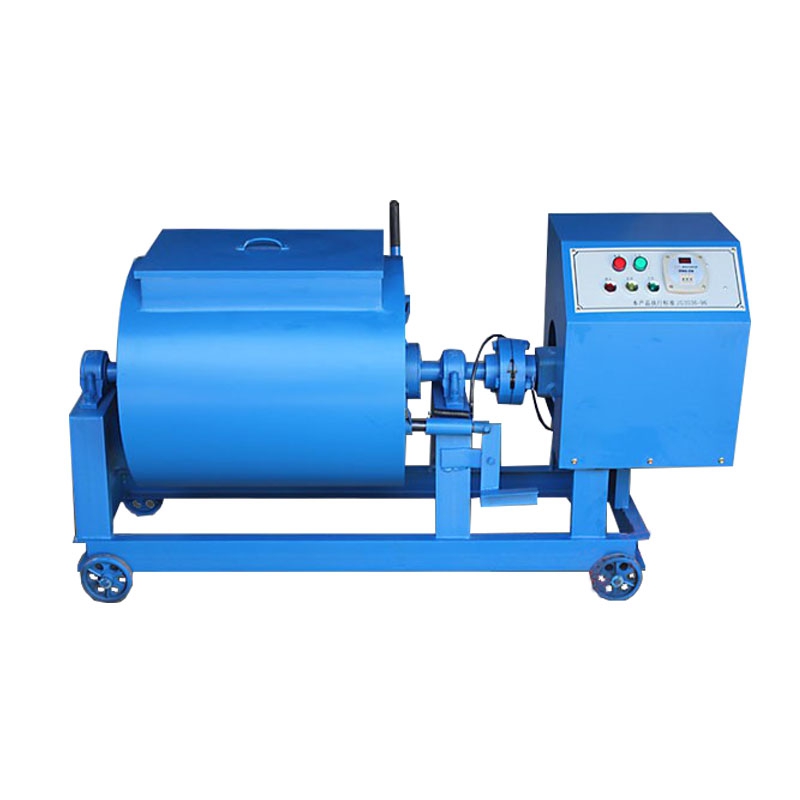

The decelerating motor makes the mixing shaft rotate in one direction through the shaft coupler, and the positive and negative shovels on the mixing shaft stir the materials. Due to the effect of the spiral angle, the shovels push the materials in the cylinder from one side to the other side, and then push the materials back to the original place from the other side, so that the materials can be fully stirred, and the ideal mixing effect can be obtained.

When discharging, stop the machine, open the lock pin, make the cylinder incline to a certain angle, and then limit the position. Press the inching button to make the mixed materials pour out of the cylinder.

Application and characteristics:

It is mainly suitable for laboratories of construction research, construction companies and concrete component units. It can mix ordinary concrete and lightweight concrete, and it can also be used in laboratories of other industries to mix different materials.

The machine is easy to operate, high mixing efficiency, small residual, easy to clean, is an ideal laboratory equipment for concrete mixing.

Parameter:

Feed capacity	18L	33L	66L
Discharge capacity	15L	30L	60L
Mixing time	≤45S	≤45S	≤45S
Stirring blade speed	35r/min	35r/min	35r/min
Motor power	1.2KW	1.5KW	2.2KW
supply voltage	380V	380V	380V
Overall weight	≈100KG	≈170KG	≈190KG
