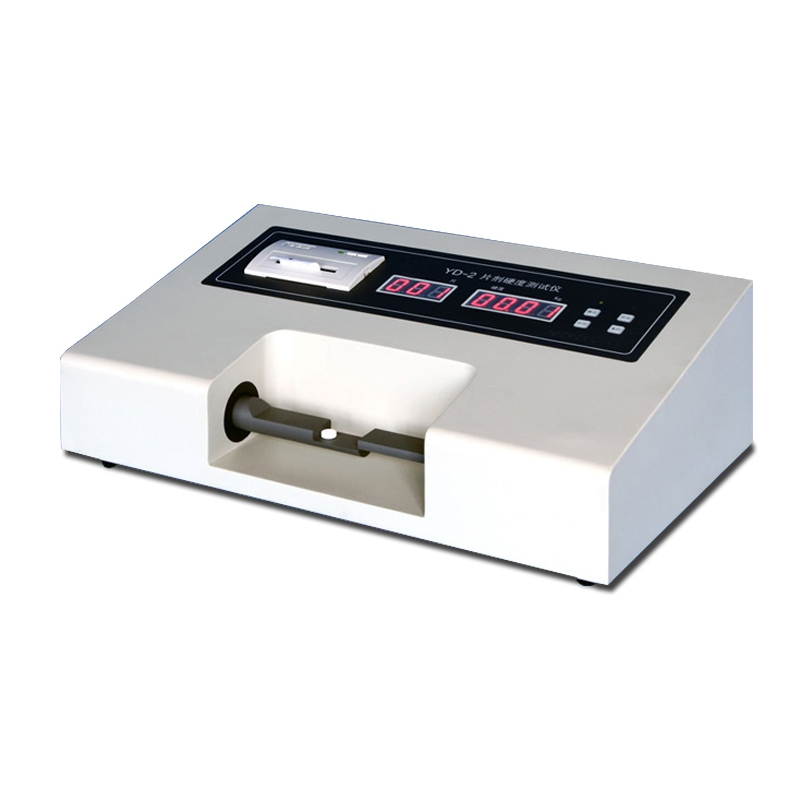

Hardness Tester

Tablet hardness tester is a drug testing instrument used to measure the hardness of tablets. The tablets should be suitable hardness, which is important to reflect the level of tablet production process and control the quality of tablets indicators. Correctly test and reflect the hardness of tablets, and ensure the production, scientific research and maintenance of tablets.

The scientificity and accuracy of clinical drug use of syndromes have practical guiding significance that cannot be ignored meaning.

1. Manual loading, automatic feeding test, automatic statistical printing.

2. High precision pressure sensor, digital display.

3. It can continuously measure the hardness value of tablets, and each group can test up to 100 tablets.

4. Automatic detection of film diameter, saving testing time.

5. Automatic display and automatic locking.

6. Automatic reset and automatic cycle test.

7. It can automatically print and process data, record the hardness value of each tablet to be tested, automatically count the maximum value, minimum value, average value, mean square value and discrete coefficient, and automatically print the test and statistical results.

8. Automatically preset the number of pieces and automatically test the hardness value; Time sharing

display of preset and real-time values.

9. Automation, automatic detection, automatic diagnosis and automatic alarm.

Technical indicators:

Hardness test range	2 ~ 199.9 N
Hardness test accuracy	± 0.5% of the maximum range
Diameter test range	3~40mm
Number of test pieces per group	≤ 100 pieces
Test time of each piece	less than 20 seconds
Continuous working time	more than 24 hours
Power supply	220V 50Hz 60W
Net weight	12kg
Dimension	500×300×160mm
