Description:

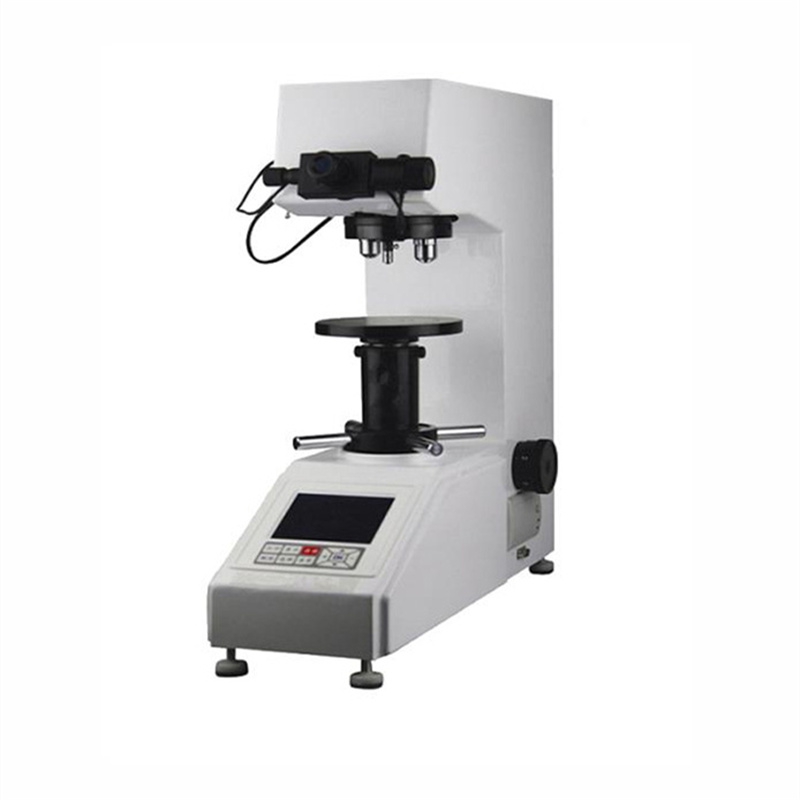

HVS-5 digital Vickers hardness tester with a large display LCD display, the interface operation using a menu structure, you can select the operating panel hardness scale HV or HK, measured hardness values, automatic input, automatic display hardness value. Can be a variety of hardness values are converted, the test results can be automatically stored, processed, printed. With RS-232 interface, can be connected with the computer. The machine is digitized and the degree of automation is high. The error of the hardness value can be corrected by software input to make the hardness value more accurately meet the requirements.
Application:
Heat treatment, test carbonization, quenching hardening layer, surface coating, steel, nonferrous metals, small and thin parts.
Technical parameter:
| Model |
HVS-5 |
| Minimum test unit |
0.0625µm |
| Testing force |
0.3Kgf(2.94N)、0.5Kgf(4.9N)、1.0Kgf(9.8N)、2.0Kgf(19.6N)、3.0Kgf(29.4N)、5Kgf(49.0N) |
| Minimum test unit |
0.5µm |
| Hardness test range |
8HV~2900HV |
| Objective lens, indenter switch |
Automatic |
| Test the magnification of the microscope |
100X (for observation) 200X (for testing) |
| Test force holding time |
0~60S (One unit per second, any type) |
| Maximum height of specimen |
160MM |
| Indenter - outer wall distance |
135mm |
| Power supply |
AC220V+5%，50-60Hz |
| Dimension |
520*190*650mm |
| Host weight |
About 40Kg |
Aaccessory:
| Name |
Qty |
Name |
Qty |
| Weight |
3 |
Vickers hardness block |
2 |
| V test bench |
1 |
Spare fuse (2A) |
2 |
| Round test bench |
1 |
Power cable |
1 |
| Large test bench |
1 |
Product certificate, printing paper |
1 |
| 10 times micrometer eyepiece |
1 |
Printer manual, product manual |
1 |
