Equipment description:

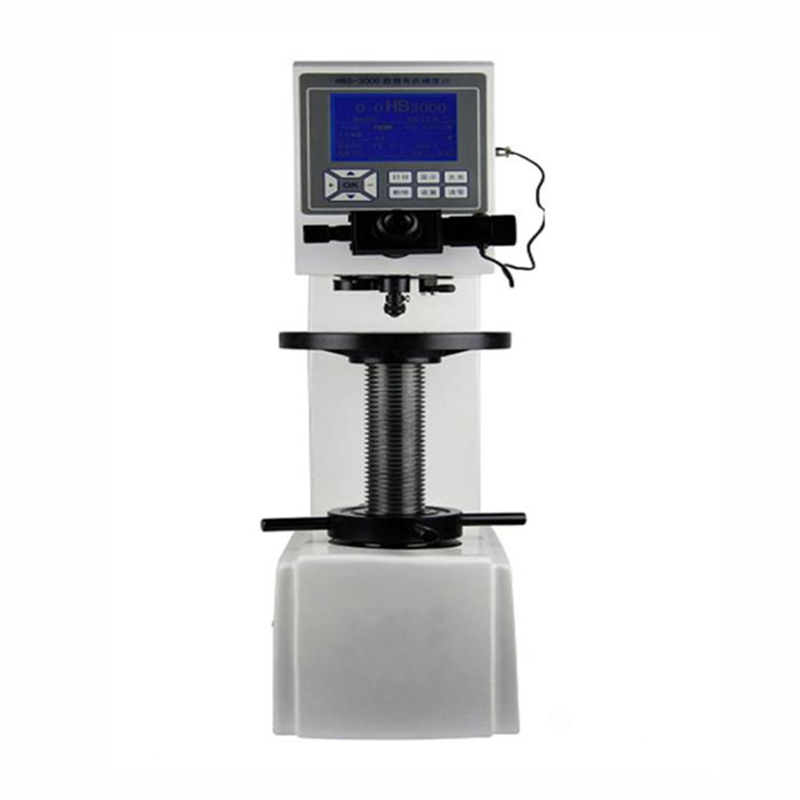

HB-3000C Digital Brinell hardness tester using electronic automatic loading, computer software programming, high magnification optical measurement, photoelectric sensing system. The data of the operation process and the test result can be displayed on the LCD large screen. The data of the experimental result can be output through the printer.
Applied to :
Brinell hardness test used force, indentation is large, with a large grain for hardness testing of metallic materials, such as: Iron, nonferrous metals and alloys, various annealed, quenched and tempered steel, especially for soft metals such as aluminum, lead, tin and so on.
Technical parameter:
| Model |
ZL-1108 |
| Brinell hardness scale |
HBW2.5/62.5,HBW2.5/187.5,HBW5/125,HBW5/750 HBW10/100、 |
| Testing force |
62.5kgf(612.9N)100kgf(980.7N)125kgf(1226N)187.5kgf(1839N)250kgf(2452N)500kgf(4903N)750kgf (7355N)1000kgf(8907N)1500kgf(14710N)3000kgf(29420N) |
| Maximum height of specimen |
200mm |
| Minimum measurement unit |
0.625µm |
| Host weight |
About 90kg |
| Power |
AC220+5%,50~60Hz |
| Dimension (mm) |
550*210*750mm |
| Hold time |
5~60s |
| Hardness test range |
8~650HBW |
| Total magnification |
20X |
| Standards |
GB/T231.2, JJG150 |
| Indenter - outer wall distance |
135mm |
| Hardness read |
LCD display, printable output, built-in printer |
Accessory：
| Name |
Qty |
Name |
Qty |
| 20 X test eyepiece |
1 |
φ2.5,5,10mm Carbide ball head |
1piece |
| Hardness block |
3 |
Large, medium and V type test bench |
Each 1 piece |
| Power line |
1 |
232 lines |
1piece |
| Manual |
1 |
Product certification |
1piece |
