Technical parameters:
|
Vertical fixture width |
25 mm |
|
Vertical fixture weight |
0.28~0.34 kg |
|
Two vertical fixture distance |
6. 35 mm |
|
Reciprocating stroke |
75 mm |
|
Reciprocating frequency |
30 cpm |
|
Specimen closed angle |
60° |
|
Specimen opening angle |
30° |
|
Counter |
6-digit |
|
Motor |
1/4 HP |
|
Power Supply |
1ø, 220V, 50Hz |
|
Volume (W×D×H) |
About 30×55×68 cm |
|
Weight |
About 35 kg |
Equipment description:

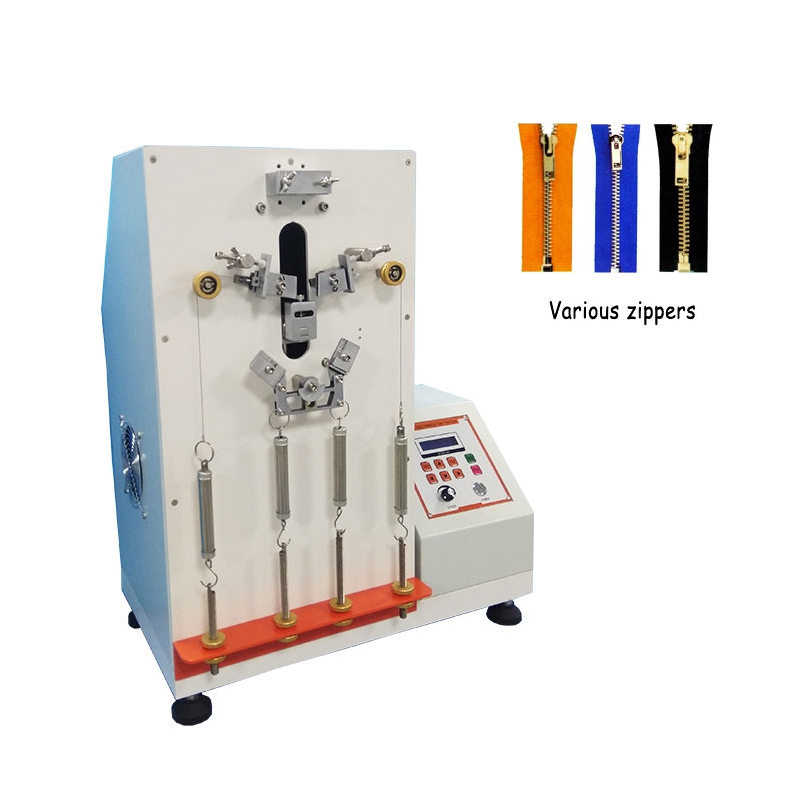

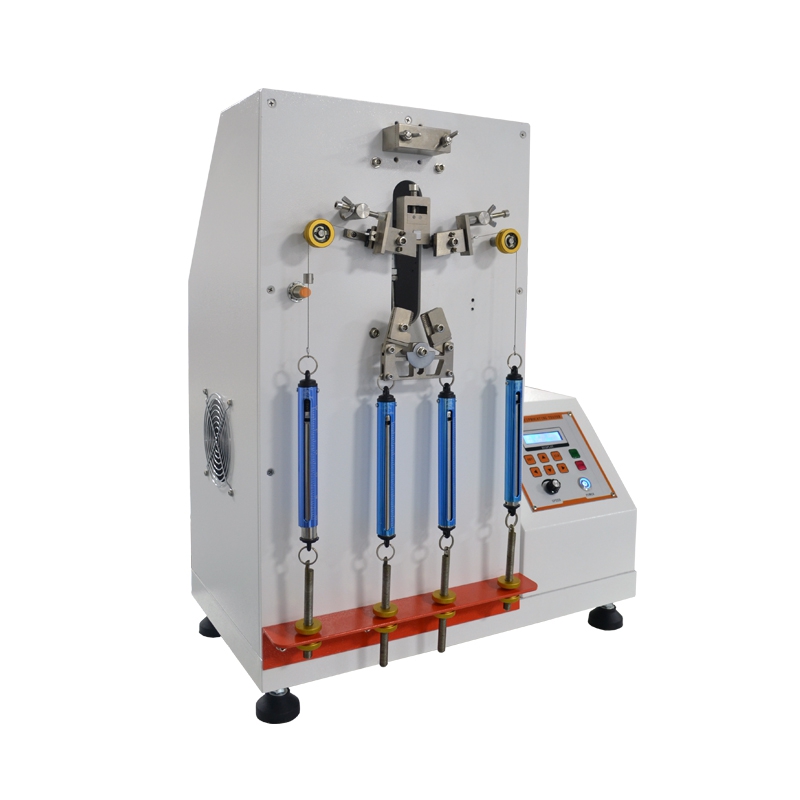

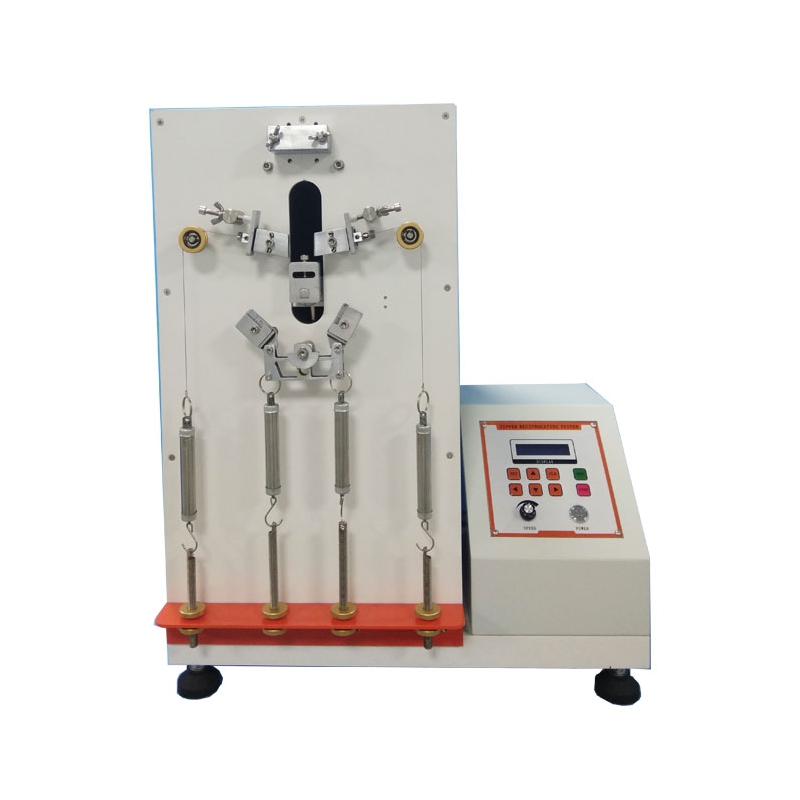

Bag Zipper Reciprocation Pull Fatigue Tester is used to test zipper in horizontal and vertical forces, can withstand the required number of pulling back and forth. Stop the machine in the test after pulling the zipper pull head to the required number of pull 30rpm constant speed, and then view the zippers damaged cases.
Meet the standard: CNS 1083, QB / T 2 171
Application industries: Footwear, garment industry.
