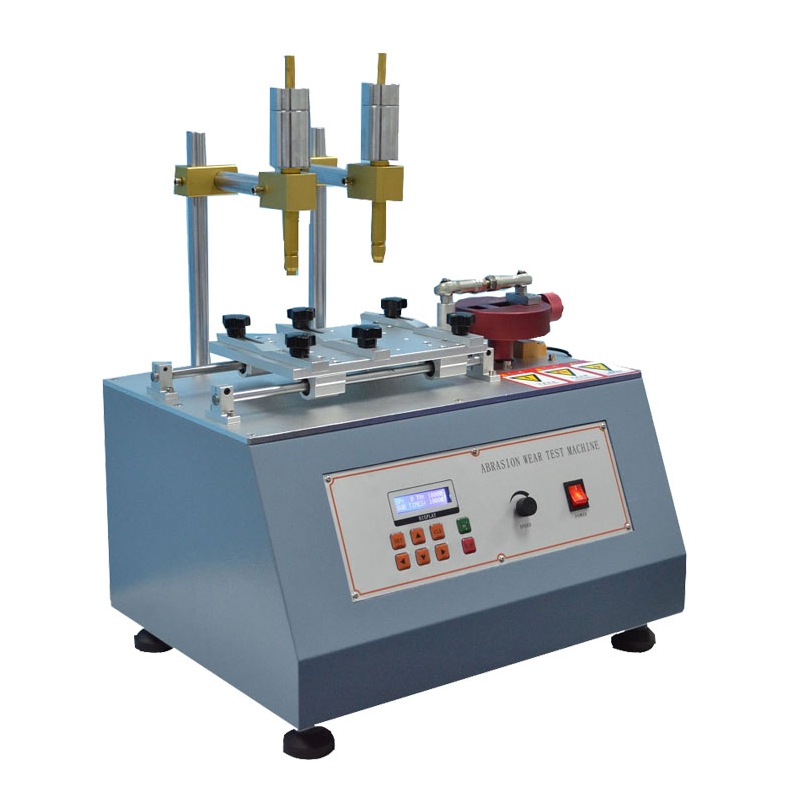

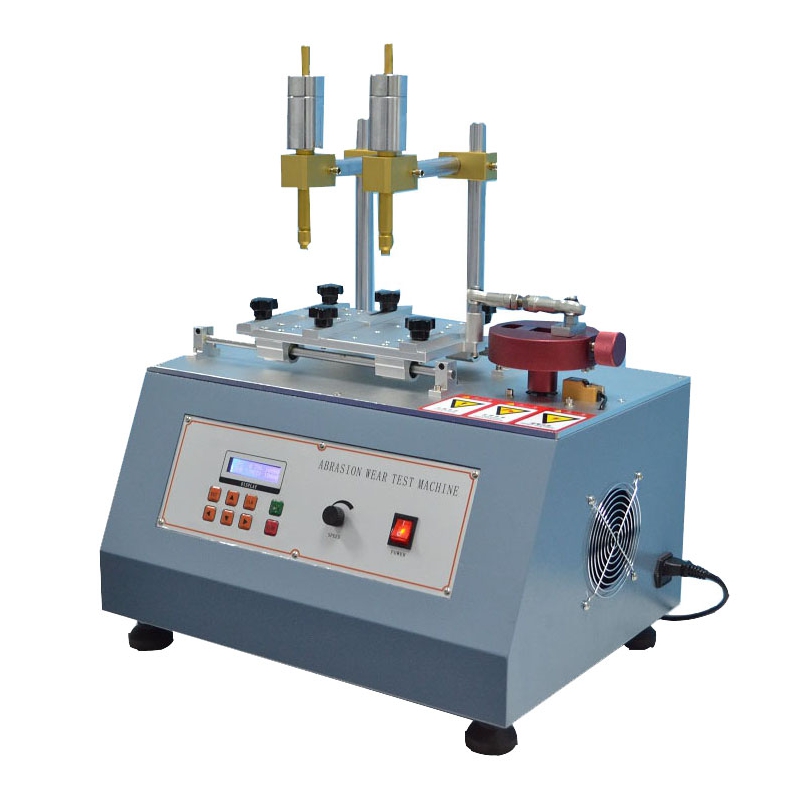

Machine introduction:
It is applicable to wear resistance of oil spray, silk screen and other Block letters on the surface of various electronic products such as TV remote control button silk screen, plastic, Mobile phone case, headphone shell silk screen, battery silk screen, keyboard printing, wire silk screen, leather and evaluate their wear resistance.
This machine can carry out three typical abrasion tests: alcohol or other liquid medium and cotton cloth abrasion test, Eraser abrasion test and pencil hardness abrasion test.
This machine tests the product back and forth with a friction hammer under a certain test load, test frequency, and test stroke.
Applicable industries:
Commonly used in glass covers, films, plastics, automotive accessories, rubber, leather and textile, electroplating, freely detachable components, paints, printing patterns, and other products. This machine is suitable for wear resistance testing machine of various non-conductive coating layers. Wear resistance testing machine can use Eraser or alcohol to rub cloth.
Technical Parameters:
|
Test stations |
2 |
|
Test load |
50-1000g |
|
Test stroke |
10~60mm (manually adjustable) |
|
Test speed |
5-60 times/minute (knob adjustment, LCD display) |
|
Test counter |
0~99999999 times (preset, LCD display) |
|
Load weights |
50, 100, 200, 300, and 500g,Two each |
|
Friction medium |
multiple pieces of cotton cloth, one eraser, two 2B pencils |
|
Alcohol or other liquid friction tools |
2 |
|
Rubber rubbing tool |
2 |
|
Pencil grinding tool |
2 |
|
Machine size (LxWxH) |
500x 450x 600mm |
|
Working power supply |
AC220V, 50HZ |
Product features:
1. The box body is treated with electrostatic baking paint, and the worktable and friction fixtures are all sandblasted with aluminum material surface, which has strong corrosion resistance, tight structure, reasonable design, beautiful appearance, safe, stable, and accurate operation;
2. The number of tests can be preset, with power-off memory function, and the test speed and travel can be adjusted with humanized design. The speed and number LCD display is convenient, fast, and intuitive;
3. It has multi-function test, and can carry out various friction tests such as alcohol or other liquids, cotton cloth, Eraser, pencil, steel needle, etc.
