Leather and Shoes Tester

Machine Specifications:

Tester summary:

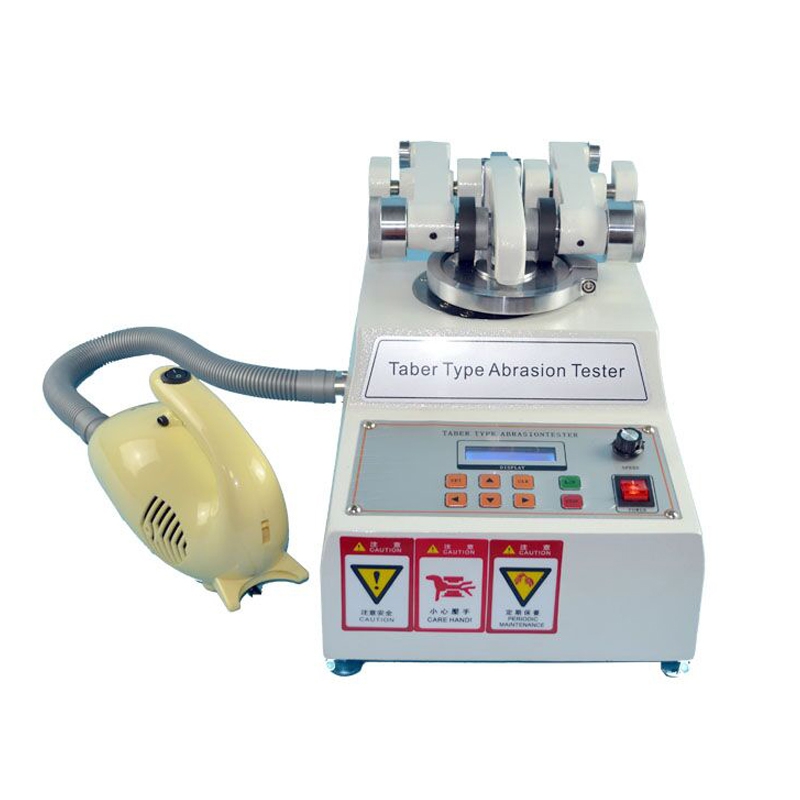

Mechanical Taber Abrasion Test Equipment applied to do the test of wear-resistant in skin, leather, cloth, paint, paper, flooring, plywood, glass and natural rubber. The method is using the standard knife cutting the specimen, and then using the regulated models of grinding wheel with loading weight to be abrased, Specimen to be removed after rotation to reach a certain number, observe the condition of the specimen or compare the weight with the previous materials, For the choice of grinding wheel models: H18, H22, CS17, S32, S33.

Corresponding standard:

DIN-53754,53799,53109,52347, TAPPI-T476, ASTM-D1044, D3884, ISO-5470

Applicable industry:

Mechanical Taber Abrasion Test Equipment used in testing the performance of leather products, such as suitcases, carpets, cardboard, clothing, glass, plastic coating, ceramic tile, metal plating, paints, varnishes, decorative sheets, high-pressure sheets, plastics, textiles, flexible floor mats, traffic paint, anodizing layer, blankets, electronic components, decorative plates, wax, label, leather, dental materials, car ornaments, resin, furniture, and scientific research laboratories; commodity inspection, arbitration, and technical supervision department.

Testing reference:

Computational formula:

Abrasion index computational formula=Abrasion loss weight ×100

Test turnover number
