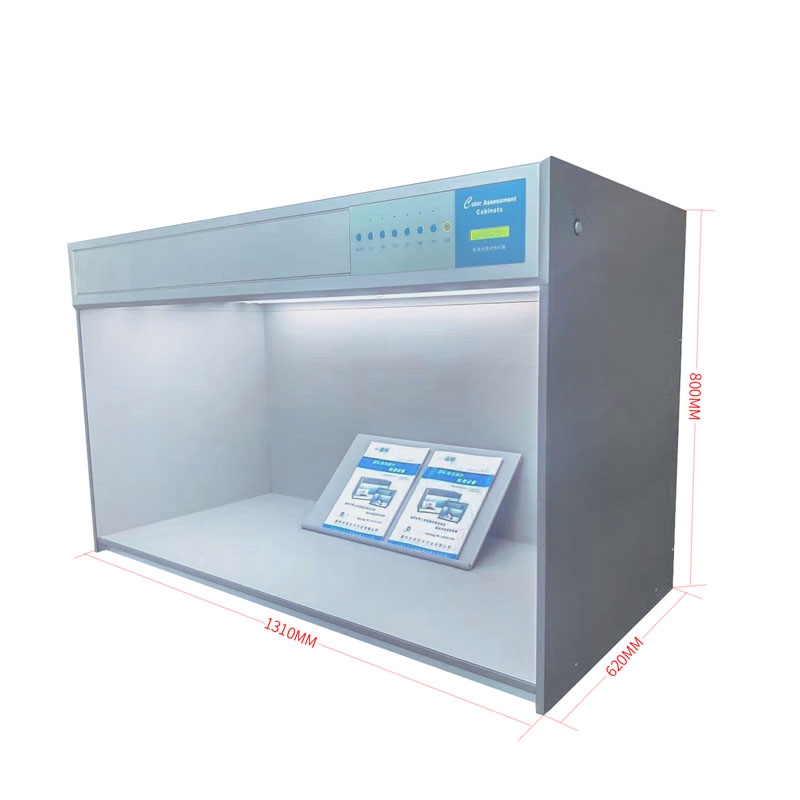

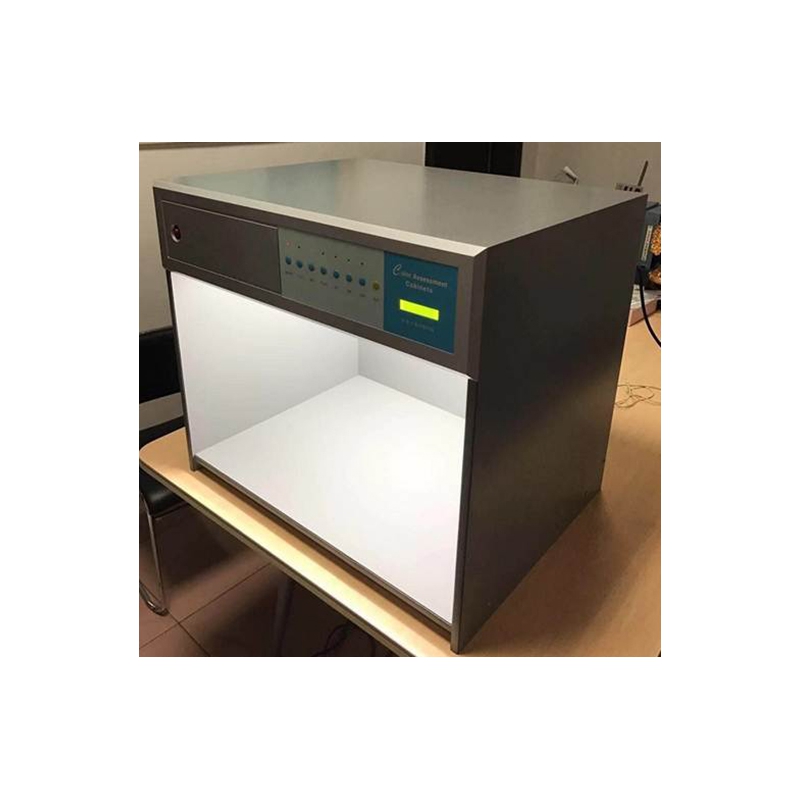

Big Size Fabric Textile Color Check Chamber Color Assessment Cabinet

Product Description

Technical parameters:

Inside size	1280*590*600mm
Outside size	1310*620*800mm  95KG
Bag size	1380*700*260mm/1310*690*95mm  2PCS
Made wood size	1450*700*400mm



Instructions  for  Llight  Source
Name	lamp name	Configuration	power	Colour temperature
D65	Artificial daylight PHILIPS 36W/965	2 pcs	36W/ pcs	6500K
TL84	PHILIPS TLD 36W/840	2 pcs	36W/ pcs	4000K
CWF	CPHILIPS TLD 36w/33COOL WHITE	2 pcs	36W/ pcs	4200K
F	E27	6 pcs	40W/ pcs	2700K
UV	F40T/BLB BLACK LIGHT	1 pcs	40W/ pcs	/
U30	PHILIPS TL`D 36W/830	2 pcs	36W/ pcs	3000K



Equipment summary:

Color Assessment Cabinet suitable for all industries and applications where there is a need to maintain color consistency and quality-e.g. Automotive,Ceramics, Cosmetics, Foodstuffs, Footwear, Furniture, knitwear, Leather, Ophthalmic, Dyeing, Packaging, Printing, Inks and Textile.

Since different light source has different radiant energy, when they arrive on the surface of an article, different colors display. With regard to color management in industrial production, when a checker has compared the color consistence between products and examples, but there may exist difference between light source used here and light source applied by the client. In such condition, color under different light source differs. It always brings following issues: Client makes complaint for color difference even requires for rejection of goods, seriously damaging company credit.

To resolve the above problem, the most effective way is to check good color under same light source. For example, international Practice applies Artificial Daylight D65 as standard light source for checking goods color.

It’s very important to use standard light source to chenk color difference in night duty.

Besides D65 light source, TL84, CWF, UV, and F/A light sources are available in this Lamp Cabinet for metamerism effect.



Features:

1. Provide several light sources,i.e. D65, TL84, CWF, UV, F/A,U30
2. Apply microcomputer to switch between the light sources quickly.
3. Super timing function to record use time of each light source separately.
4. All fittings are impored, ensuring quality.



corresponding standard :

Operative international standard JIS-Z8724, CIE-30



Applicable industry :

Color Check Cabinet is widely used in textiles, plastics, paint, ink, printing and dyeing, printing, paints, packaging, ceramics, leather, cosmetics and other industries for color management.
