Product Introduction:

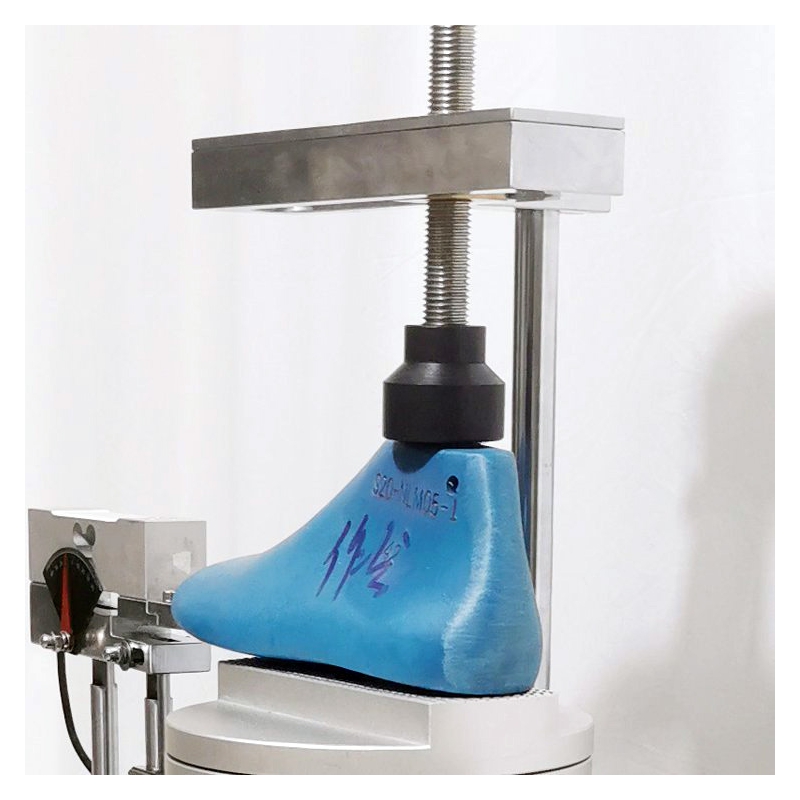

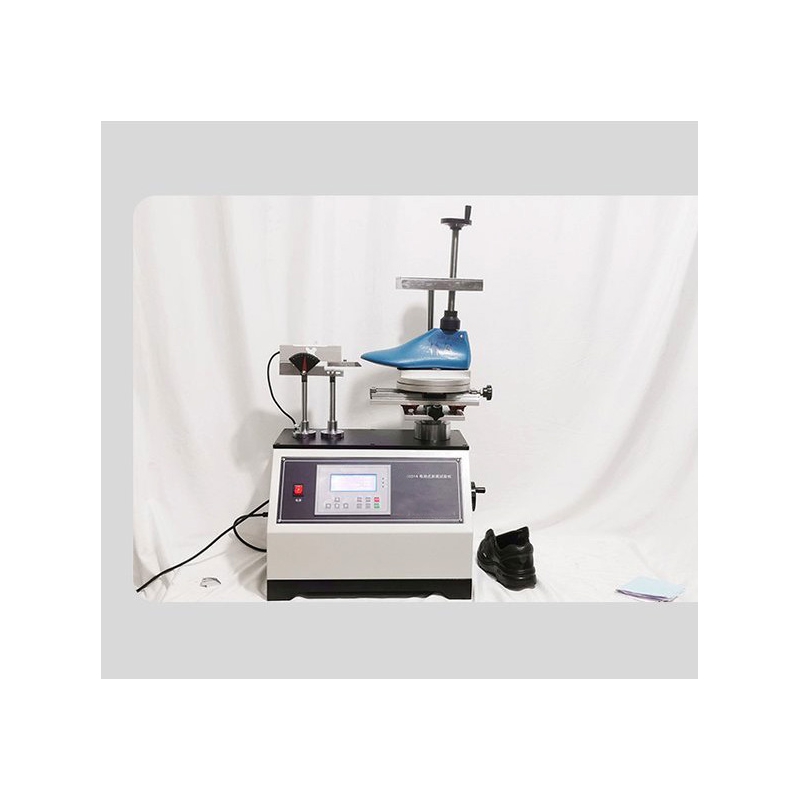

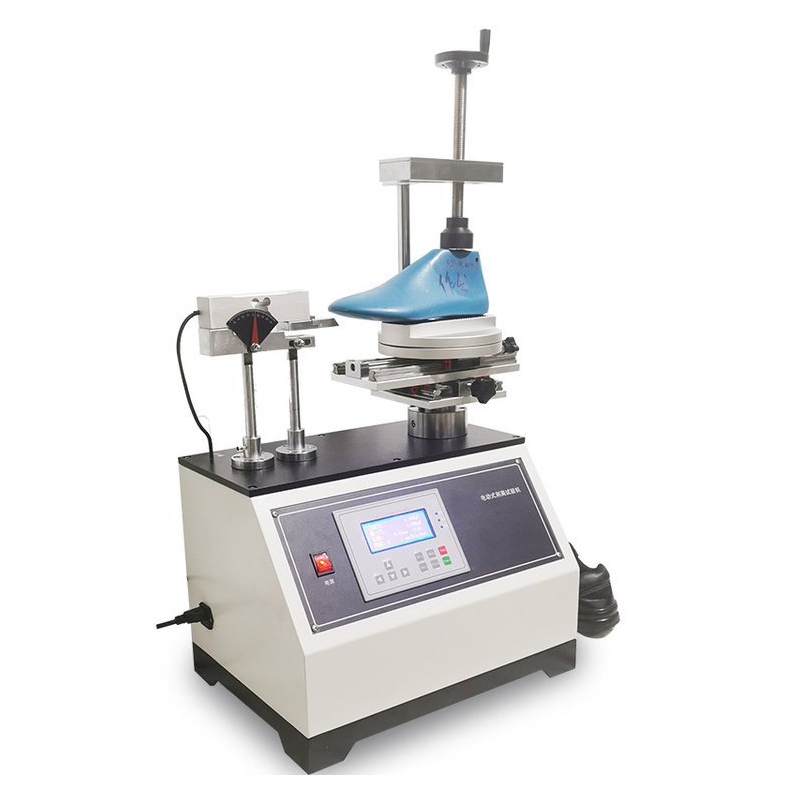

The upper peeling strength testing machine is suitable for testing the peeling strength between the sole and upper of finished shoes. Its principle is to clamp the shoe last onto the machine, use a peeling knife to peel off the joint between the sole and upper, measure the required force when peeling, and then calculate the peeling strength based on the peeling force and the width of the knife edge;
GB/T15107-2013 GB/T3903.3-2011 BS 20344QB/T4329-2012
Machine parameters:
|
Maximum peeling force |
1000N |
|
Stripping blade width |
20+0.2MM and 10+0.1MM |
|
Stripping blade downward speed |
20+2MM/MIN, with adjustable ascending and descending speeds |
|
Distance between positioning rod and pull rod |
50-70 mm adjustable |
|
Dial gauge |
0.001-10MM, accuracy: 0.001 |
|
Average lifting range |
40 MM |
|
Volume (approximately) |
560x320x750 MM |
|
Electric source |
AC220V, 50HZ |
|
Weight (approximately) |
45KG |
