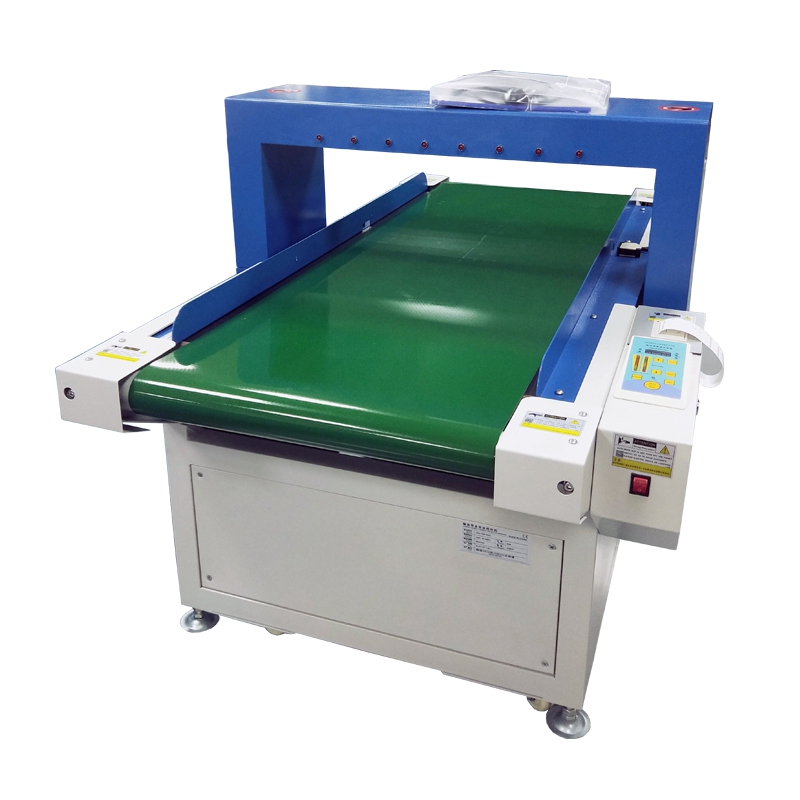

Industrial Textile Conveyor Belt Needle Detector
Feature:
1. High sensitivity and strong interference immunity.
2. Light structure and move conveniently.
3. Various of specifications of inspection window which can be chosen at will according to customers‘ needs
4. Quick conveying speed, applicable to pipeline operation.
5. Matches the pipeline operation or automatic control device.
Parameter:
|
Model |
ZT-2003 |
|||
|
Specifications |
6010 |
6015 |
6020 |
6010 |
|
Voltage |
Ac220V 50-60Hz |
|||
|
Motor power |
60W |
60W |
90W |
90W |
|
Material of the whole machine |
Carbon steel, ABS engineering plastics |
|||
|
Effective detection width |
600mm |
|||
|
Effective detection height |
100mm |
120mm |
150mm |
200mm |
|
Check the accuracy(empty) |
Fe≥φ0.8mm |
Fe≥φ1.0mm |
Fe≥φ1.2mm |
Fe≥φ1.5mm |
|
Height of conveyor belt above ground |
680mm |
|||
|
Belt width |
560mm |
|||
|
Effective load |
10KG |
15KG |
20KG |
|
|
Conveying direction |
From left to right |
|||
|
Max. speed of conveyor belt |
Constant frequency, 26 m/min |
|||
|
Material of conveyor belt |
PVC conveyor belt for needle detector |
|||
|
Display and operation mode |
Control panel key input |
|||
|
Alarm mode |
When the broken needle or magnetic metal foreign body is detected, the automatic buzzer will give an alarm and the conveyor belt will stop automatically |
|||
|
Protection level |
IP54 |
|||
|
overall length |
1650mm |
|||
|
overall width |
1050mm |
|||
|
Machine height |
900mm |
920mm |
950mm |
1000mm |
Application:
Mainly used for detecting ferrous metal that load or drop in raw materials and products in the field of toy costume, shoe making, chemical industry, leather, knitting etc. Clothes, textile, bra, baby products, shoes, socks, gloves, etc detection lost pin and scrap iron kind of impurities in the products., ensure prduct without iron impurity pollution, supply reliable quality guarantee.
