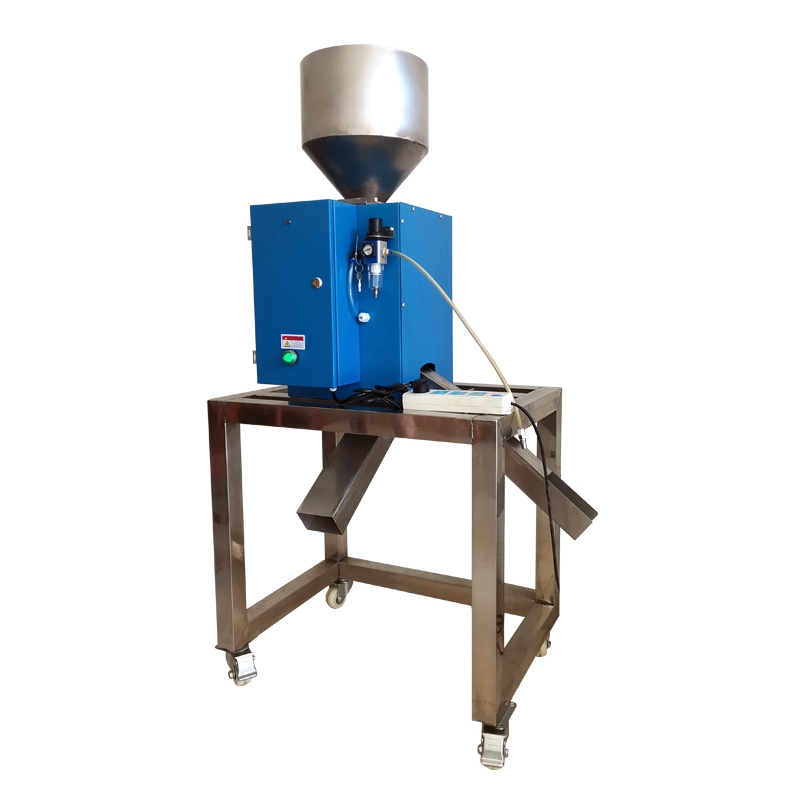

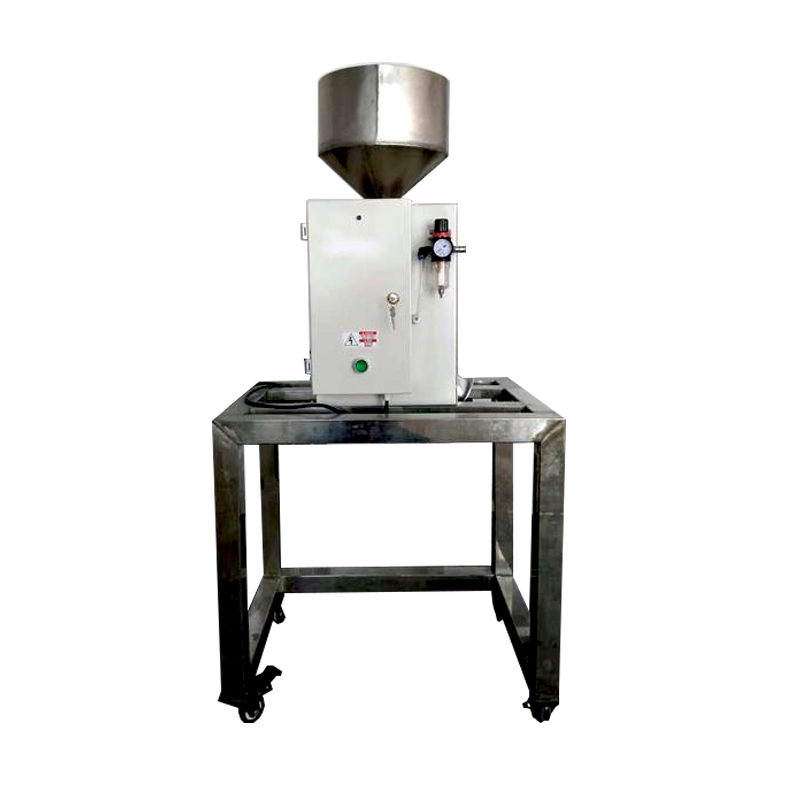

Gravity Metal Separator Free Fall Metal Separator
Metal separator works:
The raw material from the hopper or feeder free fall into the metal separator, if there is no metal impurities, the raw materials will be directly through the metal separator to the lower end of the outlet. If the detector detects the presence of metal in the feed stock, the controller immediately activates the separation plate to direct the metal and part of the feed stock to the side of the discharge port, and then the manifold quickly returns to its normal position, the manifold speed is adjustable, the metal separator Of the detection accuracy can also be adjusted according to production needs, the minimum detection and separation of Φ 0.2mm metal particles.
Technical Parameters:
|
Model |
A |
B |
C |
D |
|
Cutting caliber |
Φ25mm |
Φ35mm |
Φ50mm |
Φ70mm |
|
Accuracy (Fe) |
Φ0.2mm |
Φ0.3mm |
Φ0.5mm |
Φ1.0mm |
|
Accuracy (Sus) |
Φ0.3mm |
Φ0.5mm |
Φ0.8mm |
Φ1.5mm |
|
Amount |
250KG/HR |
400KG/HR |
800 KG/HR |
1000-1500 KG/HR |
|
voltage |
220V/50～60Hz |
|||
|
Temp |
-10～+45C |
|||
|
Nesting time |
0.3-5S |
|||
|
Compressed air |
3～5Bar |
|||
|
Contact part with raw materials |
PP plastic and polytetrafluoroethylene |
|||
|
Compressed air |
2-3 kg, 6-8 mm hose connection |
|||
|
With gas volume |
0.6 liters each separation action |
|||
|
Protective level |
IP54 |
|||
|
Detection mode |
free fall detection plastic particles |
|||
|
Raw material characteristics |
dry, no long fibers, no conductive, particles less than 8 mm |
|||
