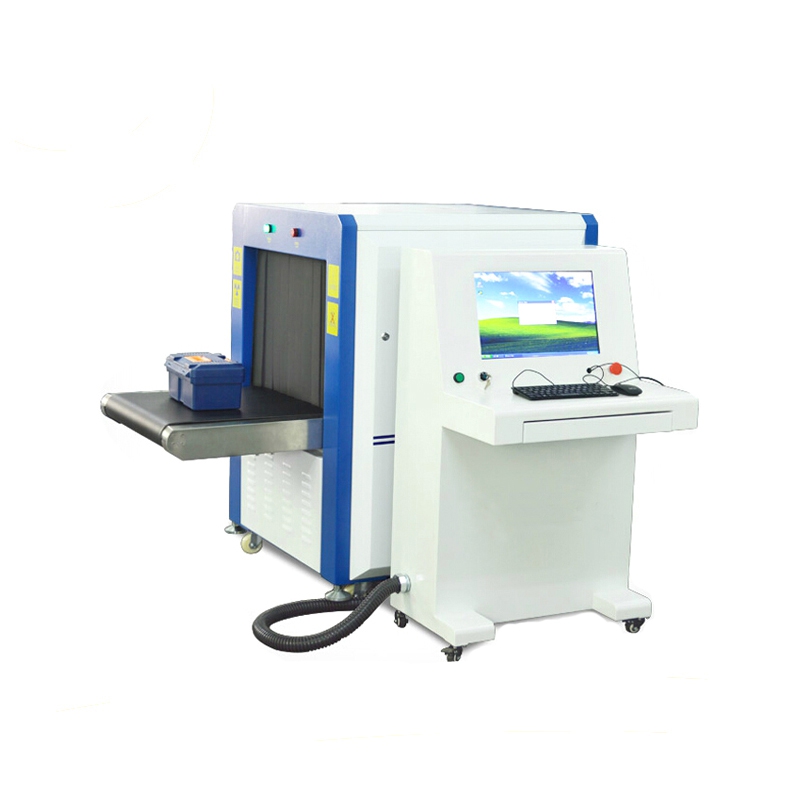

X Ray Baggage Scanner Airport Penetrate Inspection

Product Introduction :

Super X ray baggage scanner best selling for airport jail mine station.

X-ray penetrate inspection , the object can be found within the metal structure , can display the naked eye

can not see where the liquid is also very obvious object display .

Product Features:

1. Detection Mode: X-Ray bottom shine detecting

2. Tunnel Size: 650(W)*500(H) mm

3. Conveyor Speed: 0.2m/s

4. Conveyor Max Load:150kg

5. Single inspection dosage: ＜1.5uGy

6. Wire Resolution: Ф0.1mm metal line

7. Steel Penetration: 14mm, 34MM metal line

8. Maximum leakage radiation: <0.05uGy/h

9. System Power:220AVC/50Hz

Specification :

Application:

Used in the factory testing of security products and business units such as: electronic factories ,

shoe factories, toy factories, courts, railway stations, and event bag, line security management package .

Image System:
Technical Principle: Dual-energy X-ray Imaging; Double L Shaped Array,448 detectors
Image Display: High resolution of 1280×1024;
Image Enhancement: 1-64 times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.
Image Recall: All preceding images recallable
Explosives & Narcotics Detection: Explosives & narcotics alarm and highlight according to atomic number signature
High Density Region Alarm: Impenetrable region alarm and highlight, for possible concealing of threats and contrabands
Threat Image Projection: Inserting fictional, but realistic images of threat items into
baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability
Image Archive: Up to 80,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats
Miscellaneous Functions : Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS etc.
Network Applications: Multiple remote applications available based on Ethernet LAN and
windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc.
Images process:24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags ,Memory gray level:4096


X-ray Generator:
Generate direct: from bottom to top
Anode Voltage: 140kv

Cooling / Duty Cycle: Oil Cooling /100%

Computer Character :
Computer CPU: Intl Core 2 Duo 3400, 2.6GHz, 1MB, L2 Cache and 800Mhz FSB Little low version, Motherboards: Intel G41, Bus architecture: Integrated Graphics,5PCI, 1PCI Express *1and 1PCI BX press *16 , Memory: 2GB 1333MHz DDR3 RAM, with Minimum2 total DIMM slots. Better, Hard Disk drive: 500GB 7200 rpm serial ATA
Other Characters
Support Video image storage and screening system
Extension Rollers: Optional (50cm length roller)
UPS camera system and photographic system Optional
Support card reader operator access
CD DVR/RW unit: Optional
it have vents and transparent parts
Duty Cycle: 100% without initial time
Computer system: XP system
Two LCD monitor: 17 inch DELL brand or 19inch monitor

Operating Environment :
Operation temperature/Humidity: 0-45/20%-95%(non-condensing)
Storage Temperature/Humidity: -40~+60 / 5%~95% (non-condensing)
Operation Power: 220VAC(±10%)50±3Hz (100VAC,110VAC,120VAC,200VAC)
Power Consumption: 1.4 KW (max), 1.3KW(working)
Noise: <58db
