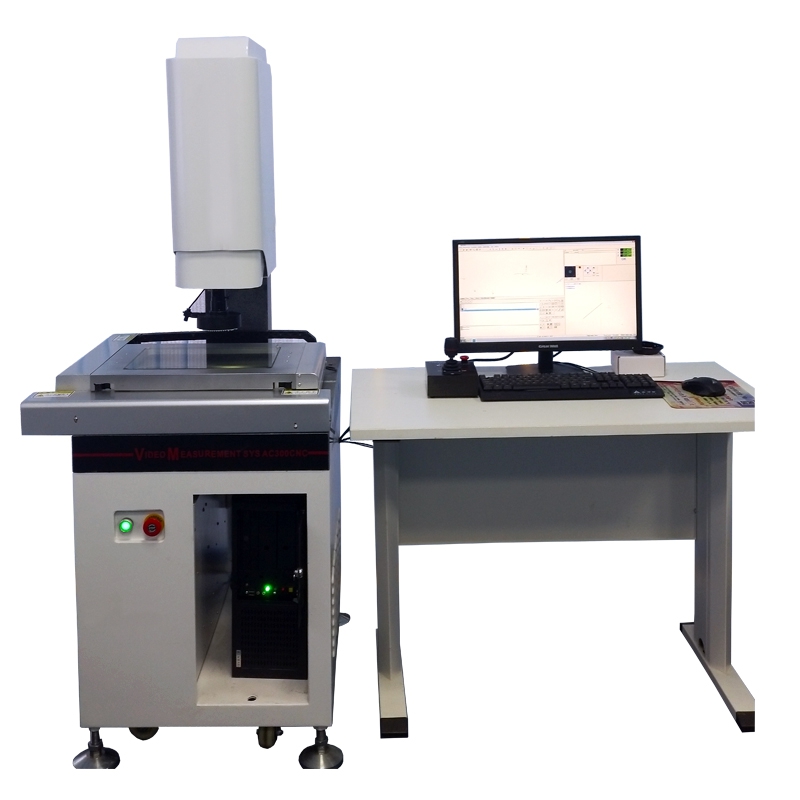

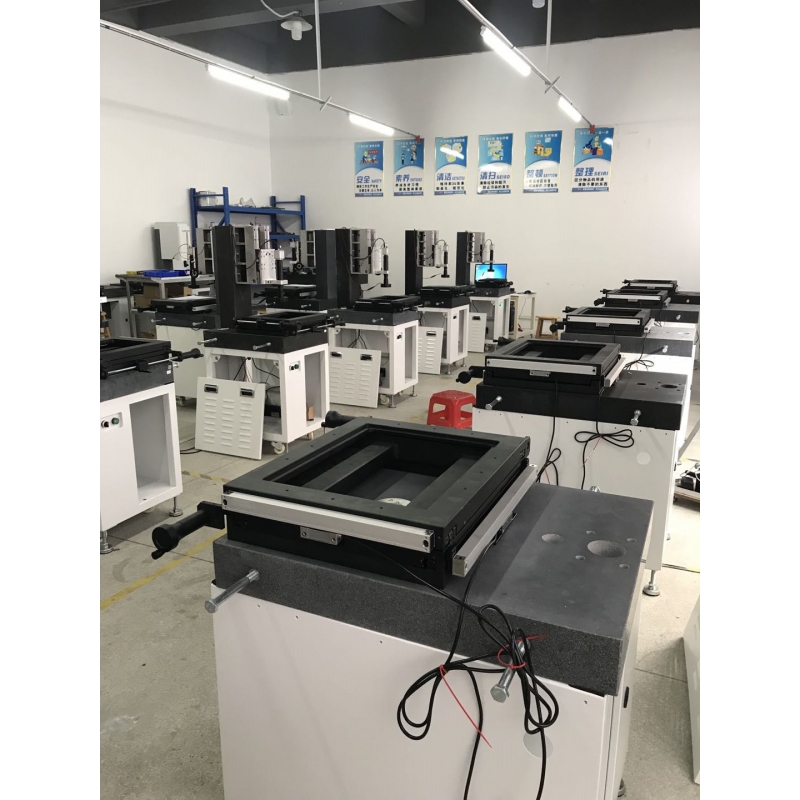

Optical Test Equipment

Model

AC300-CNC

AC400-CNC

AC500-CNC

XYZ Travel Range(mm)

300x200x200

400x300x200

500x400x200

Dimension(mm)

850x1300x1550

850x1300x1550

1200x1500x1550

Metal Table Size(mm)

460x360

460x360

660x560

Glass Table Size(mm)

340x250

340x250

540x450

Weight(kg)

250

300

450

Max Load(kg)

20

25

25

X ,Y Accuracy(μm)

3.0+L/200

Z Accuracy(μm)

5.0+L/100

X,Y Move Speed

0-200mm/S(Can optional)

Z Move Speed

0-100m/S(Can optional)

Repeatability(mm)

 0.003

Control Mode

 Software+Joystick

Linear scale

0.001mm glass linear scale

X,Y Guide

High Accuracy cross roller guideway

Z Axis Guide

Taiwan“Hiwin”H grade linear guideway

Z Screw

Taiwan“TBI” ball screw

Bearing

Japan “NSK” radial ball bearing

Motor

DC servo motor, positioning accuracy≤0.003mm

Camera

       SBK-HC738 1/3 inch 600 Line color CCD(white balance function)

Video Card

High resolution color video card

Light

Profile

LED cold light,parallel light

surface

4 ring 8 segment LED cold light,with segmented independent control & 256 level programmable brightness adjustment

Optical

1:6.5 Manual zoom lens

Magnification

optical:0.7~4.5×;image:24~158X

Software

SBK-CNC-C automatic software

Computer

Industry computer

Power

220V/50Hz/3A

Working environment

Temperature 20℃±2℃,temperature change<2℃/hr,Humidity 30~80%

Desk

Built-in switch power, controller, motor driver, power control switch, indicator light, emergency stop switch, mobile roller

Warranty

12 Month
