Technical parameters :
|
Model |
W200 |
W300 |
|
Measuring range(mm) |
200*100*200 |
300*200*200 |
|
Machine size(mm) |
950*845*1285 |
1050*845*1285 |
|
Weight(kg) |
150 |
190 |
|
Max. load(kg) |
20 |
20 |
|
Accuracy of X-Y axis |
3+L/200µm |
|
|
Accuracy of Z axis |
5+L/200µm |
|
|
XYZ resolution |
1.0μm (option 0.5um, 0.1um scale) |
|
|
Repeatability(mm) |
0.003 |
|
|
Linear encoder |
glass linear scale |
|
|
Camera type |
SBK-HC536 1/3 inches 700 lines industrial color camera |
|
|
Liner guide |
Z axis: Taiwan“HIWIN” P grade linear guideway; XY use "V" type linear guideway |
|
|
Optics |
6:5:1 continual zoom step lens |
|
|
Magnification |
optics zoom ratio: 0.7-4.5X; image zoom ratio: 24-158X |
|
|
Software |
SBK-E manual 2.5D measure software |
|
|
Control system |
SBK3000 control box, USB port, adjustable light |
|
|
Profile illumination |
LED cold lighting,256 level programmable brightness adjustment |
|
|
Surface illumination |
LED cold lighting with segmented independent control & 256 level programmable brightness adjustment |
|
|
Operated mode |
handle wheel |
|
|
Option device |
0.5X,2X extend lens |
|
Characteristics:
♦ Precision transmission equipment design to achieve rapid movement.
♦ The pillar and the base adopt high precision granite structure and are stable and reliable.
♦ It is equipped with SBK-E multi-functional measurement software to meet different measurement needs.
♦ DXF files can be imported for fast detection.
♦ Measurement data can be imported into Word, Excel and AutoCAD.
♦ The report output function is full of pictures and texts, and the test results can be easily output.
♦ Three-axis precise cross roller guide ensures machine accuracy and service life.
♦ High-definition lens and high-resolution CCD, high-definition measurement of products.
♦ The industry‘s advanced card lens, easy to achieve rate switching.

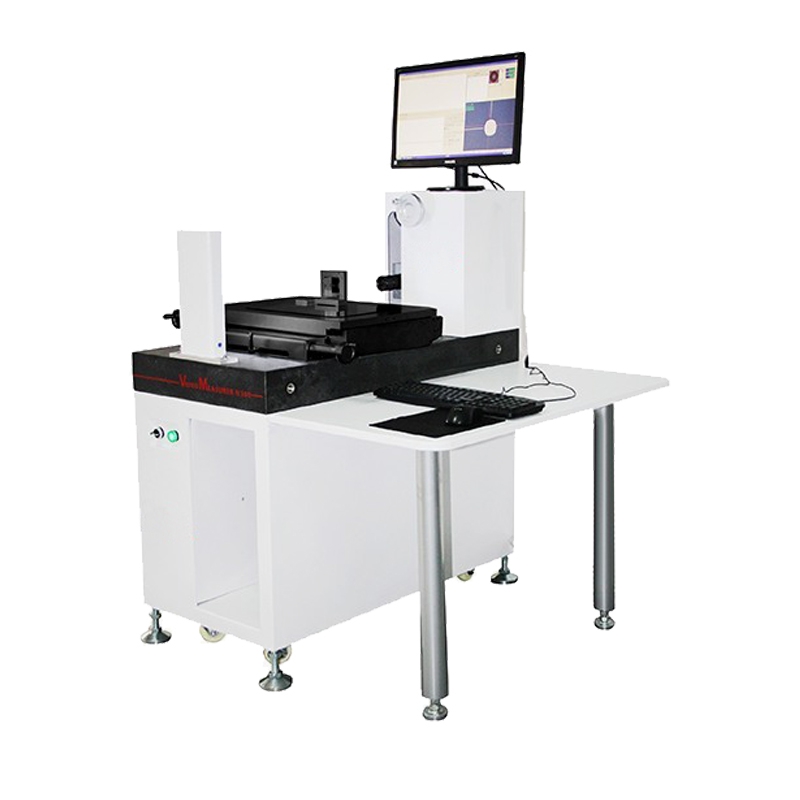

Horizontal image measuring instrument
Measuring function is better than horizontal projector, solving the warpage measurement of drills, cutters, grinding wheels, milling cutters and special products.
