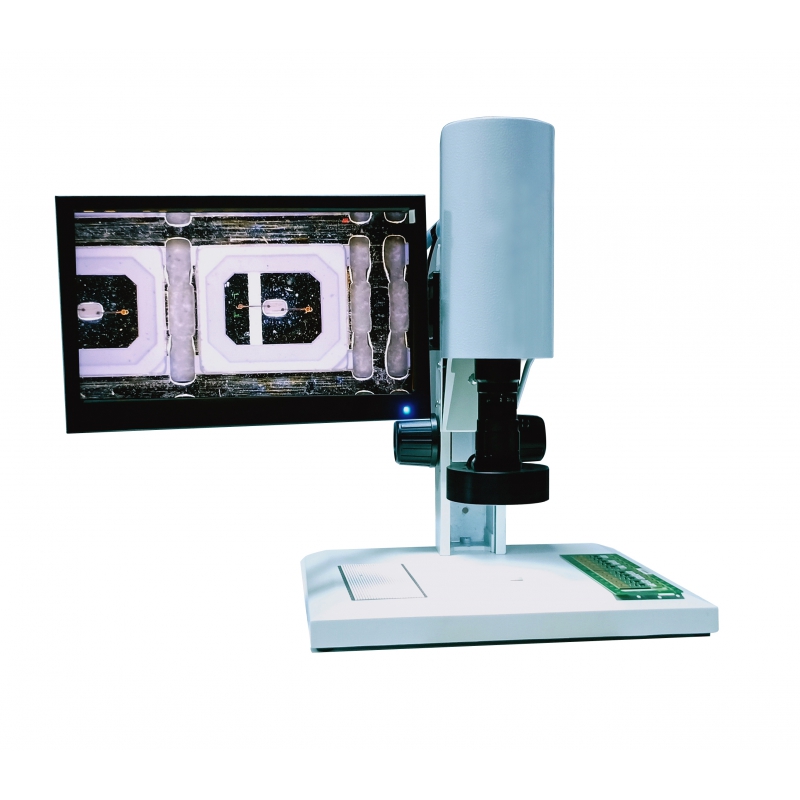

Video microscope also called digital microscope, samples can be viewed at a completely new angle on the display, eliminating the need for eyepieces, freeing eye fatigue, and displaying and preserving high-quality full-color still images.
The video microscope adopts an integrated body design, and a full set of optical systems is independently developed, with functions such as light source switching, continuous zooming, and autofocus. With optional measurement function.
Features:
1. Help you speed up the work process!
A, No eyepiece is needed, the large display screen is more conducive to observation;
B, Real-time focus, no manual waste of time;
C, Continuous zoom, quick change of magnification.
2.Help you discover more details!
A, Unique HDR function edge enhancement mode, the image is clearer;
B, Electronic magnification can reach 180X to reproduce details;
C, 2 million high-definition camera, capturing images at 60 frames per second.
3. Bring you more convenience!
A, Can store pictures and dynamic videos;
B, Simple human-machine interface makes your operation more handy;
C, According to customer sample characteristics, a variety of light source matching modes are available
Multiple configurations for different needs:
|
High matching |
HDMI high-definition 2 million digital camera with auto-focus function, 11.6-inch HDMI high-definition display. It is mainly used for observing products. It has a very good effect and can achieve automatic focusing at any position. Mainly for high-definition observation of products, no need to save pictures for customers to use |
|
Medium matching |
HDMI high-definition 2 million digital camera with SD memory card, without auto-focus function, 11.6-inch HDMI high-definition display, mainly used for product observation, and customers who need to save pictures have very good results. Optional with measurement function |
|
Low profile |
VGA HD 200 camera with SD memory card, without autofocus function, 11. 6 inch VGA HD display. It is mainly used for observing products, and customers who need to save pictures have very good results. Notes: 1. You can choose an external 21-inch or 24-inch HD display. 2. You can choose to have a measurement function. |
Application Industry:
Electronic, Phone, Hardward, Car, Clocks, Mechanical
Parameter:
|
Type |
Item |
Specification |
|
Video microscope |
Size |
290*320*480 |
|
Specimen specifications |
Height Max:50mm |
|
|
Optical parameter |
System magnification |
24X-180X |
|
Optical magnification |
0.7X-4.5X |
|
|
Resolution |
4.5X:<3.49μm 0.7X:<11.18μm |
|
|
Working distance |
88mm±2mm |
|
|
Field of view(D*H*V)mm |
Min. times:8.2*7.1*4.0 Max. Times: 1.3*1.1*0.6 |
|
|
Camera parameters |
Image sensor |
COMS color |
|
Limited pixels |
200W Pixel |
|
|
Sensor size |
1/2.8" |
|
|
Menu |
yes |
|
|
Operation method |
USB Mouse / Controller |
|
|
Output method |
HDMI |
|
|
White balance |
Manual / Auto / One-button white balance |
|
|
Exposure method |
Automatic / Manual |
|
|
Display frame rate |
1080P@60FPS |
|
|
Scanning method |
line-by-line scan |
|
|
Electronic shutter speed |
1/50S(1/60S)~1/10000S |
|
|
Operating temperature |
0℃~50℃ |
|
|
Digital amplification |
support |
|
|
Storage function |
Support SD card storage |
|
|
Instrument configuration |
Light source optional |
Ring light / side light / bottom light / external coaxial light |
|
Lens optional |
Standard / Coaxial |
