Paper and Packaging Test Machine

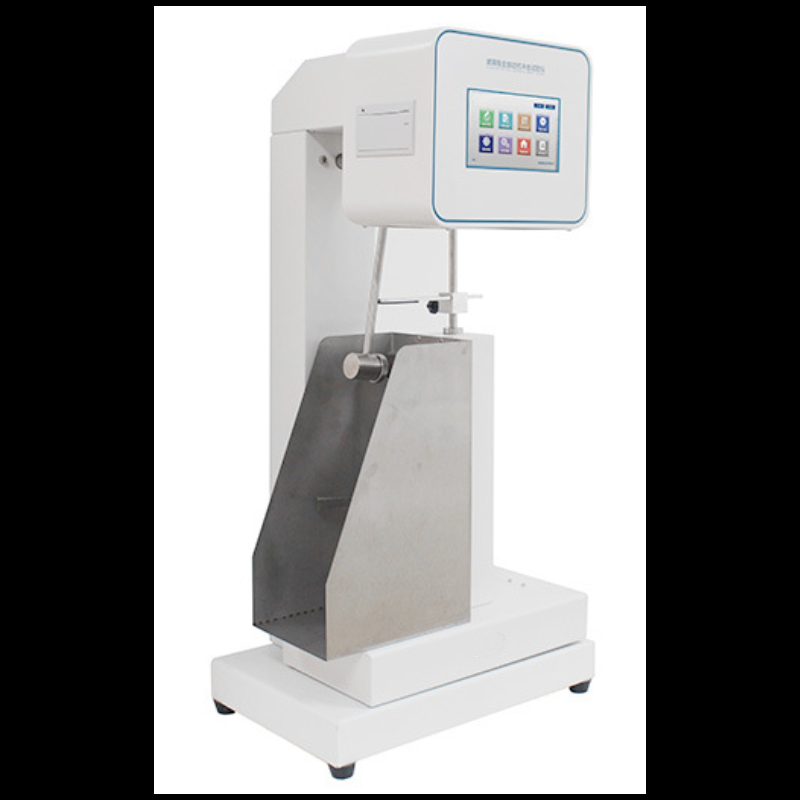

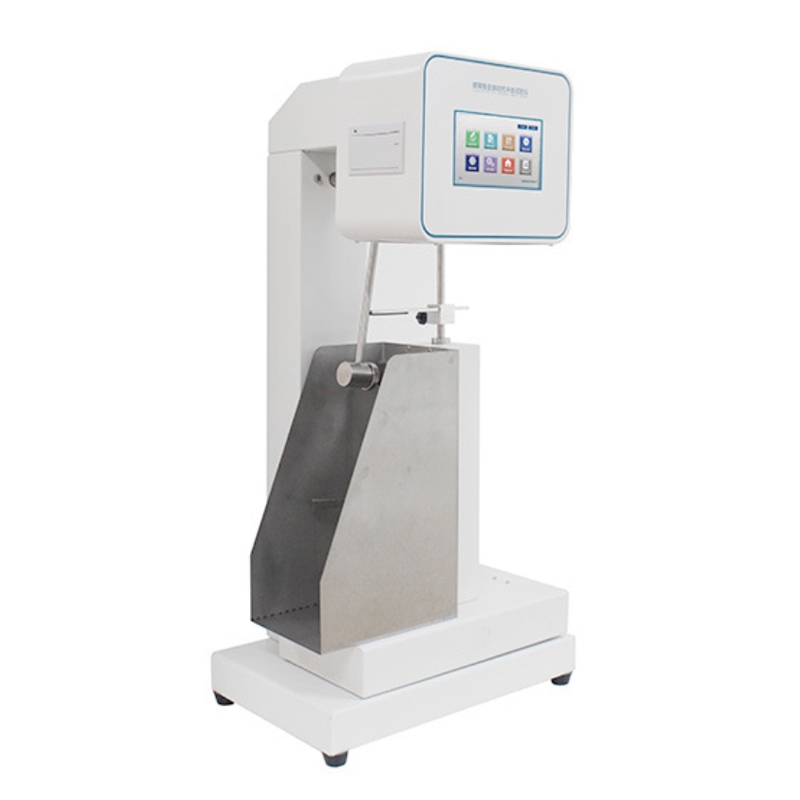

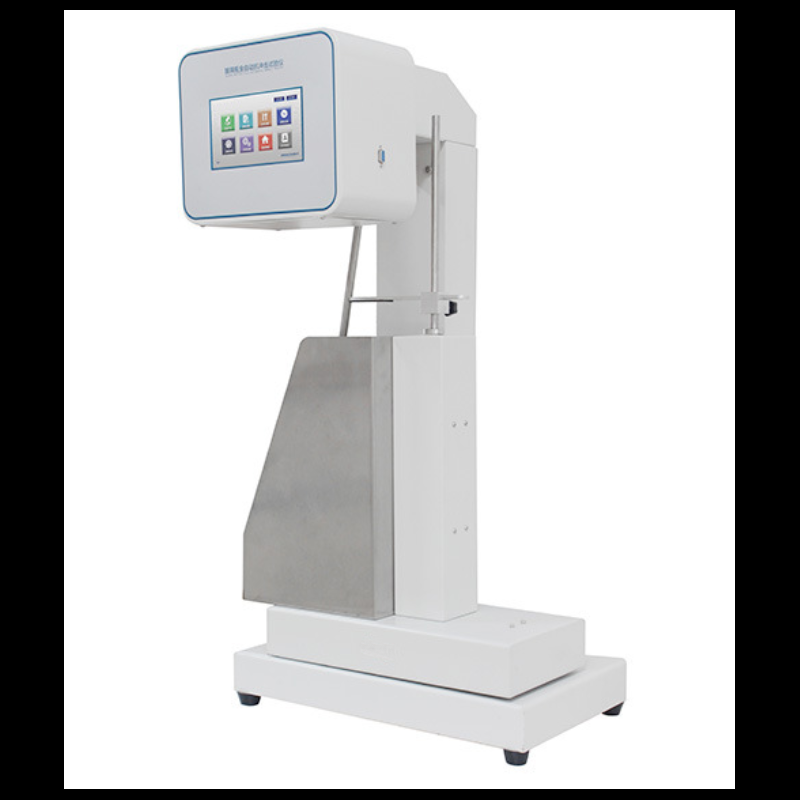

ZT-7048 Glass Bottle Impact Resistance Tester

    Glass Bottle Impact Resistance Tester

    The glass bottle impact tester is suitable for testing the impact resistance of various bottled products such as beer bottles, wine bottles, beverage bottles, infusion bottles, and penicillin bottles. The glass bottle impact tester is a testing instrument for various breweries, glass bottle manufacturers, quality inspection institutions, and pharmaceutical production enterprises.


    Product Features
    :

    1. The instrument has a fully automatic electronic measurement mode.

    2. The instrument comes with a built-in LCD display screen, which can simultaneously display impact energy and angle values.

    3. Equipped with a micro printer with the function of printing experimental data.

    4. Equipped with dual modes of passing and destructive testing, allowing users to freely switch between them.

    5. Equipped with ISP remote online control and upgrade functions, capable of changing tests and functions according to the user‘s requirements.

    6. The sample loading fixture of the instrument can freely and flexibly move up, down, and horizontally, making it easy for users to adjust the position of the sample bottle during testing.

    7. The instrument design and processing manufacturing strictly comply with the various parameter requirements of national standards for materials and accessories, and comply with the energy conversion theorem, providing reliable guarantee for accurate testing and experimentation for users.

    8. The suspension and positioning of the instrument pendulum are precise and stable, and the pendulum rotates and releases freely. The instrument is also equipped with a stainless steel safety cover, and the design of the instrument is highly user-friendly.



    Testing Principles:

    According to the principle of energy conservation conversion, the energy of each impact of the pendulum on the sample bottle is determined by the potential energy when the pendulum is suspended and positioned before impact. When the angle at which the pendulum is suspended is a certain value, the potential energy of the pendulum is also a certain value, and the impact energy of the pendulum on the glass bottle is also a certain value. According to the fixed relationship between the suspension angle of the pendulum and the impact energy of the pendulum, a certain amount of energy is preset for the pendulum to be released, so that its impact point impacts the sample bottle placed on the sample loading fixture. Then, observe whether the sample bottle is damaged after being hit, and judge the impact resistance of the sample bottle based on this.



    Testing Standards:

    This instrument meets the standards: GB/T 6552-86



    Testing Applications:

    Suitable for testing the impact resistance of various glass bottles such as beer bottles, soda bottles, cola bottles, infusion bottles, and penicillin bottles. It is also suitable for testing the impact resistance of all containers with requirements for impact resistance.



    Product Parameters:

    Max. impact energy

    2J

    Measurable bottle diameter

    Φ 20-130mm (suitable fixtures can be customized according to needs)

    Energy loss

    ≤ 1.5% FS

    Resolution

    When the impact energy is greater than 0.6J, 0.1J per grid

    When the impact energy is less than 0.6J, 0.05J per grid

    External dimensions

    530*350*700mm (L*W*H)

    Net weight

    20 kg
