Paper and Packaging Test Machine

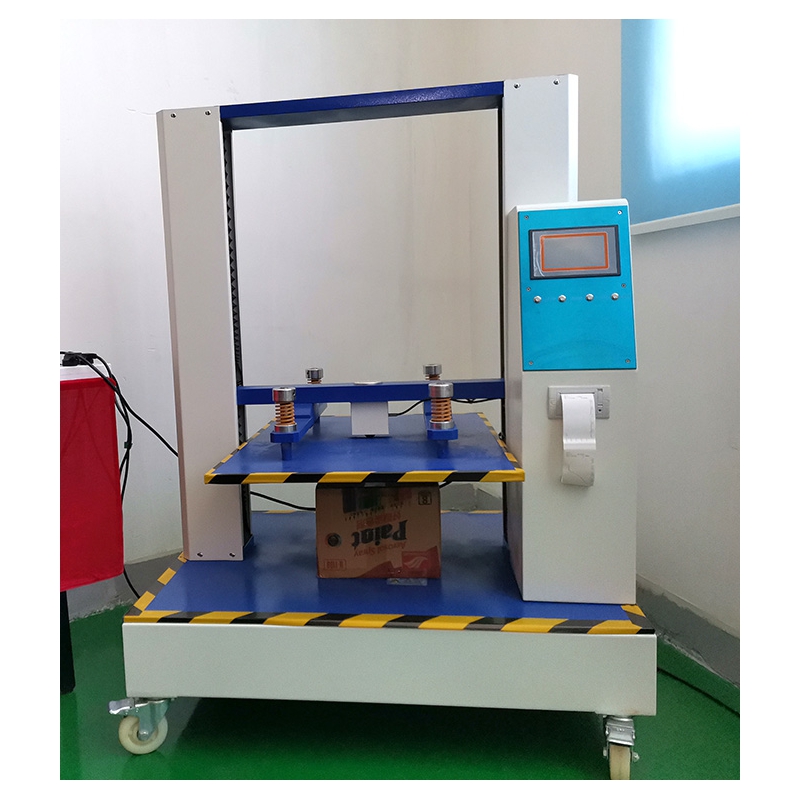

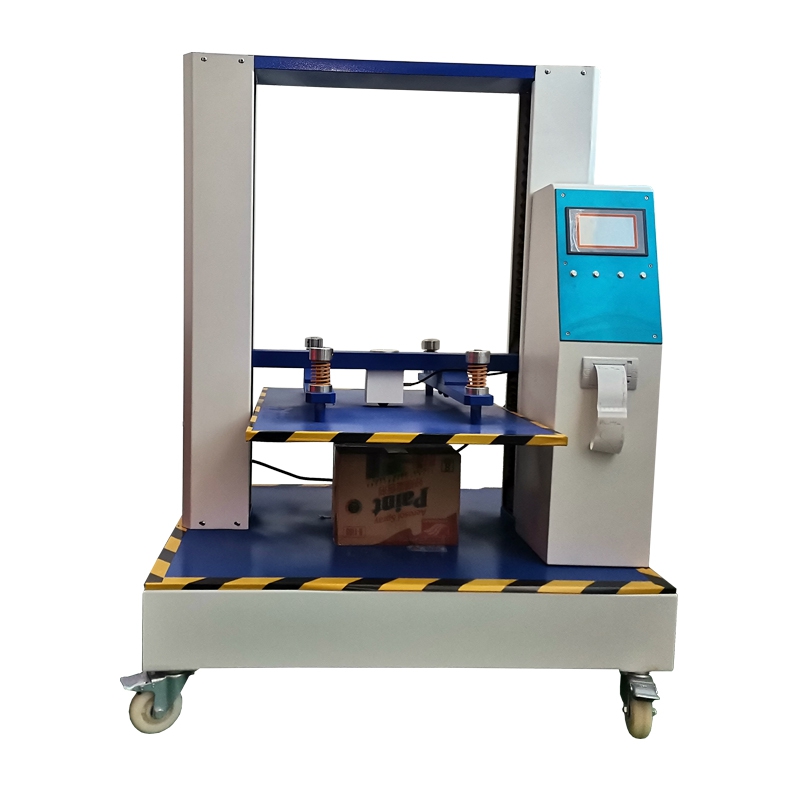

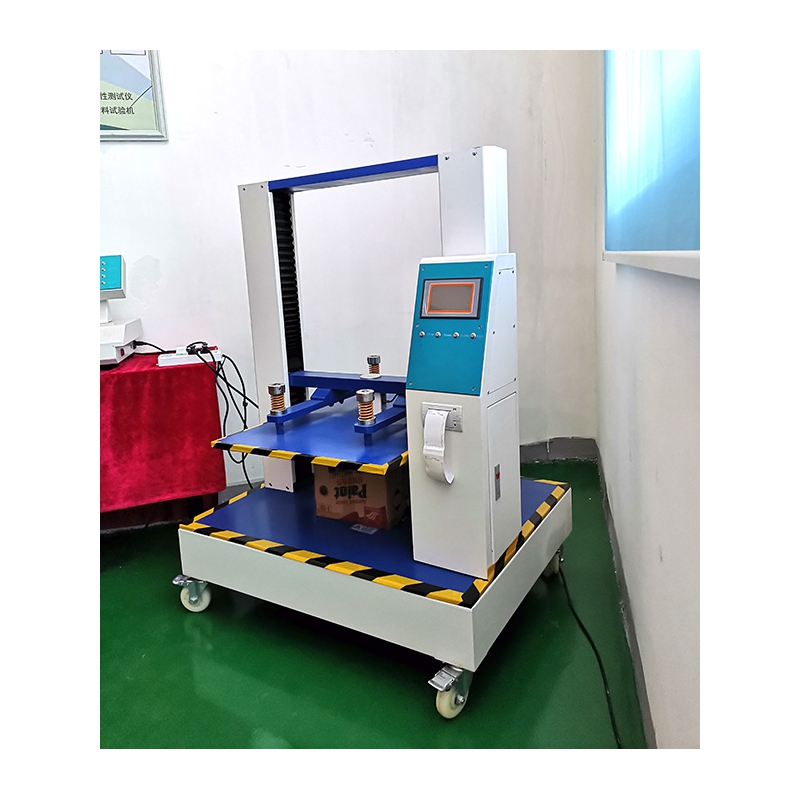

ZT-7001 Carton Box Compression Tester BCT Tester

    Carton Box Compression Tester BCT Tester

    About the machine:

    PLC Control BCT Carton Box Compression Tester BCT Tester is used for measuring the pressure strength of cartons, containers, etc, for inspecting the pressure-resistance and strike- endurance of packing materials during transportation or carry.



    Design criteria:

    TAPPI-T804, JIS-20212, ASTM-D642, BS EN ISO 12048



    Specifications:

     Unit (switchable)

     Kg, Lb, N

     Capacity (optional)

    2T ,5T

    Load Resolution

    1/100,000

     Stroke (exclude the grips)

      400 mm

     Load Accuracy

      ≤0.5%

    Test Space (L×W×H)

    1500×1500×1500mm

    Speed of Compression

    12.7 mm/min

    Operation Mode

    PC

    Report Items

    Serial number, Peak value, Average value, Designated holding pressure value; all memorable

    Structure

    AC Frequency Conversion Motor ( Taiwan);
    Imported screw rod ;4 sensors; LED display

    Dimension (L×W×H)

    2370×1500×2100mm (can be custom made)

     Power

     1ø, 220v/ 50Hz

     Weight

     Approx. 850kg

    Safety Devices

    Overload protection, overvoltage protection & limited position protection device

    Standard

    TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642



    Features:

    1. Using a single-screen operation; do not need to switch the screen;
    2. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;

    3. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
    4. The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
    5. Choosing translational, comparative mode at the same time to make a number of curve data comparison;
    6. With a variety of measurement units, Measure In Imperial & Metric are switchable;
    7. With self-return & auto-correction function;
    8. With automatic magnification function, in order to achieve the most appropriate size of the graphics;
    9. With the user-defined Test methods; with experimental data analysis function;
    10. It can do test of compression, bending, pressure holding & fatigue.

    11. With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.
