Introduction:

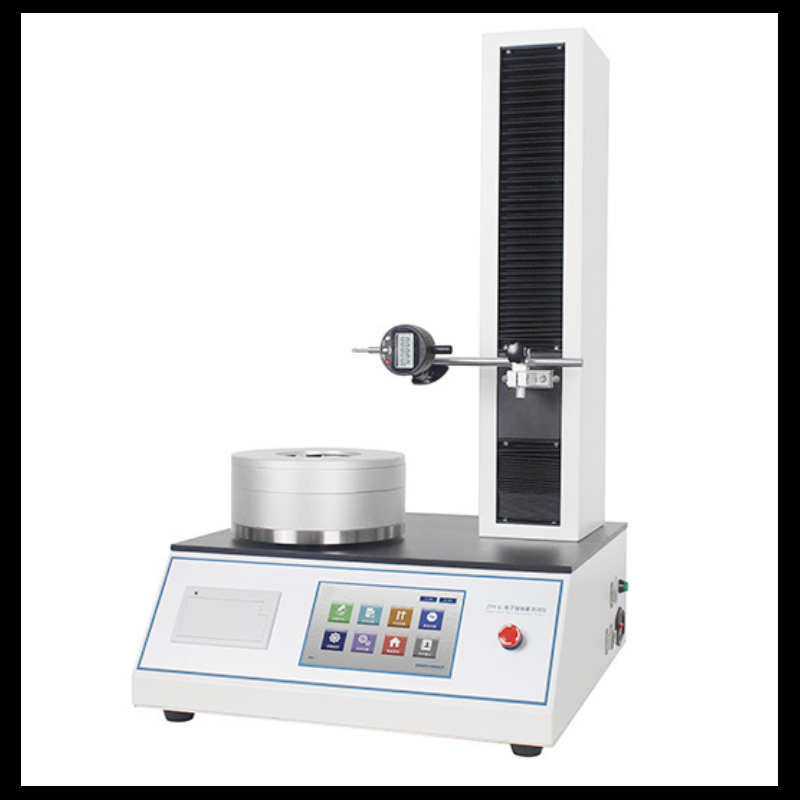

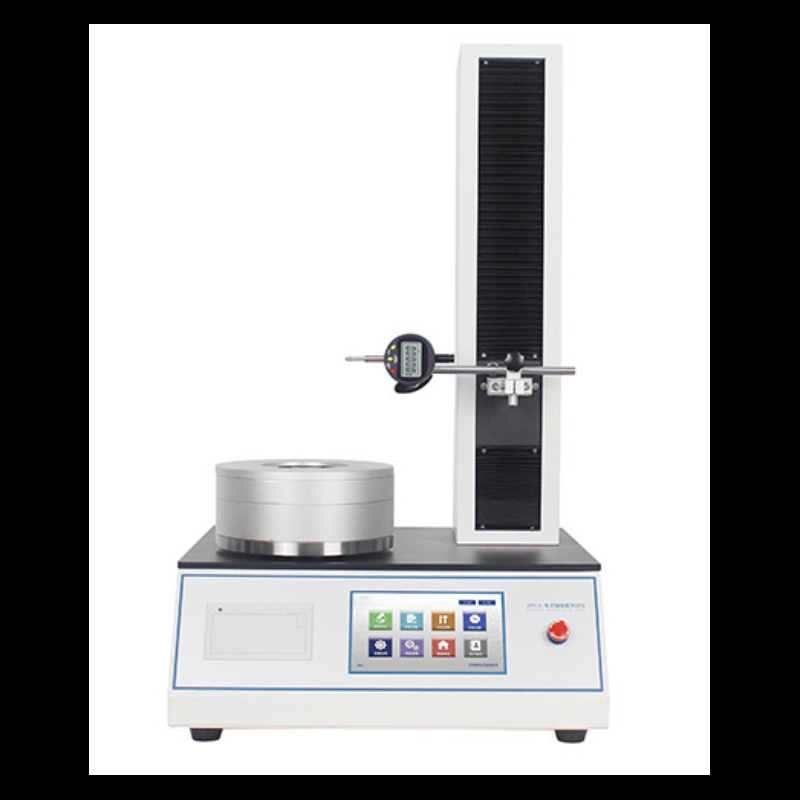

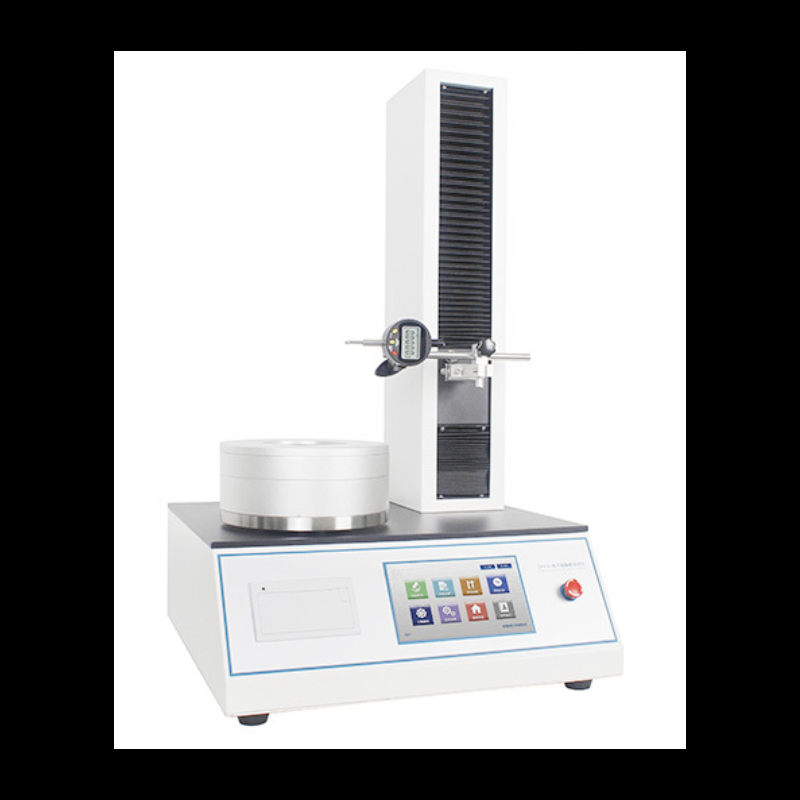

The verticality test of bottles is related to the smooth operation of the automatic filling process, and is an important indicator for glass bottles, plastic bottles, and other products. The axis deviation tester is suitable for detecting the vertical axis deviation (circular runout) of materials such as ampoules, penicillin bottles, PTE bottles, wine bottles, etc. It is strictly designed and manufactured in accordance with the 2015 national drug packaging material standard and is an indispensable instrument for food factories and drug inspection institutions.
Compliant with standards
GB/T 8452-2008 Test Method for Vertical Axis Deviation of Glass Bottles and Jars
YBB00192003-2015 Vertical Axis Deviation Measurement Method
Technical indicators:
Instrument range |
0-12.7 mm/0.5s |
Graduation value |
0.001 mm/0.00005s |
Sample diameter |
5mm~190mm |
Measurable height |
5 mm~400mm |
Electric chuck speed |
2 r/min |
Head lifting |
300 mm/min (electric) |
Environmental temperature |
15~50℃ |
Environmental requirements |
Humidity: 10~90%, no condensation |
Power supply |
AC 220 V50 Hz |
External dimensions |
600*480*800mm L*W*H |
Weight |
58kg |
