Specifications:
|
Capacity |
(Optional) 10, 20, 50, 100, 200 kg |
|
Resolution |
1/250,000 |
|
Precision |
< 0.25% |
|
Operation Mode |
Computer |
|
Display Mode |
LCD |
|
Platen |
100×100 mm or depending on the diameter of the flat crush sample |
|
Compressed Space |
90 mm |
|
Platen Parallelism |
± 0.05 mm |
|
Ring Crush Sample |
152×12.7 mm |
|
Edge Crush Sample |
25×100 mm |
|
Test Speed |
12.7 mm/min |
|
Dimension(L×W×H) |
790×510×1060 mm |
|
Weight |
Approx. 51 kg |
|
Power |
AC220V, 1.5A |

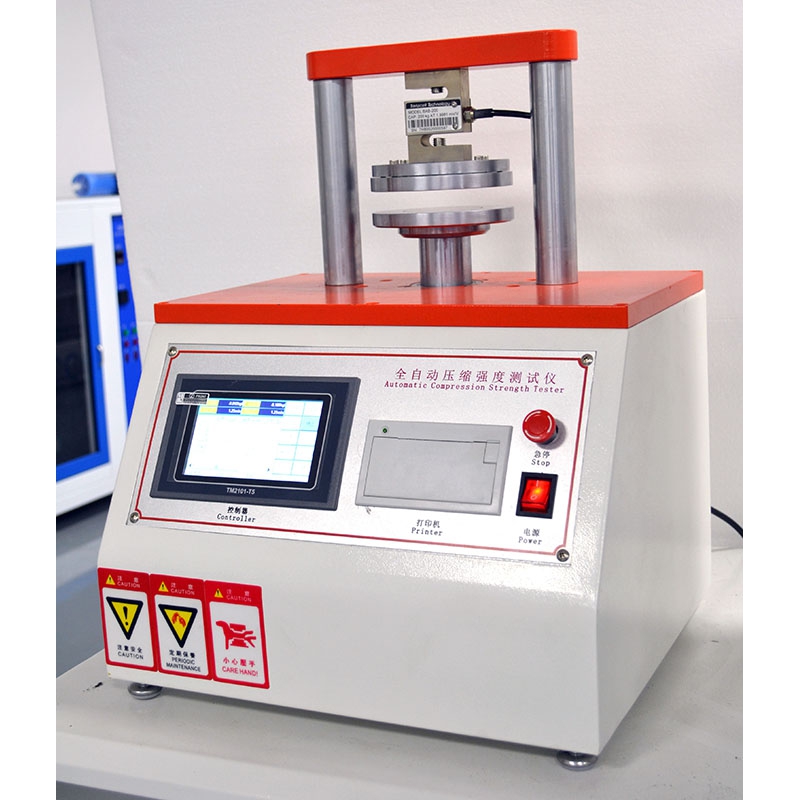

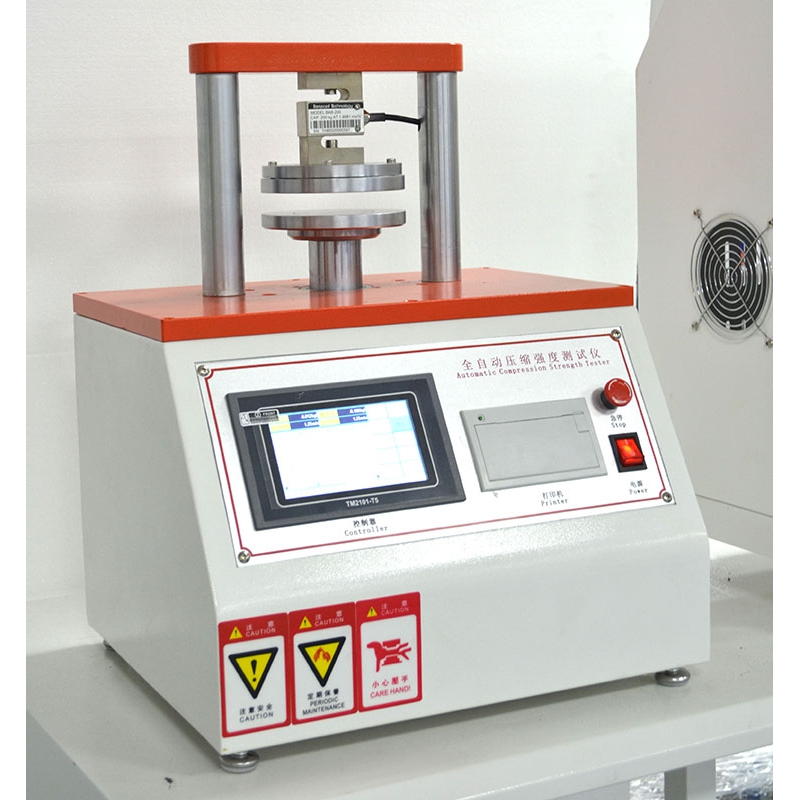

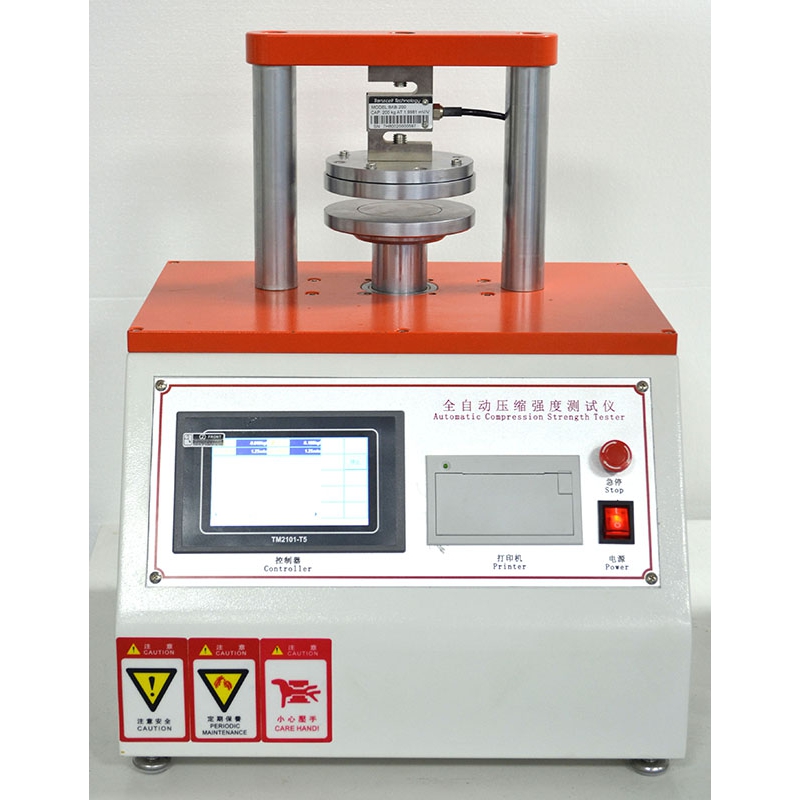

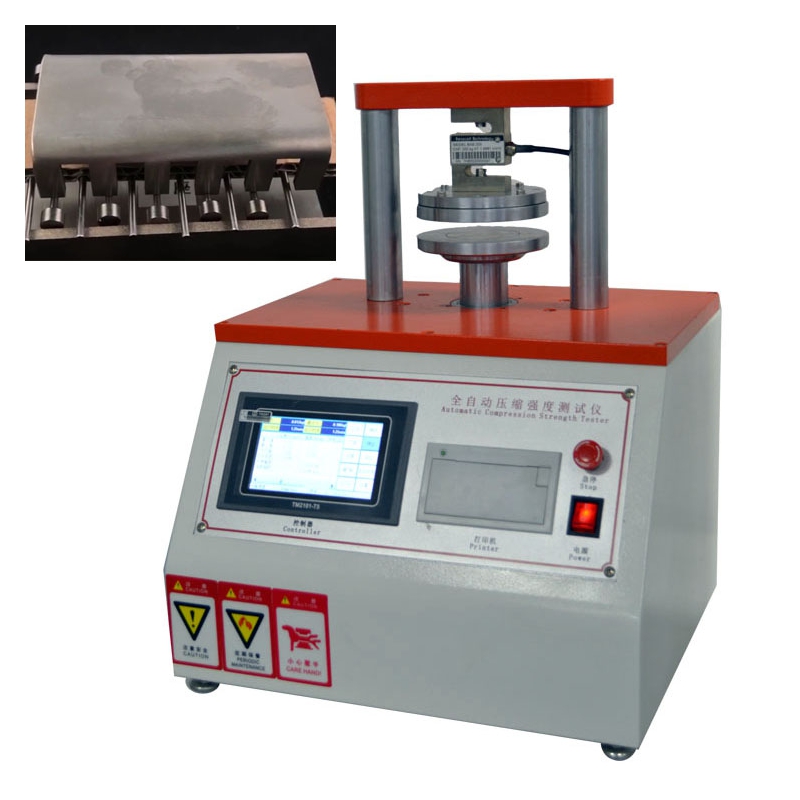

Paper Board Edge Crush Test Equipment ECT Test Instrument
1.Computer Servo
2.Multi-function
3.Ring crush & edge compressive
Equipment description
Paper Board Edge Crush Test Equipment is applied to test anti-rupture strength for raw paper, corrugated cardboard, leather, cloth and synthetic leather. Record the value of force, automatically keep the maximum value of fracture strength, decomposition degrees has improved 100 times than the needle display type. This equipment is important to control the quality product.
Corresponding standard
