Capacity (Optional) |
High Pressure 0~100 Kg/ cm2 (0.1kg/cm2) |
|
Unit |
psi, kg/cm2 |
|
Accuracy |
± 0.5% |
|
Pressure Range |
250~5600kpa |
|
Speed of Compression |
High Pressure 170± 10ml/min |
|
Specimen Clamping Force |
>690kpa |
|
Oil |
85% Glycerin; 15% Distilled Water |
|
Sensing method |
Pressure Transmitter |
|
Indicating Method |
Digital |
|
Display |
LCD |
|
Material of the Ring |
Stainless Steel SUS304 |
|
Opening in Upper Clamp |
31.5 ± 0.05 mm Diameter |
|
Opening in Lower Clamp |
31.5 ± 0.05 mm Diameter |
|
Motor |
Anti-vibration Motor 1/4 HP |
|
Operation Method |
Semi-automatic |
|
Dimension (L×W×H) |
430×530×520 mm |
|
Weight |
Approx. 64 kg |
|
Power |
1 , AC220± 10%, 50 Hz |
|
Power Capacity |
120W |
|
Standard Configuration |
Rubber Membrane 1 piece, Spanner 1 set, Correction Shim 10 sheets, Glycerin 1 bottle |
|
Optional Configuration |
Printer |
|
Standard |
JIS-L1004, L1018, L1031, K6328, P8131, P8112 |
Tester summary:

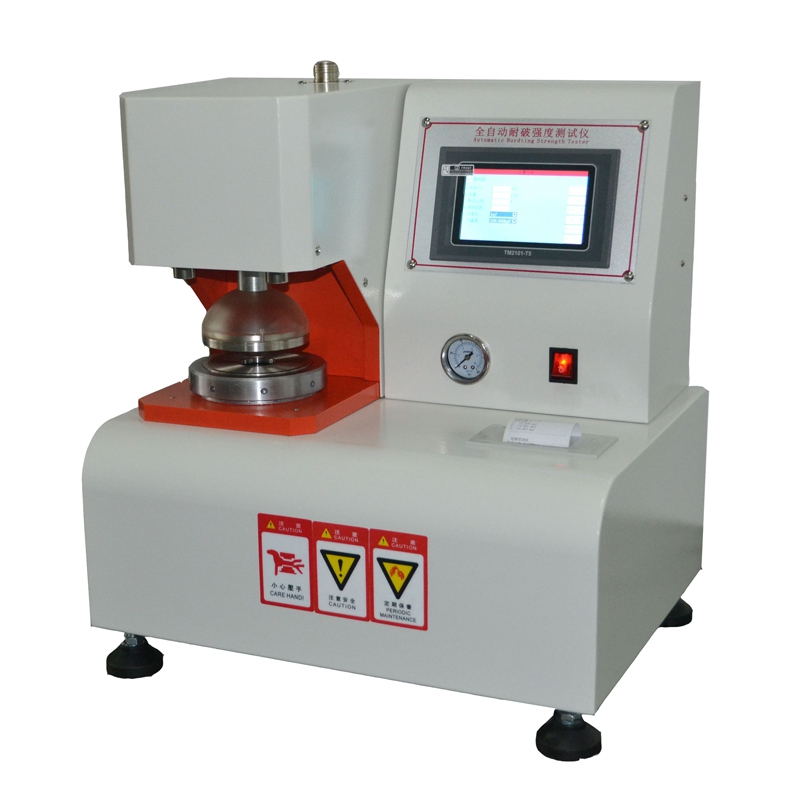

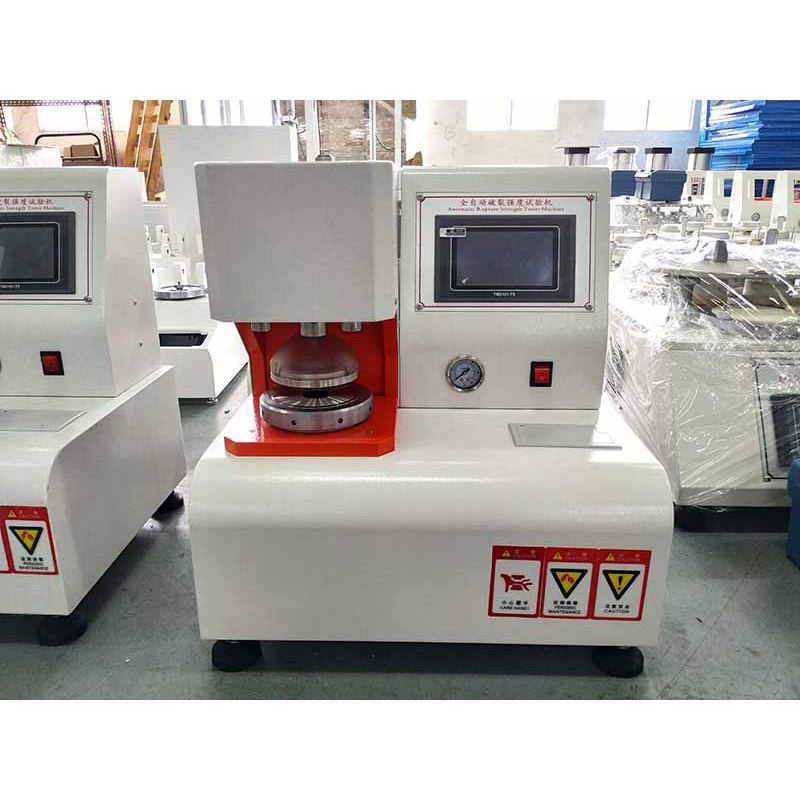

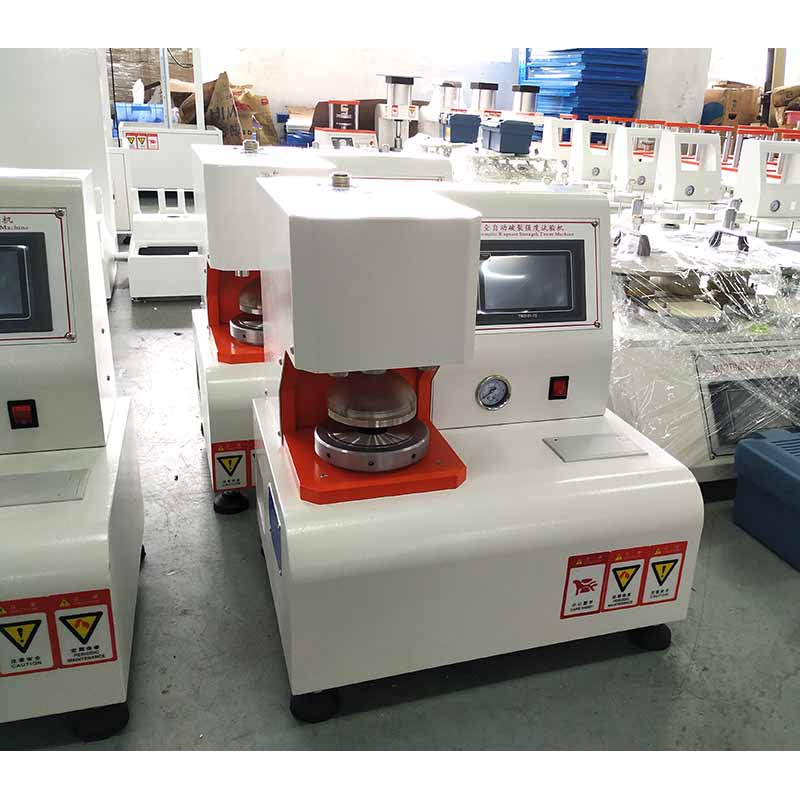

Mullen Corrugated Boxes Bursting Strength Tester is applied to test anti-rupture strength for raw paper, corrugated cardboard, leather, cloth and synthetic leather. This tester is fully automatic-type rupture strength tester, Just put into the testing material, the tester automatically detect, automatic testing, automatic hydraulic recoil and automatic computing, storage testing data and printing. It is an important tester for controlling quality of finished product and quality inspection
Applicable industry:
Mullen Corrugated Boxes Bursting Strength Tester applied to test the anti-breaking strength of boxes for packaging, which of electronics, electrical appliances, wires, hardware, bicycles, handbags, food, footwear, clothing, furniture.etc.
