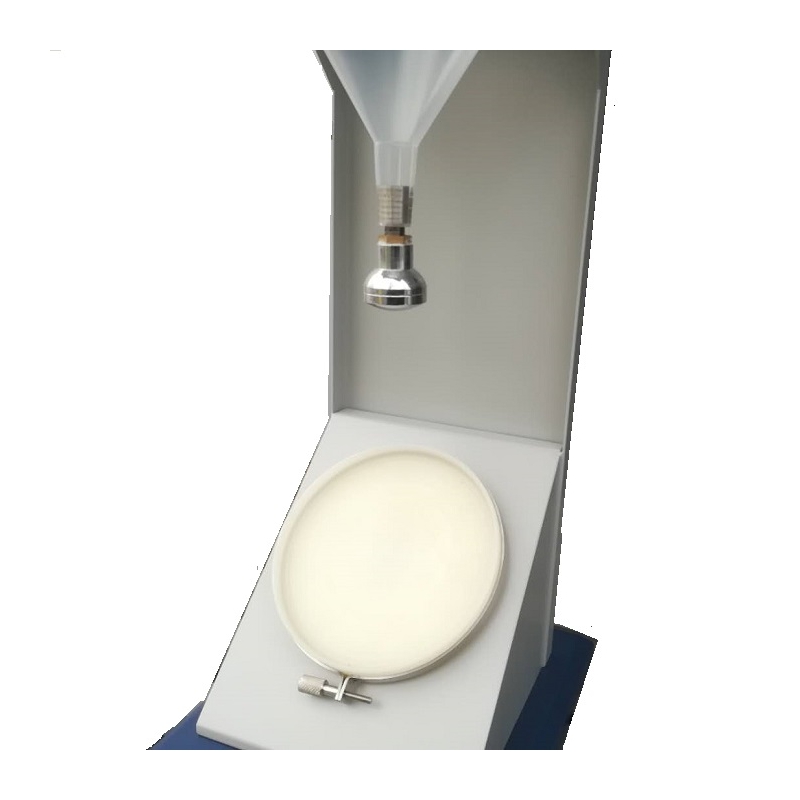

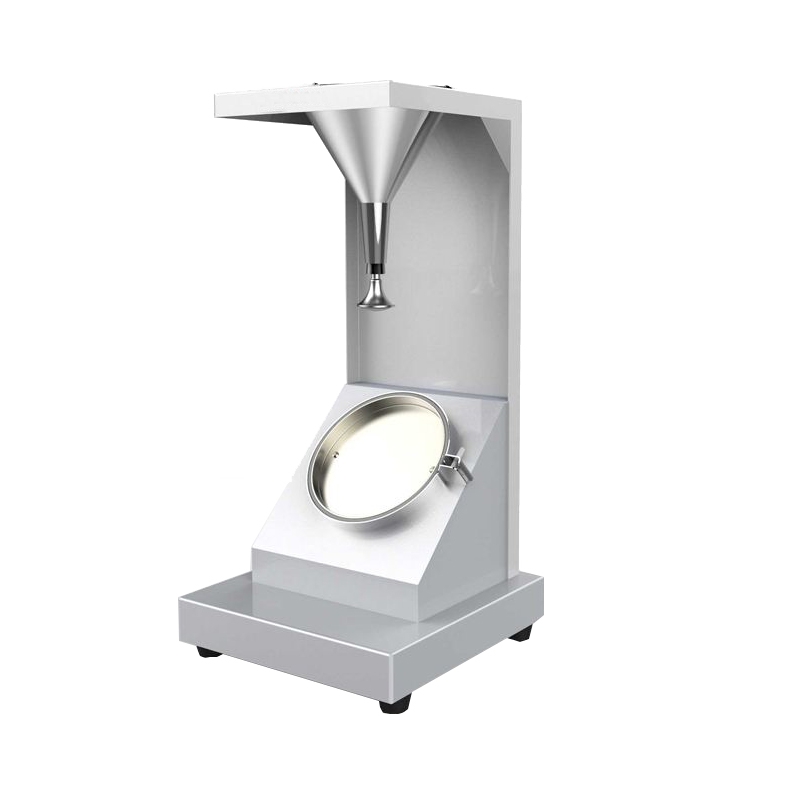

Paper Waterproof Testing Machine
Specifications:
Specifications:
1.Desigh criteria :JIS-P8137
2.Paper or paperboard tester meter
Paper waterproof testing machine is used to test the waterproof ability of paper and paperboard, splash all the water in the dropper on the specimen , user can check the trace of the water flow, then assess the specimen‘s waterproofness by comparing the standard.
Main technical parameters:
|
Specimen platform area |
350*200mm |
|
Inclination |
45 degree |
|
Dropper volume |
50ml |
|
Drop volume |
Each drop 0.1ml |
|
Length of water passage |
250mm |
|
Outside dimension (excluding pipets) |
(L*W*H)300*250*570mm |
|
Weight |
12.5kg |
