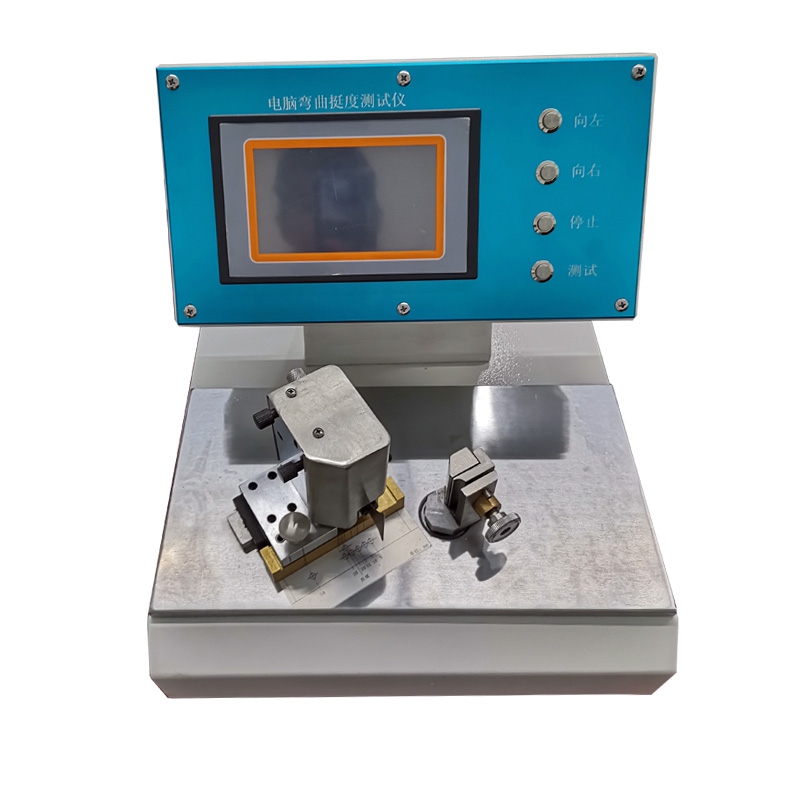

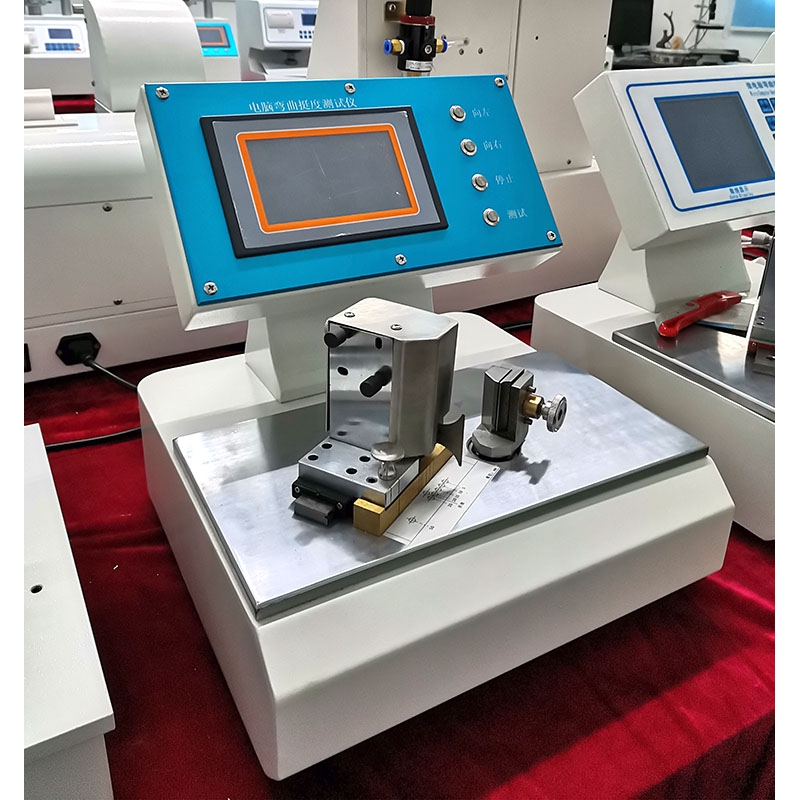

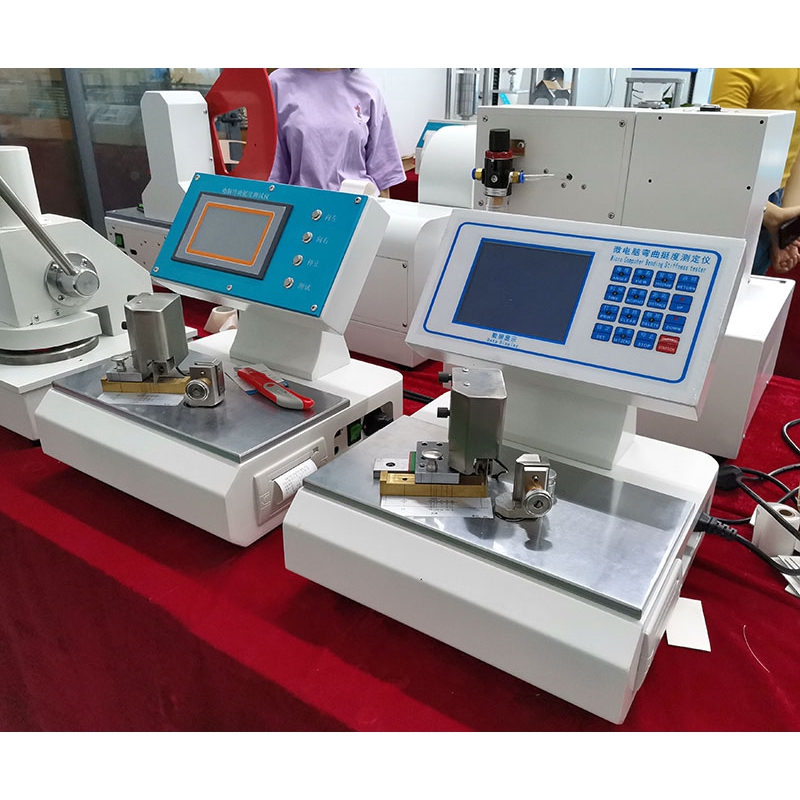

Automatic Paper Cardboard Bending Stiffness Tester
Technical parameter:
| Measuring range | (0~500) mN.m, (0~10000) mN |
| Measuring thickness | (0~3) mm |
| Accuracy | ±0.6mN below 50mN, the remaining ±1% |
| Resolution | 0.1mN |
| Indication variability | ≤1% |
| Bending length | (50/25/20/15/10/5) ±0.1mm |
| Bending angle | (±7.5o or ±15o) ±0.3 o (1~90 o adjustable) |
| Load arm length | 200 ° ± 20 ° / min |
| Data display | 5.7in LCD display with graph display |
| Printout | modular one-piece thermal printer |
| Size | 340mm*330mm*340mm |
| Weight | 15kg |
Introduction:
Automatic Paper Cardboard Bending Stiffness Tester is mainly used for detecting the bending stiffness of paper and paperboard. The bending stiffness can be used to detect the bending stiffness properties of sheet materials such as film, mica sheet, graphite sheet and composite material.
Meet the standard: GB/T 2314, GB/T 2236, ISO 5628, ISO 2493
