It is designed according to the relevant provisions of national standard GB8942 "Determination of paper softness".

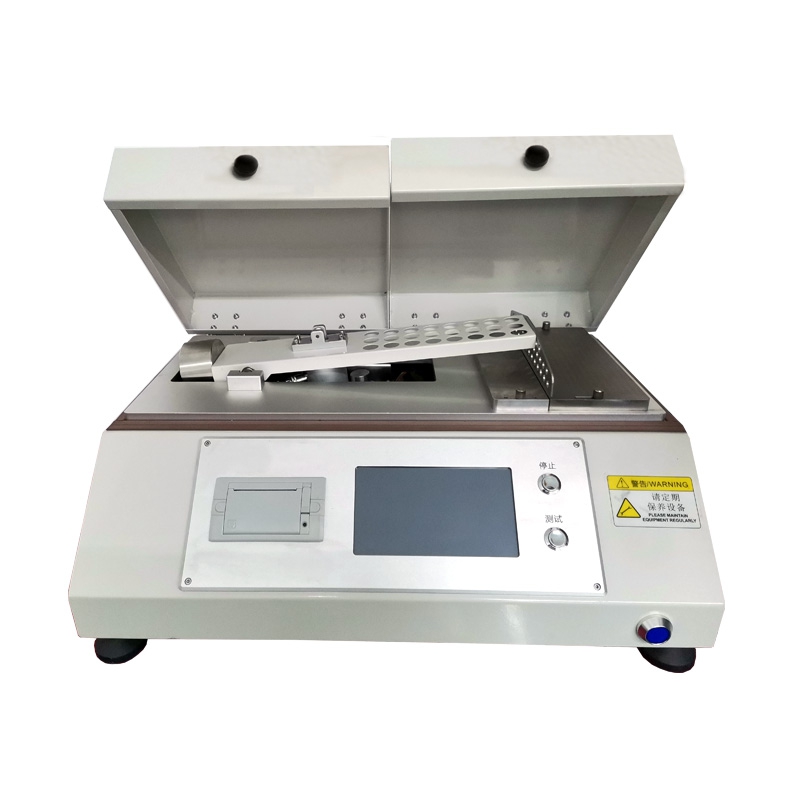

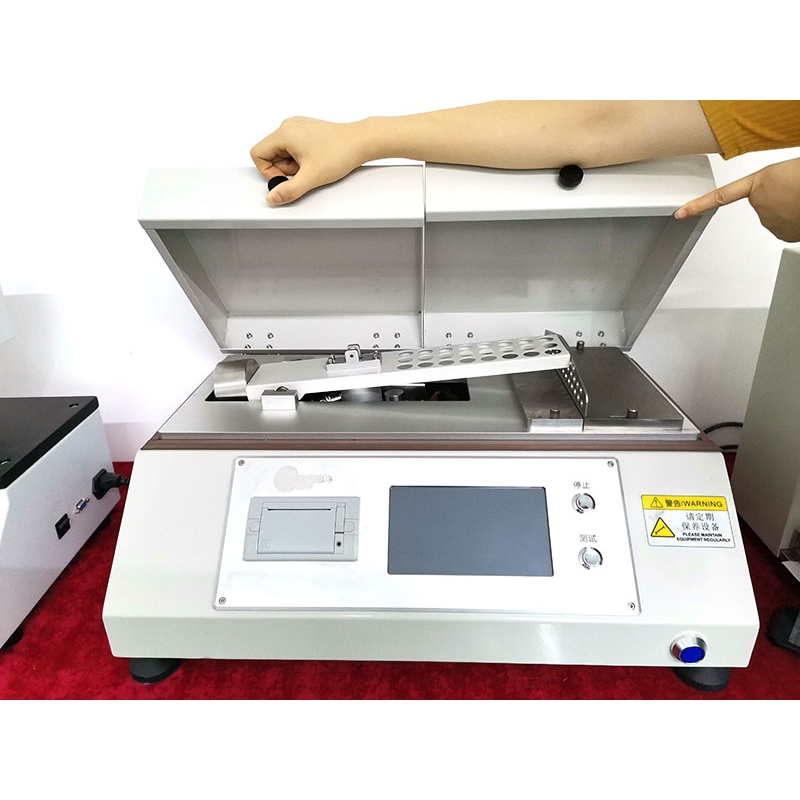

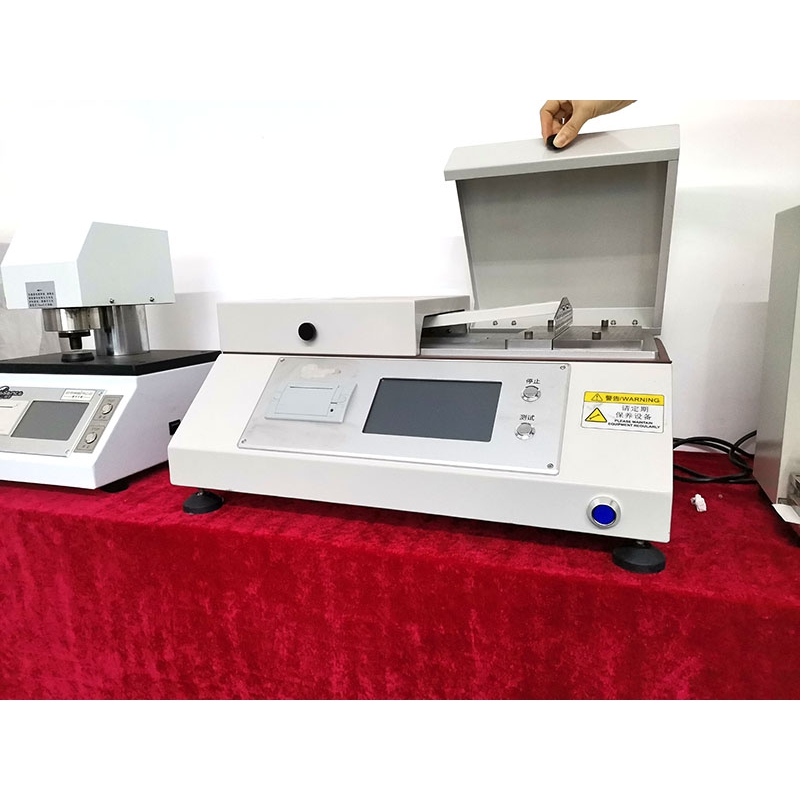

It is mainly used for the softness measurement of sheet-like soft software materials such as medium and high grade toilet paper, tobacco sheets and fabrics. The instrument test system adopts the digital circuit technology controlled by microcomputer, and uses the humanized touch screen display and operation interface, and the Chinese and English bilingual luxury operating system realizes the man-machine dialogue function. It has advanced technology, complete functions, reliable performance and easy operation. It is an ideal experimental equipment for paper, scientific research and quality inspection industries and departments.
Technical parameter:
| Measuring range | (10 ~ 1000) mN |
| Test speed | 1.2mm/s |
| Measurement time | 15s |
| Resolution | 1mN |
| Accuracy | ±1% |
| Penetration depth of the probe | 8 +0.5mm |
| Sample platform narrow width | 5mm, 6.35mm, 10mm, 20mm |
| Parallelism error on both sides of the sample table slit | ≤0.05mm |
| Display | Chinese and English 5-inch touch screen with curve display |
| Touch screen life | about 50,000 hours |
| Power supply | AC 220V ± 22V, 50Hz |
