Product introduction:

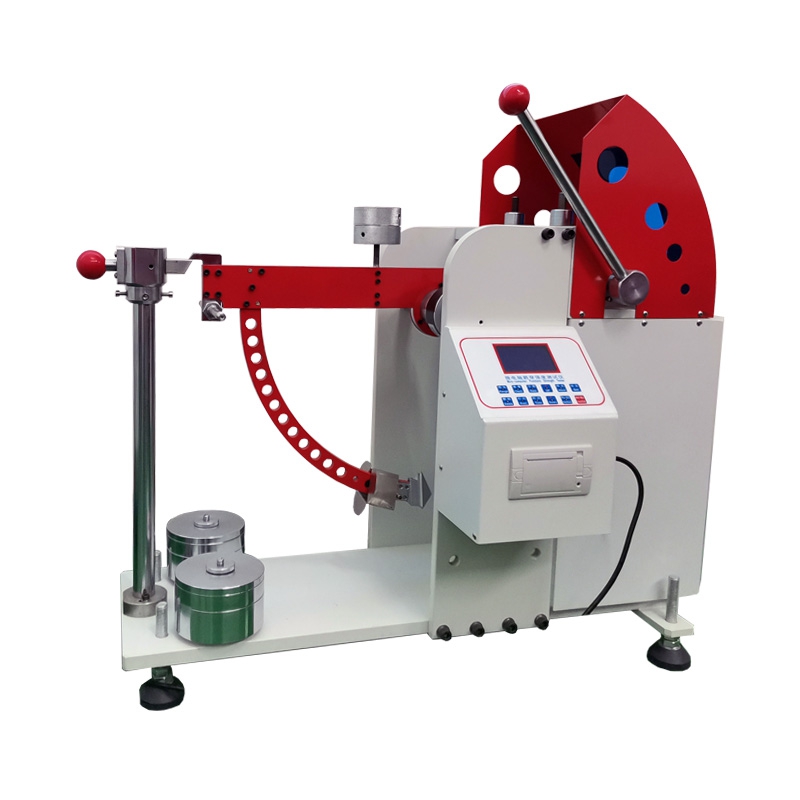

Miro-Computer Paper and Cardboard Puncture Resistance Testing Machine is a special test instrument for corrugated board anti-puncture performance (both puncture strength). The instrument has the characteristics of quick compression, automatic reset of operation handle, reliable safety protection, liquid crystal display, thermal printer, etc. It has wide application range, is cardboard, is indispensable for enterprises and departments such as cardboard, carton production, scientific research and commodity inspection. instrument. The instrument meets the following standards: The product is designed according to the relevant provisions of ISO3036 (Cardboard - Determination of puncture strength) and GB2679·7 "Determination of the puncture strength of cardboard".
Features:
1. Full computer control technology, open structure, high automation program, simple and convenient operation, safe and reliable.
2. Fully automatic measurement, intelligent judgment function, the operating system displays the measurement results in real time.
3. Automatically measure, count, print test results, and have data saving function;
4. Touch screen operating system, configure Chinese graphic menu to display operating system, easy to use;
5. High-speed micro printer, high speed printing, easy to use, low fault;
6. Mechatronics modern design concept, compact structure, beautiful appearance, easy maintenance
Technical parameter:
| Power | AC220V±10% 2A 50HZ |
| Measurement range | (1~48)J |
| Test value error | [A scale: ±0.05J; B scale: ±0.1J, C: scale ±0.2J, D scale: ±0.5J] (in the range of 20% to 80% of the upper limit of each measurement) Inside) |
| Pointer friction | <0.25J |
| Pendulum shaft friction and air resistance | >120 times (measured by the number of swings of the swing arm) |
| Corner cone characteristic size Three base length | 60mm × 60mm × 60mm, height (25 ± 0.7) mm |
| Edge fillet radius | (1.5 ± 0.1) mm |
| Working environment | temperature 5 ~ 35 ° C, relative humidity does not exceed 85% |
| Dimensions | 800 × 500 × 750 mm |
| Instrument weight | 110kg |
