Technical parameter:
|
Sample size |
25.4*25.4mm |
|
Sample holding force |
0~400N (adjustable) |
|
Impact angle |
90° |
|
Resolution |
0.001lbf/in2 |
|
Release mode |
manual release and automatic release. |
|
Measuring range |
A: (10-500) J/M2 ; B: (500~1000) J/M2 |
|
Indication error |
A file: ±1J/M2; B: ±2J/M2 |
|
Unit |
J/M2, lbf/in2 interchange |
|
Man-machine interface |
LCD display |
|
Data printing |
Thermal printer |
|
Dimension |
500mm×400mm×650mm |
|
Weight |
70KG |
|
Environmental conditions temperature |
(0~35) ℃, humidity <85% |
|
Working environment |
temperature (20±10) ℃, humidity <85% |
Product introduction:

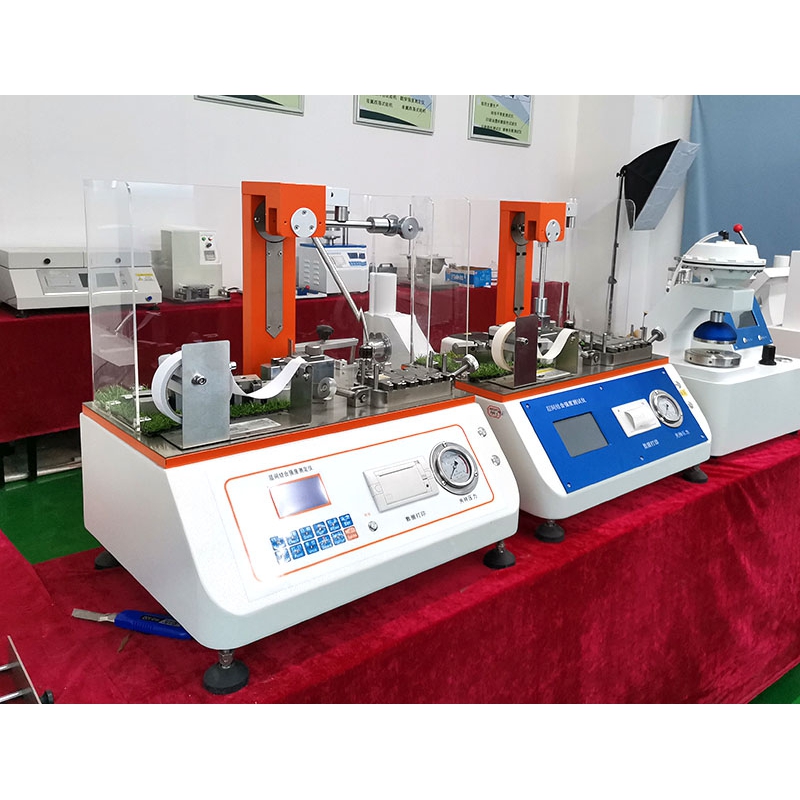

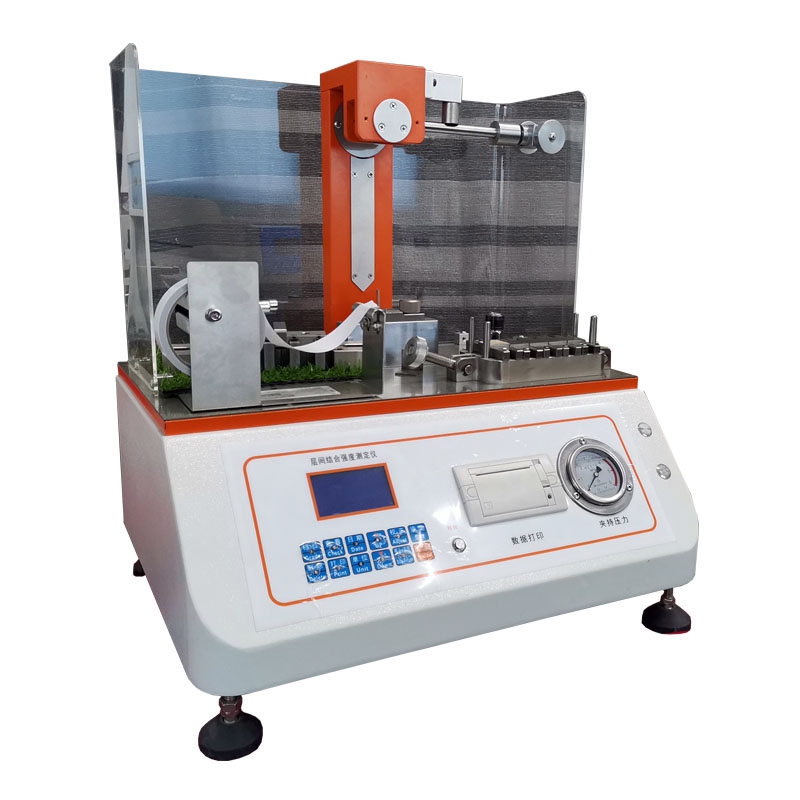

Corrugated Paper Scott Internal Bond Strength Tester (also known as interlayer peel strength tester, interlayer bond strength tester, internal bond strength tester, etc.) is mainly used to test the Z-direction tensile strength of paper and paperboard (ie, the internal bond strength or layer). Dedicated testing instrument for inter-binding strength).
Test principle:
The combination of double-sided tape-sample-double-sided tape forms a sandwich structure, and the interlayer is pressed between a metal flat anvil and an aluminum block, and the inner surface of the upper portion of the aluminum block is struck by a pendulum to flip the aluminum block, and The sample was destroyed in the Z direction, and the energy absorbed during the destruction of the sample was calculated by measuring the high position of the MAX of the swing.
Standards:
1. Determination of the bonding strength of GB/T 26203 paper and paperboard (Scott type)
2. "TAPPI T-569 internal bond strength (scott type) correction"
