Technical parameter:
| Load range | 30N, 50N, 100N, 200N(optional) |
| Accuracy | 1 grade |
| The resolution | 0.01 N |
| Test speed | 1 ~ 500 mm / min adjustable |
| The width of the sample | 0 ~ 30 mm |
| Stripping angle | 90°,180° or other angles |
| Power | 40 W |
| Power supply | AC 220 V 50 Hz |
Product introduction:

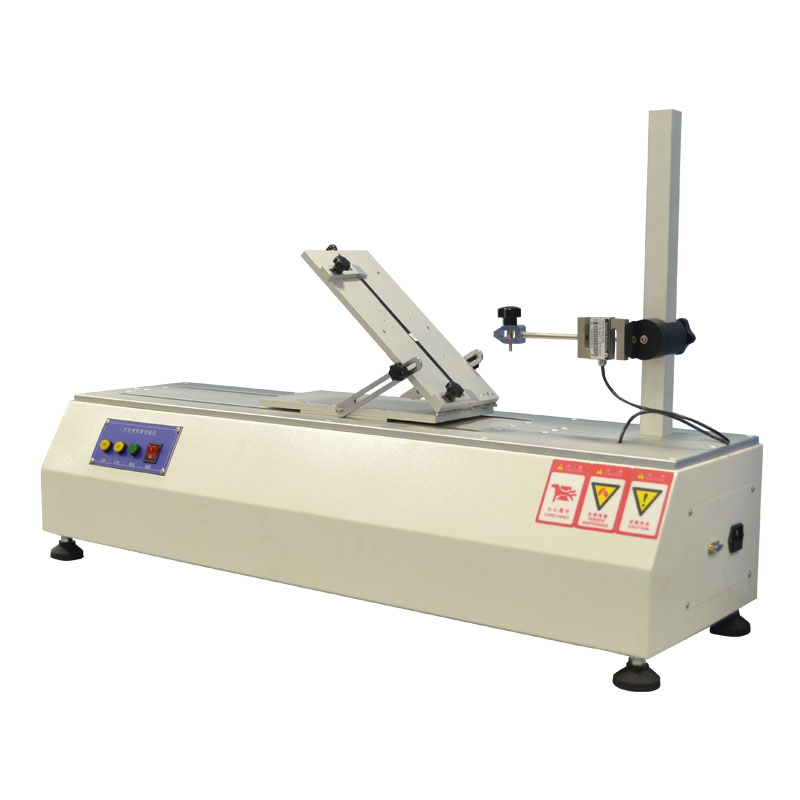

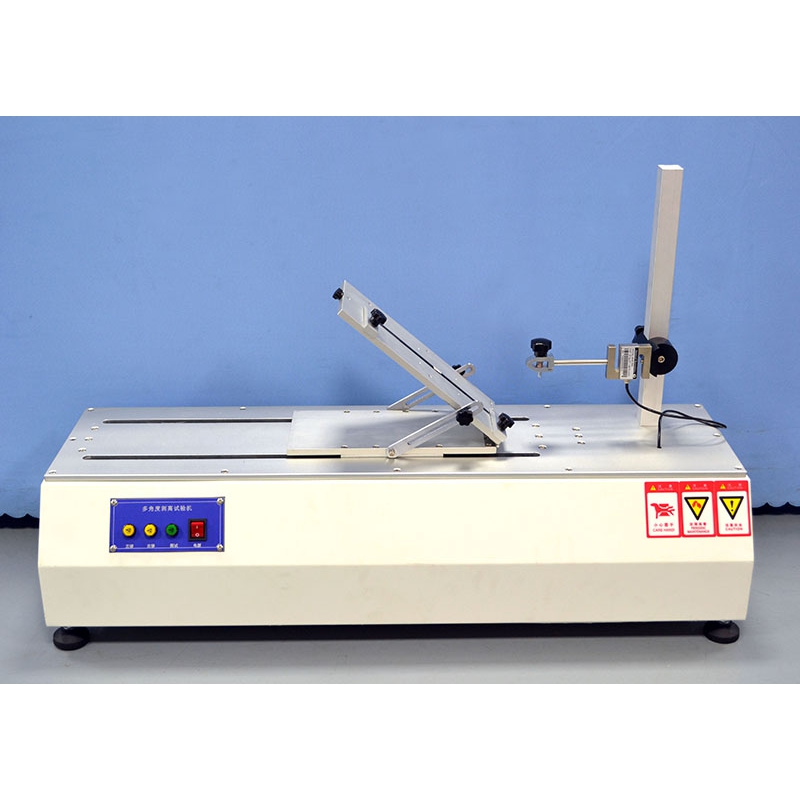

The machine is designed for 90 ° and 180 ° peel test, friction test, horizontal tensile test and other related tests. In particular, the machine has a test piece fixing plate with adjustable angle, and the height and angle of the sensor can be changed according to the needs of users. It can be used for Peel test from different angles.
Applicable industries:
High speed peel test machine is suitable for testing the tensile strength, peel strength, deformation rate, breaking force, peel force, opening force and thrust of plastic film, composite film, adhesive, adhesive tape, medical patch, protective film, release paper, rubber, artificial leather, paper fiber and other products
Standards:
YYT 0507, YYT0148, JIS-Z-0237, HGT 2406-2002
