Technical parameter:
|
Power supply |
AC220V, 50Hz |
|
Addendum arc radius |
1.50±0.1mm |
|
Tooth Valley arc radius |
2.00±0.1mm |
|
Full tooth height |
4.75±0.05mm |
|
Outer diameter of grooved wheel |
228.5 ± 0.5mm |
|
Grooved wheel thickness |
16 ± 1 mm |
|
Number of teeth |
84 |
|
Standard tooth type |
type A |
|
Working speed |
4.5r/min, error not more than ± 0.5r/min |
|
Temperature resolution |
1 ℃ |
|
Adjustable range of working temperature |
room temperature ~ 200 ℃ |
|
Adjustable range of working pressure |
49 ~ 108N, the set working pressure shall be consistent with the actual working pressure of grooved wheel, and the error shall not exceed 10% |
|
Standard heating temperature |
(175 ± 8) ℃ |
|
Overall dimension |
530mm × 400mm × 475mm |
|
weight |
55kg |
Machine summary:

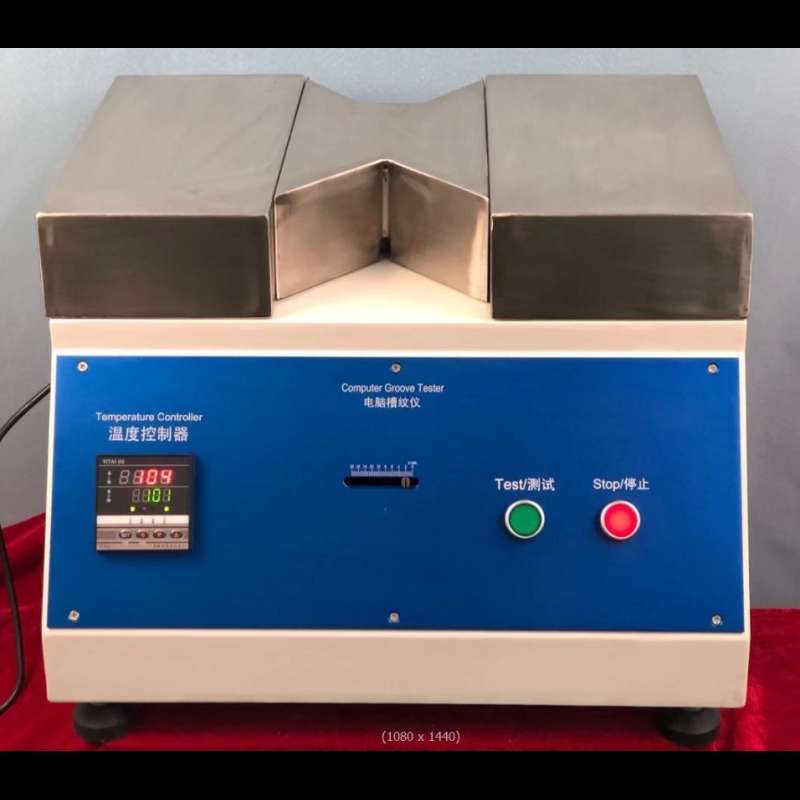

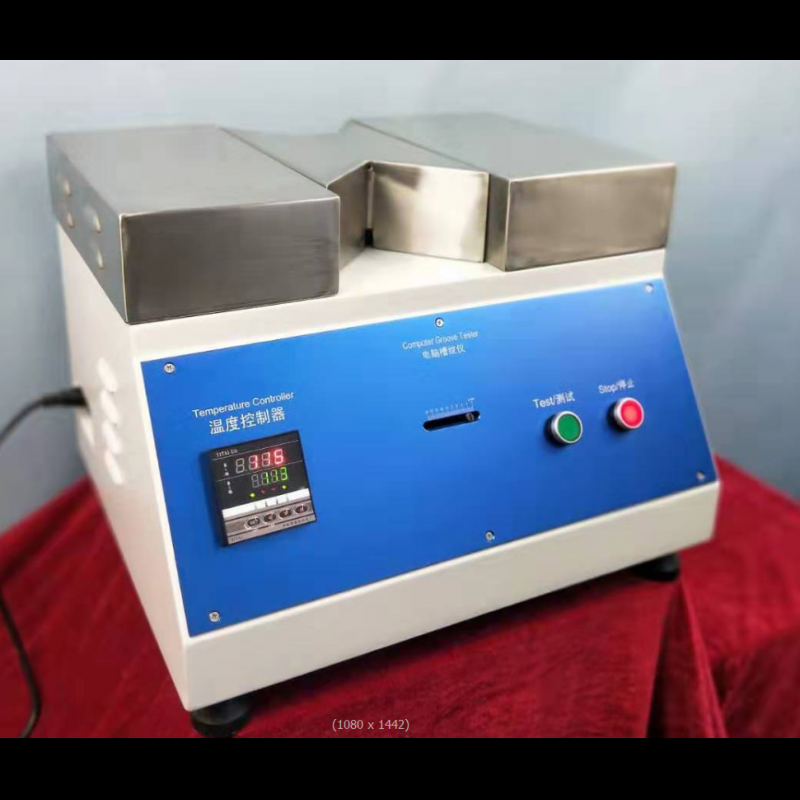

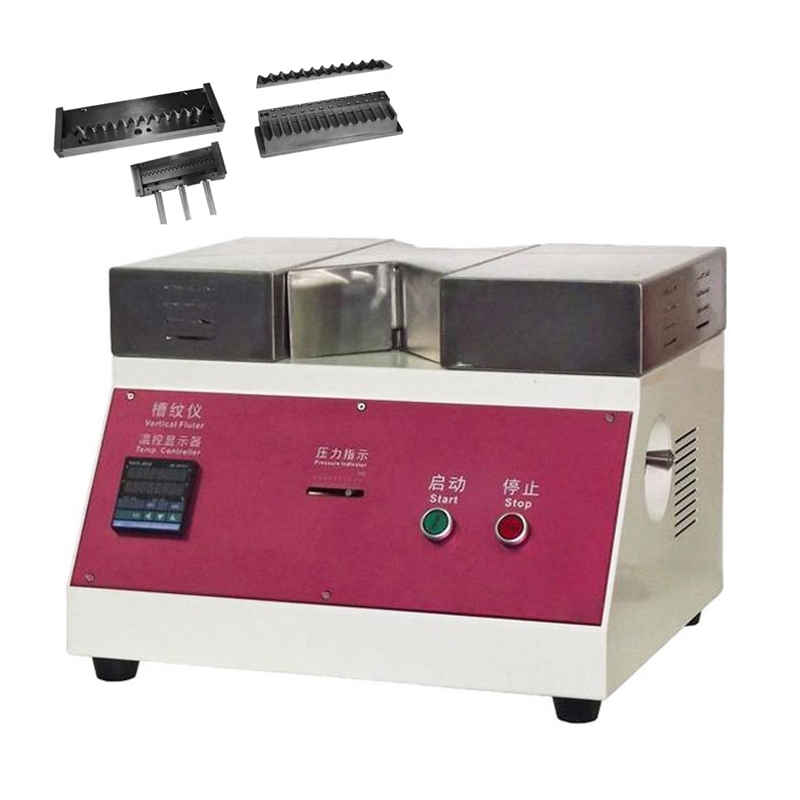

Corrugated paper Corrugator Fluter Medium Fluting Tester is also called the corrugator, which is used to press the standard corrugating waveform when measuring the flat pressing strength of the corrugated core paper, prepare samples with the corrugator flat pressing strength (CMT) and the corrugator compression strength (CCT) test accessories, and use the compression tester to measure the flat pressing strength of the core paper after corrugating. It is a special and standard sample preparation instrument, which is used together with the ring pressure sampler and ring pressure strength tester.
Meet standards:
ISO 7263 Corrugating medium-Determination of the flat crush resistance after laboratory fluting
Product features:
1. single chip microcomputer control, high-precision PID thermostat, digital display of actual temperature and set temperature, overtemperature safety protection device;
2. with automatic memory, parameter setting and adjustment functions, precision gear transmission mechanism
