APPLICATIONS

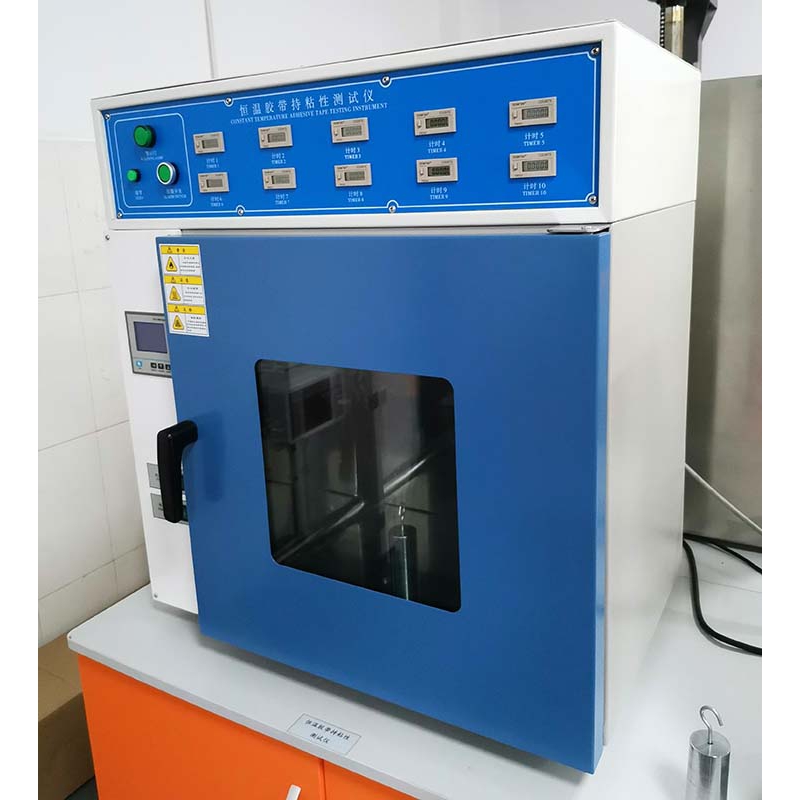

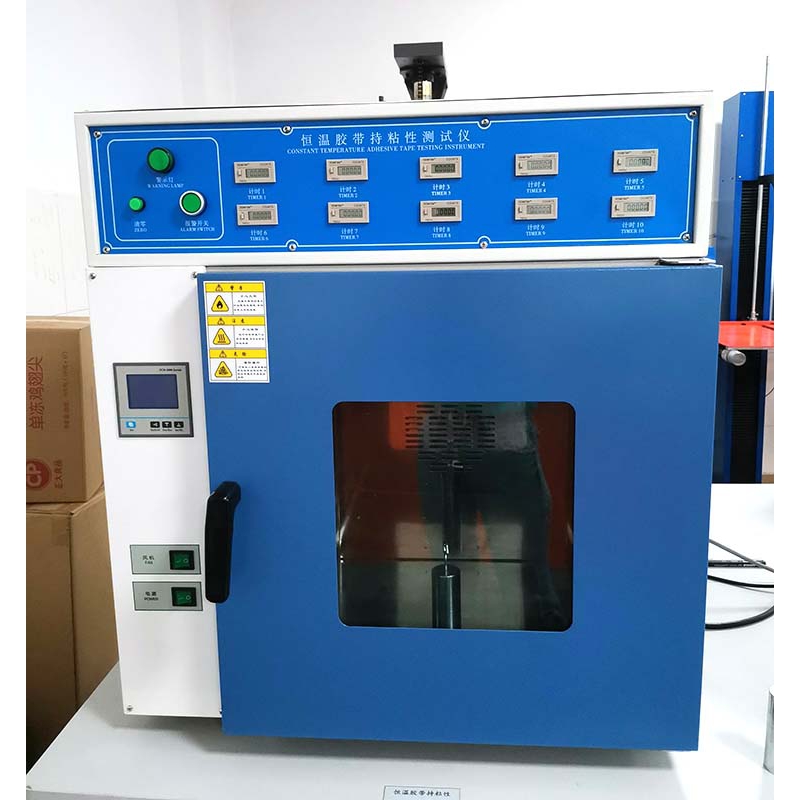

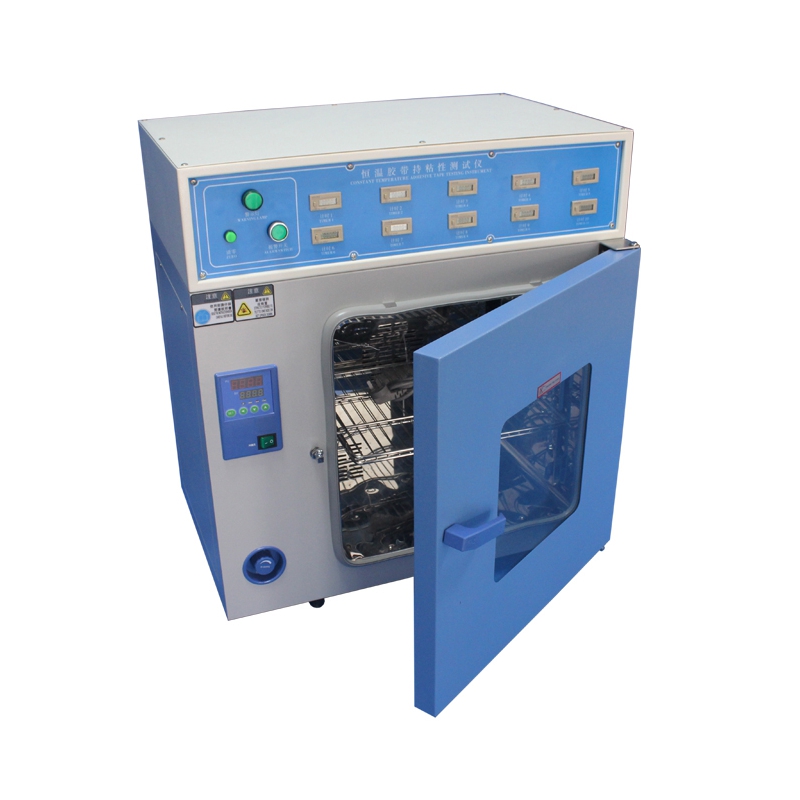

Constant Temperature Adhesive Tape Holding Force Test Equipment is used under the environment of high temperature adhesive tape with adhesive test, simulation of adhesive tape in high temperature environment, under the specified load automatic timing belt can keep time, to confirm the validity, tape adhesion when tape, since the steel plate fall the timer automatically retention test time, used to assess the durability of the tape in the environment of high temperature, testing after falling off all equipment has automatic alarm functions, equipped with all the timer button reset device, also has a timer single reset device.
PARAMETER
Weight |
1kg, 10 pieces (or specified) |
Chronometer |
10 sets, 99999.9 hours |
Temperature control |
room temperature to 250 ℃ |
Temperature display |
0.1 ℃ |
Control accuracy |
±3 ℃ |
Heating mode |
hot air circulation |
Material |
Internal SUS #304 stainless steel plate, external high-grade steel plate paint treatment |
Test board |
60 (L) mm x 40mm (B) x 1.5 mm (D) |
Number of stations | 6 [number of stations such as 6 and 10 are optional] |
Machine size | 850 mm*550 mm*710 mm |
Machine weight |
75 kg |
Power source | 220V 50Hz |
