Paper and Packaging Test Machine

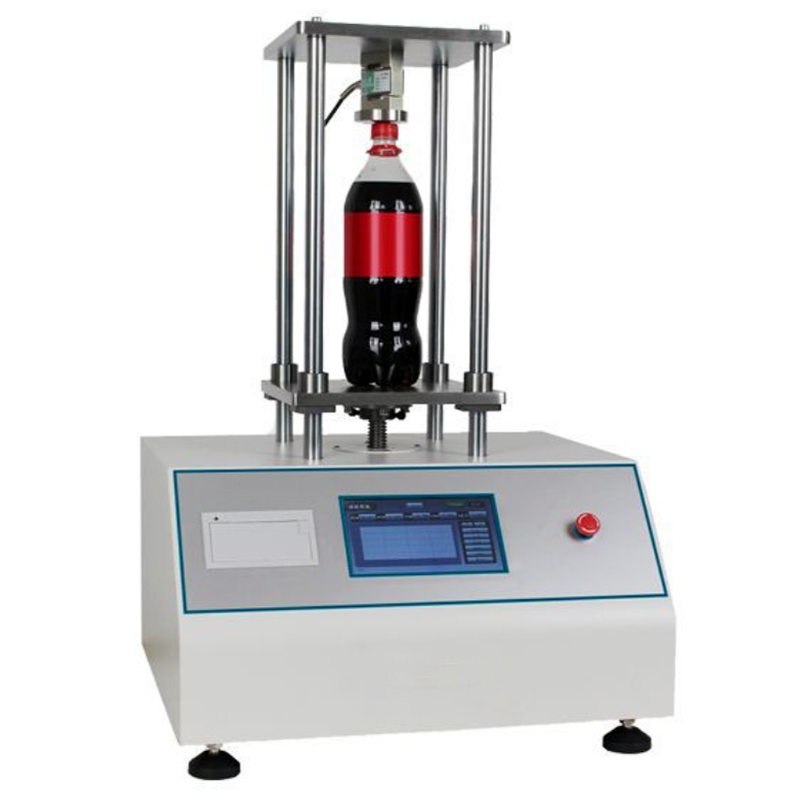

The PET bottle vertical pressure tester is used to test the top pressure strength, top pressure deformation, bottle body flat pressure, and side pressure strength of PET bottles or metal cans. The test results can serve as an important basis for controlling and improving product quality. The instrument meets multiple domestic and international testing standards, and the optimized design of the instrument makes operation and maintenance easier.

Product Features:

1. Testing modes can be implemented according to user needs (up to 4 segmented pressures and holding times can be set) to meet various testing needs.

2. The instrument adopts all stainless steel and aluminum design.

3. Intelligent configurations such as limit protection, overload protection, automatic return, and power failure memory ensure user operation safety.

4. The experimental speed can achieve 1~500mm/min stepless speed change.

5. The instrument has a 7-inch touch screen control.

6. The screen can achieve dynamic display, including maximum pressure value, real-time pressure value, holding time, platform height, platform running direction, screen display parameters, date and time, product name, operator, batch number, sample number, and mode setting.

7. The instrument can store 10 operators and 30 product information, with graded password protection function.

8. USB data port output with "Quality testing" data analysis software

Testing Principles:

Clamp the plastic bottle between the two clamps of the vertical pressure tester fixture, and the two clamps move relative. Through the force sensor located on the moving clamp and the built-in displacement sensor of the machine, the force and displacement changes during the experimental process are collected, and the compressive strength performance index of the sample is calculated.

Testing Applications:

Used to test the top pressure strength, top pressure deformation, bottle body flat pressure, and side pressure strength of PET bottles or metal cans.

Instrument parameters:
