Paper and Packaging Test Machine

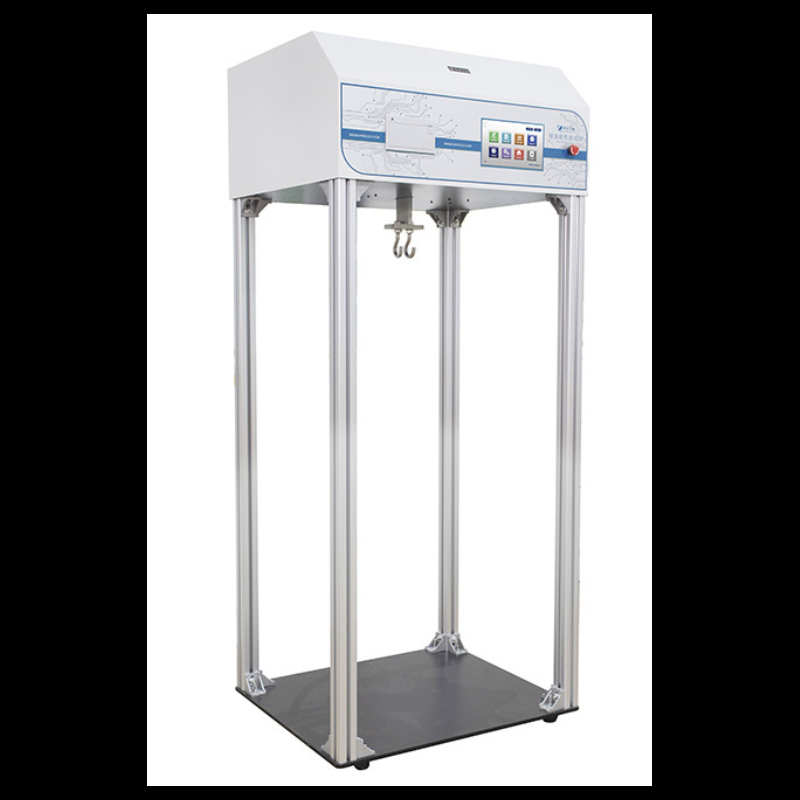

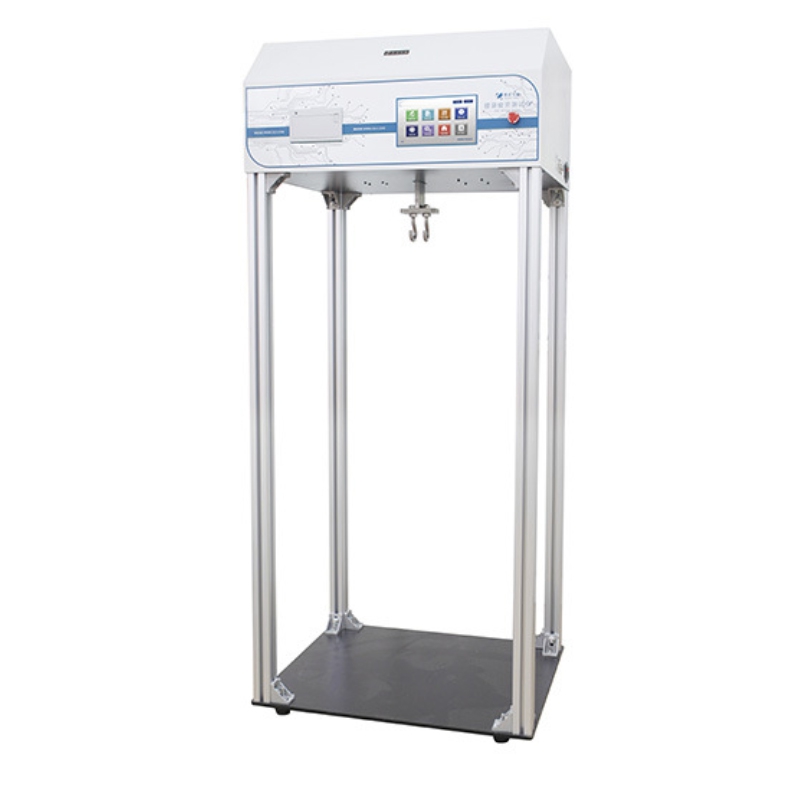

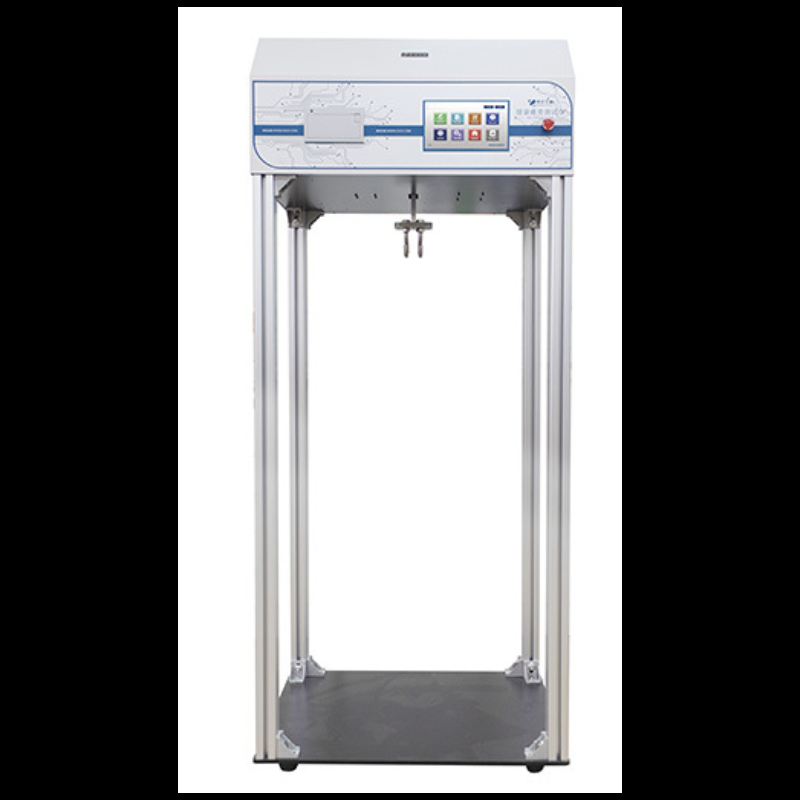

The fully automatic bag lifting fatigue testing machine is specialized for conducting up and down vibration fatigue tests on retail bags and plastic shopping bags. The bag fatigue testing machine has multiple test modes to choose from, including test frequency, test time, and bag weight. During the test process, after the sample breaks, the instrument can automatically judge the end of the test, automatically stop the machine, and print the test results through the built-in micro printer. It is widely used in quality inspection machinery and bag manufacturers.

Product Features:

1. Using well-known motors as power sources and high-precision force value sensors as testing methods, equipped with one click operation and fully automatic testing.

2. 7-inch touch color LCD screen, microcomputer controlled.

3. The four column structure is made of high-quality alloy materials.

4. The system is equipped with a micro printer.

5. Selection of excellent components, low noise, and long service life.

6. Intuitive operation interface, which can be remotely upgraded and maintained.

7. Multi level user permission management, password login, meeting user needs, capable of storing 500 sets of test data.

Testing Principles:

Fill three-quarters of the bag with a particle mixture equivalent to twice the nominal internal mass, and then hang it on a fatigue testing machine. Set the number of times or time for lifting the bag for fatigue testing. Test the sample through vibration fatigue testing, and observe if there is any damage at the lifting bag after completion.

Testing Applications:

1. Used for fatigue testing of paper tote bags, plastic tote bags, and shopping bags

2. Fatigue strength testing of disposable non-woven handbag and related products

3. Testing and testing the fatigue toughness of plastic products such as garbage bags and environmentally friendly bags

4. Bag fatigue test for plastic bags such as supermarket shopping bags and vest bags

Instrument parameters:
