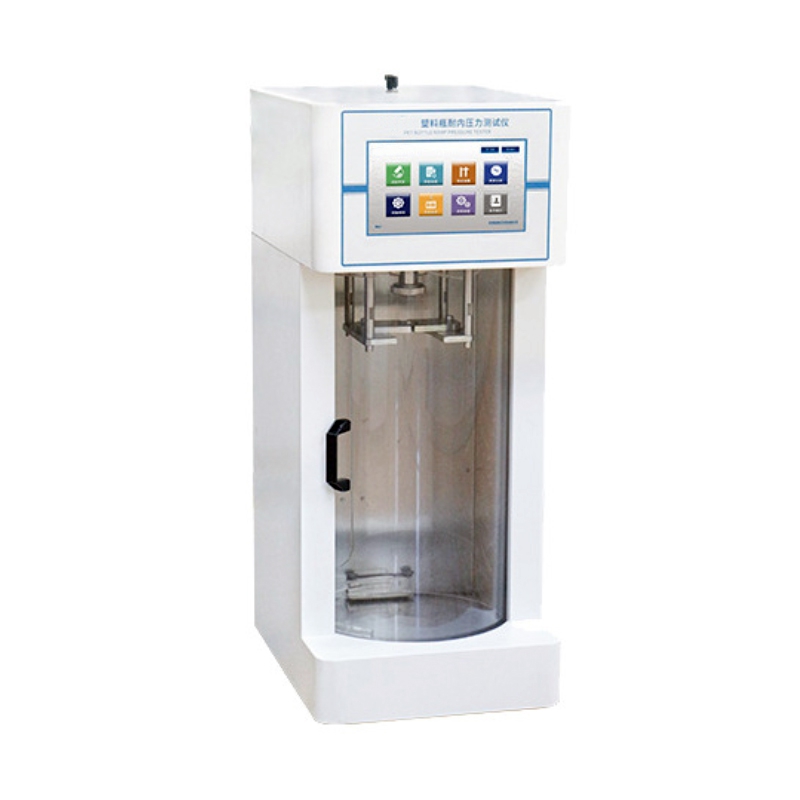

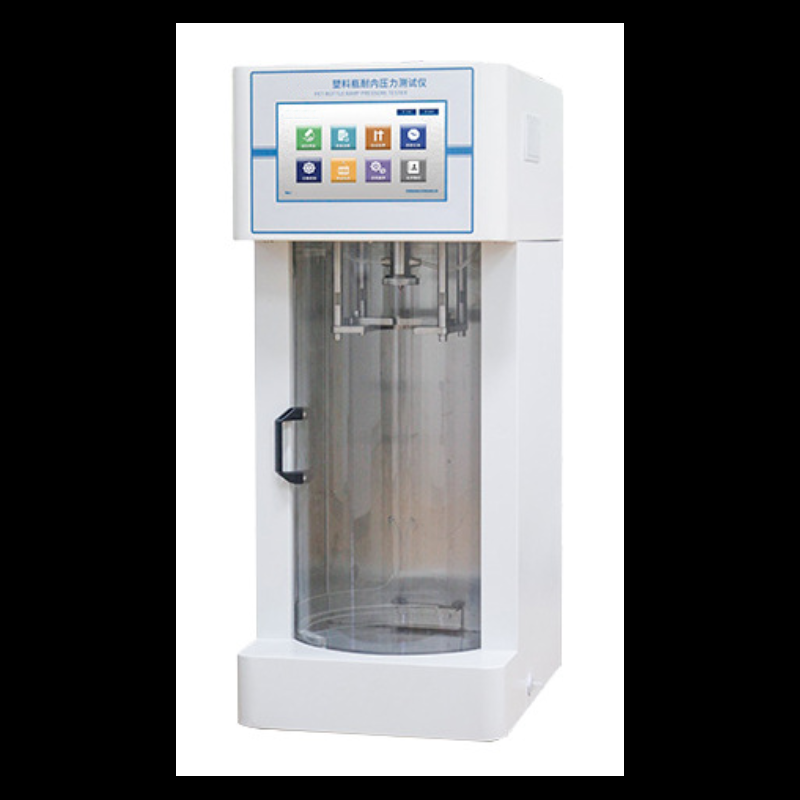

Paper and Packaging Test Machine

Applicable to various carbonated beverage bottles and plastic bottles for internal pressure maintenance and burst testing. The product is in accordance with the provisions of the QB/T (Poly (p-phenyleneglycol)) PET carbonated beverage bottle standard for internal pressure test items. The instrument automatically displays the pressure changes throughout the entire experimental process, which can meet the internal pressure test requirements of plastic bottles of various capacities.

Product Features:

1. 10 inch touch screen operation, user-friendly design

2. One click operation during the experimental process, improving the efficiency of intelligent testing

3. High definition touch screen display of experimental data, automatic statistics and printing of results

4. Testing supports dual modes of pressure maintaining and crushing, compatible with diversity

5. The instrument is equipped with a built-in SMC booster pump, with a maximum pressure of up to 1.6MPa

6. Support for PET bottle cap automatic puncture positive pressure method

7. The instrument adopts a rotating door opening method, which is safe and fast

8. Standard USB interface configuration, computer software support, results displayed in multiple units

Testing standards:

This instrument meets multiple national standards: GB/T 10440, GB/T 18454, GB/T 19741, GB/T 17447, GB/T 17876, GB/T 10004, BB/T 0025, QB/T 1868, QB/T1871, ISO 11607-2, ASTM F1140, ASTM F2054, ISO11607, YBB 00252005, YBB 001620026

Testing Principles:

By injecting a certain pressure gas into a plastic beverage bottle sample and holding it for a certain time, the pressure tester automatically determines whether the sample is sealed properly or the maximum pressure value during explosion.

Testing Applications:

1. Suitable for various carbonated beverage bottles, plastic bottles for internal pressure retention and burst testing

2. Suitable for PET bottle cap automatic puncture positive pressure method

Instrument parameters:
