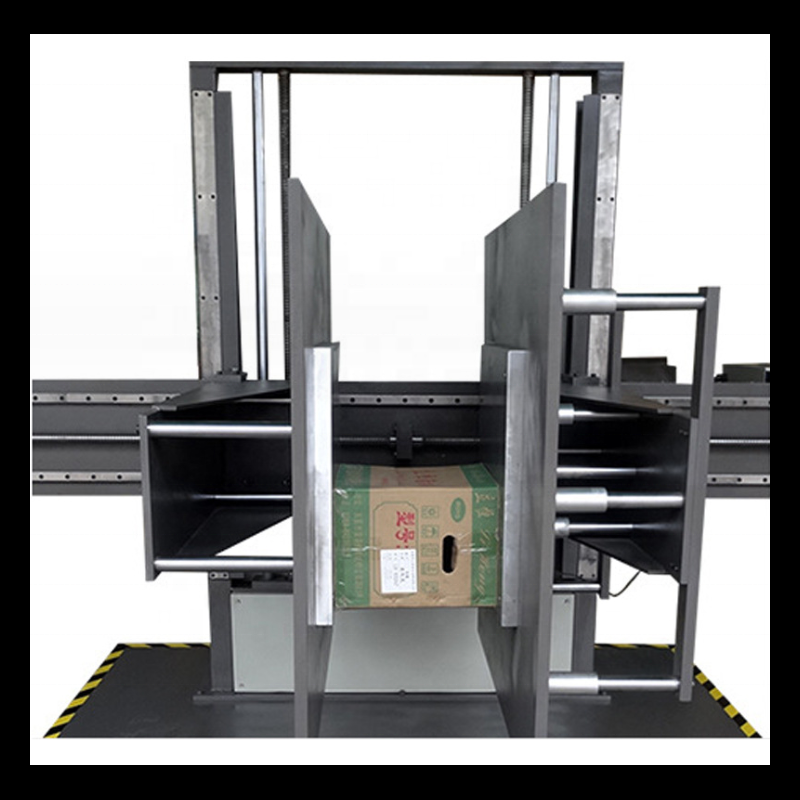

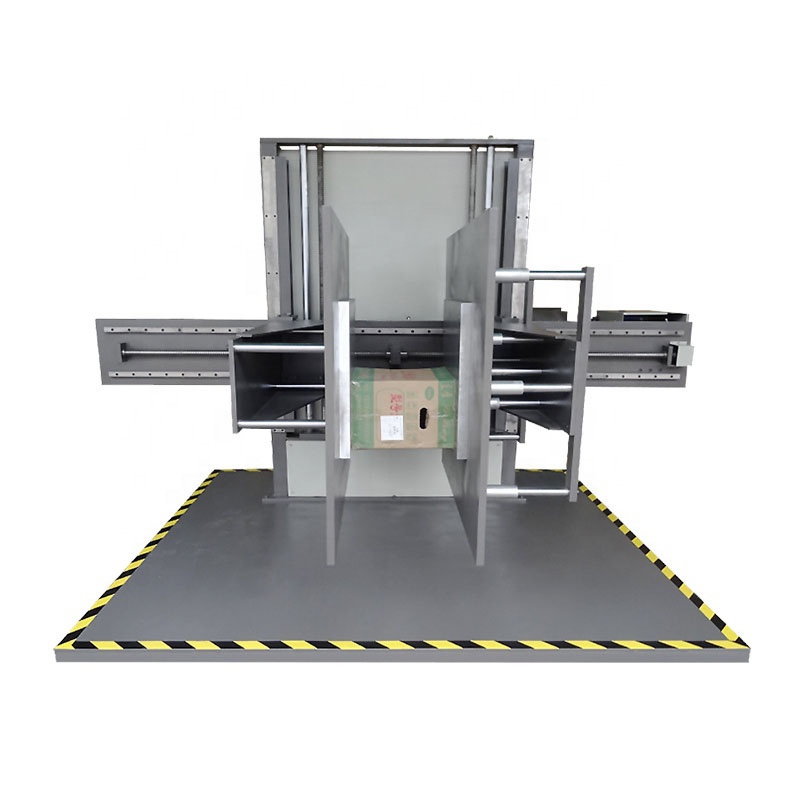

Paper Carton Clamping Force Tester is mainly designed to evaluate the damage of products by assessing their ability to withstand the pressure from vehicle lead during loading and unloading in warehouses, trucks, trains, etc. after packaging.
Applicable to all product packaging testing and verification. Mainly testing the deformation of product packaging under horizontal pressure during transportation and storage.
Technical parameters:
|
Sample shape |
parallelepiped transport packaging |
|
Maximum test weight |
500kg/1000kg/2000kg/3000kg |
|
Clamping pressure |
According to the handling diagram on the test sample, a pressure of 400-3000Lb (adjustable) can be applied on the corresponding surface |
|
Clamping board surface size |
1100*1100mm (L*W) can be customized |
|
Test space size |
1000X 1000X1000mm (L*W*H) can be customized |
|
Height adjustment of clamping plate |
0~1000mm, adjustable |
|
Lifting speed |
10~500mm/mi adjustable |
|
Clamping speed |
10~50mm/min adjustable |
|
Splint expansion width |
200-2000mm |
|
Transmission method |
Panasonic servo motor |
|
Bottom plate size |
2000 * 1900mm |
|
Strength accuracy |
National standard level 1.6 |
|
Power supply |
AC220V 50HZ |
