Petroleum Test Machine

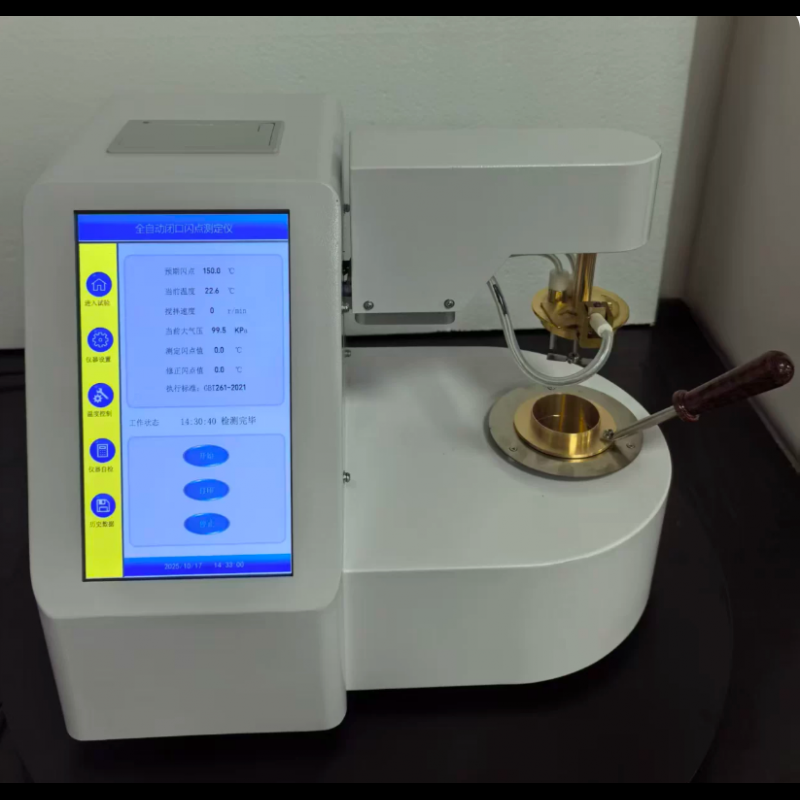

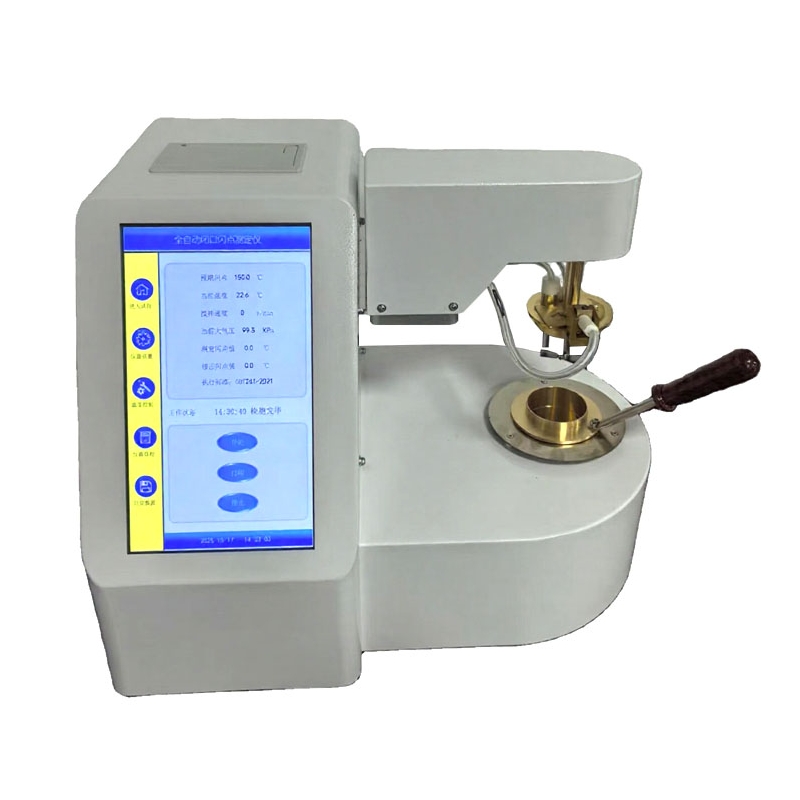

Fully Automatic Close Cup Flash Point Tester

Summary:

The instrument is mainly used for the determination of the closed flash point value of petroleum products. The instrument adopts an Android system, a 10 inch industrial touch screen control, and free switching between Chinese and English, making human-computer interaction more convenient; The instrument has a power-off storage function; The instrument has functions such as automatic ignition, display, capturing flash point and printing results, and automatic cooling; The instrument has the advantages of accurate measurement, good repeatability, stable and reliable performance, and simple operation. Widely used in departments such as power, petroleum, chemical, commercial inspection, and scientific research, it meets the requirements of GB/T 261-2021 and ASTM D93 standard methods.

The instrument adopts a switching interface between Chinese and English, with an Android operating system. It can be remotely operated and controlled by connecting to mobile app software, with real-time synchronization. Data can be uploaded to the cloud platform for computer data query, browsing, analysis, statistics, etc. The instrument is equipped with RS232, 485 serial ports, and USB interfaces, which can expand PC communication.

Product configuration:

Instrument Features:

1. The monitor adopts an imported 10.0-inch true color TFT-LCD display screen; The keyboard adopts a human body sensing touch screen. The fully Chinese operating interface displays delicate, intuitive, and elegant graphics, making it easy to control and touch freely.

2. Historical data storage adopts NVM data storage, which can store 20000 historical data. The data can be saved for 10 years without loss, and the stored data cannot be changed.

3. The printer adopts a micro embedded thermal printer, which prints quieter, faster, and clearer.

4. The temperature measurement and control adopts the original imported PT100 platinum resistance temperature sensor, high-precision AD converter, excellent linearization mathematical model, and unique control algorithm, making the temperature measurement and control faster, more accurate, and stable.

5. The ignition adopts electronic flame direct ignition, which is completely the same as gas flame ignition, safe, convenient, fast, reliable, and interference free.

6. Flash fire detection adopts high-frequency ion ring flame detection technology, which enables rapid and accurate capture of sample flash fire instantly, avoiding false detection and missed detection.

7. The atmospheric pressure measurement adopts a fully digital structure atmospheric pressure sensor imported from Germany, which measures the local atmospheric pressure in real time and automatically corrects the impact of atmospheric pressure changes on the measurement data.

8. Automatically complete heating, detection, calculation, printing and other operations.

9. The instrument is heated according to the heating curve specified in ASTM D93 and GB/T261-2021 methods. When the temperature approaches the flash point value, it automatically ignites. When the flash point occurs, the instrument automatically locks and displays the printed result, while automatically cooling the heater.
